Tilting and swivelling TV wall mount, 37–70 inches, up to 50 kg
- Space-saving construction.
- Suitable for 37–70-inch monitors.
- Maximum load capacity: 50 kg.
- Mounting type: wall mounting.

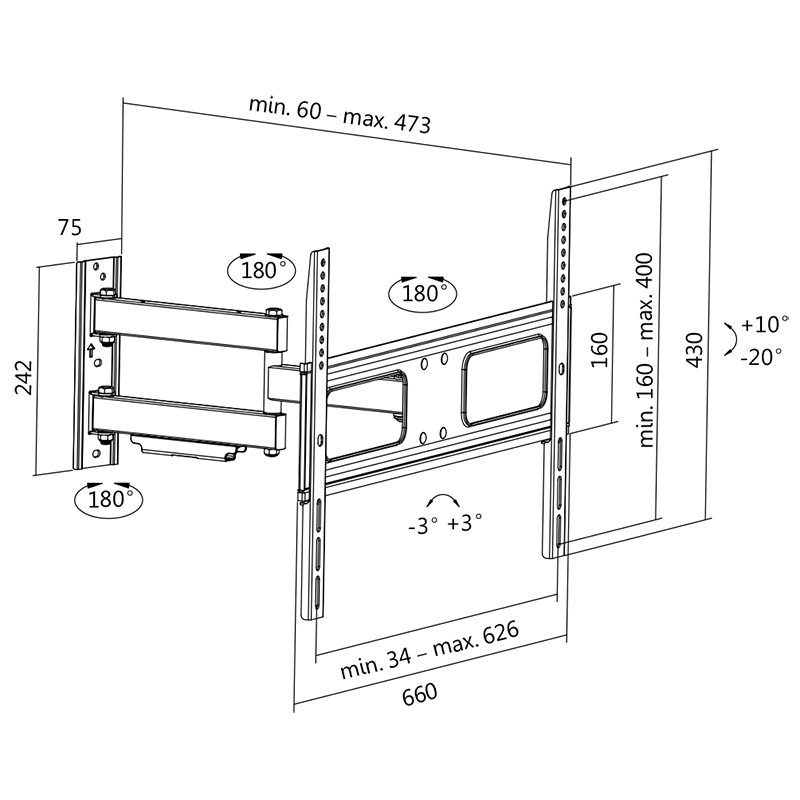

- Tilt: -20°/+10°; swivel: -90°/+90°; front-panel level adjustment: -3°/+3°.
- VESA compatibility: 200x200, 400x200, 300x300, 400x400, 600x400.
- Wall-to-TV-rear distance: 60–473 mm.
- Front-panel dimensions (W × H): 660x160 mm.
- Cable management elegantly hides all cables connected to the monitor.
- Mounting accessories included.
- Colour: black.
- Supported screen size: 37–70 inches.
- Tilt: -20°/+10°.
- Swivel: -90°/+90°.
- Front-panel level adjustment: -3°/+3°.
- Wall distance: 60–473 mm.
- Product size: 660 x 430 x 473 mm.
BP0019
BP0019 — A maximum of flexibility is ensured with the fully movable screen mounts. Depending on your needs, you can now pan and tilt the monitor. Ideal for office environments.
Applications
The mount is intended for 37–70-inch screens weighing up to 50 kg and compatible with one of the supported VESA patterns. The product is designed for installation on wood stud walls, solid concrete walls or brick walls. Before installation, the supporting surface must safely support the combined weight of the equipment and all attached hardware and components. The product is intended for indoor use only.
