What tilt, swivel and front panel rotation ranges does the mount have?

Tilt: -90°/+90°, swivel: -90°/+90°, front panel rotatable -90°/+90°

What VESA compatibility does the mount support?

VESA compatibility: 75x75, 100x100

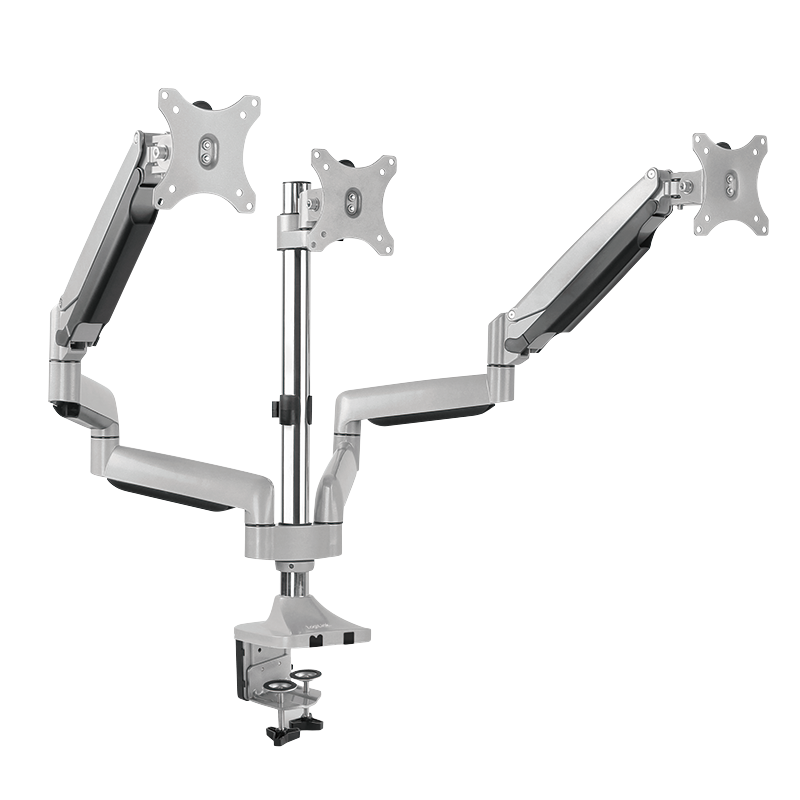

Triple monitor mount for 13–32 inch monitors, up to 7 kg per arm

Name: Triple monitor mount for 13–32 inch monitors, up to 7 kg per arm
Brand: LogiLink
SKU: BP0052

Brand:LogiLink

Part NoBP0052

EAN:4052792048001

PU:2

Suitable for 13–32 inch monitors.
Number of monitors: 3.
Mounting type: table clamp or grommet mounting.
Weight capacity: up to 7 kg per arm.

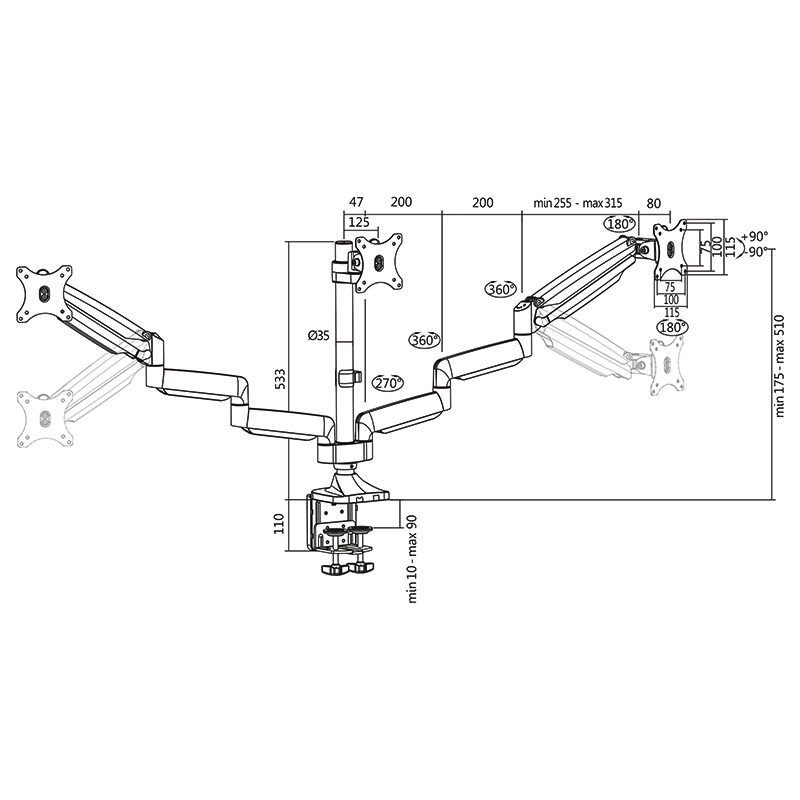

Maximum arm length: 762 mm per arm.
Tilt: -90°/+90°; swivel: -90°/+90°; front panel rotation: -90°/+90°.
Front panel dimensions (W × H): 115 × 115 mm.
VESA compatibility: 75 × 75, 100 × 100.
Pole height: 533 mm; pole diameter: 35 mm.
With gas spring.
Aluminium design.
Cable management hides cables connected to the monitor.
Mounting accessories included.
Colour: silver.

Description

BP0052

BP0052 — Attach your TV and computer monitors directly onto the desk. In this way, you can use your screens with full freedom of movement and tilt, swivel or rotate them as you like.

Applications

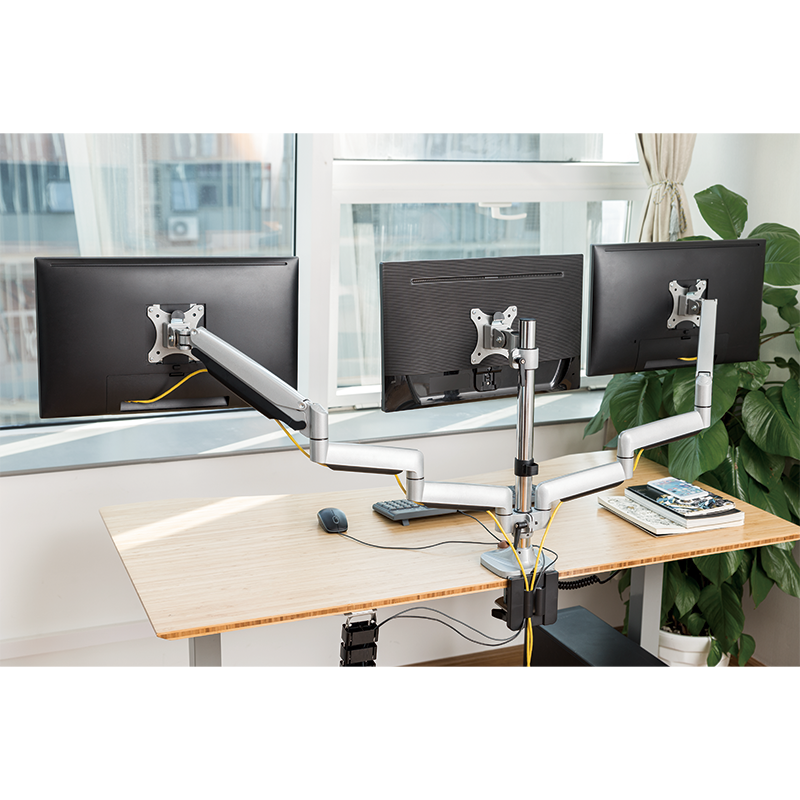

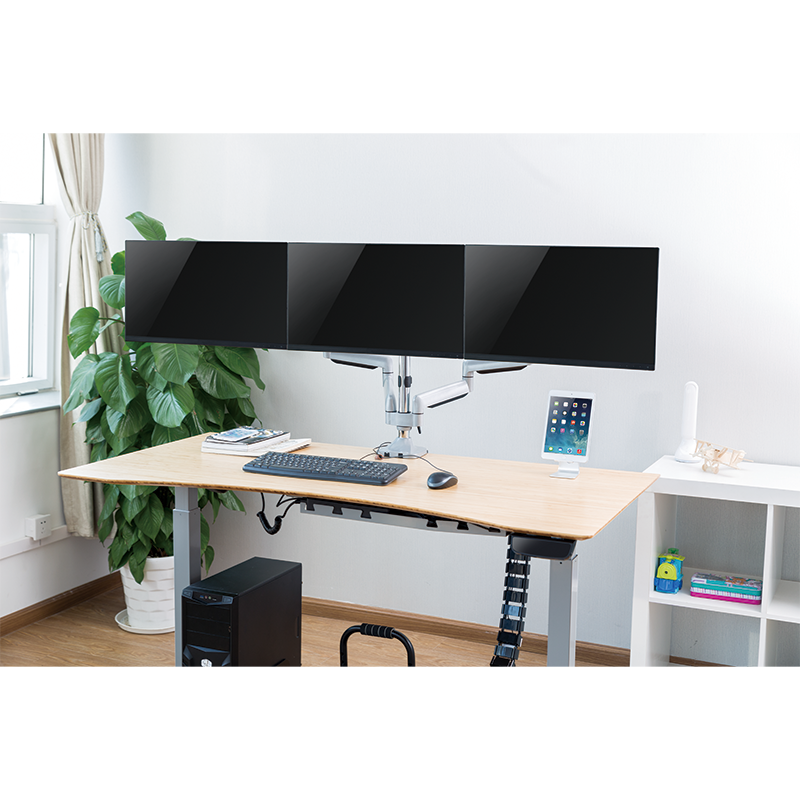

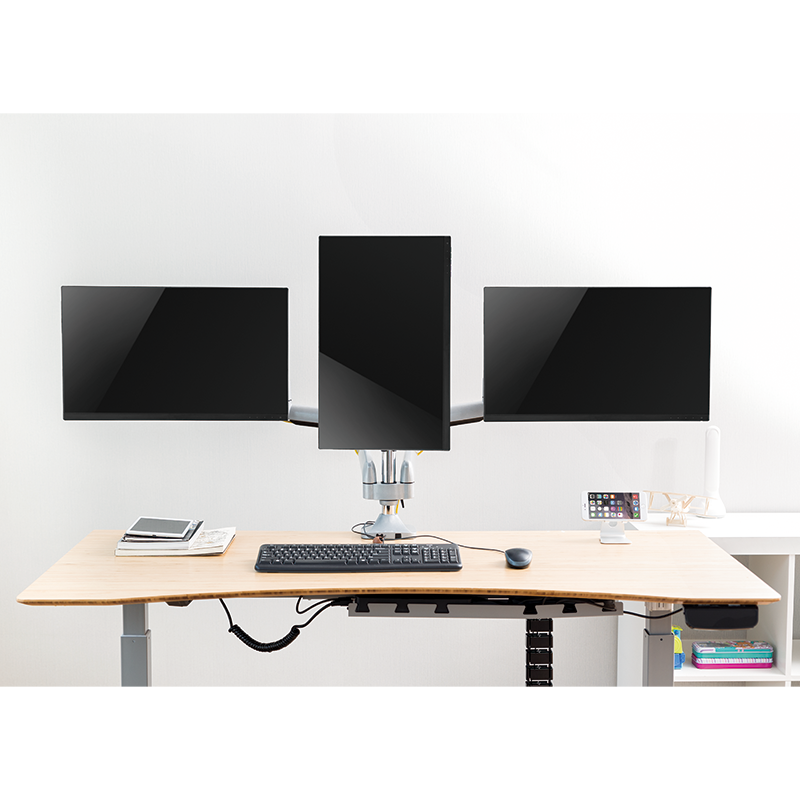

The mount is intended for attaching three 13–32 inch monitors directly to a desk. Two mounting methods are available: a table clamp or grommet mounting. Selection should take into account the up to 7 kg capacity per arm and VESA 75 × 75 or 100 × 100 compatibility.
