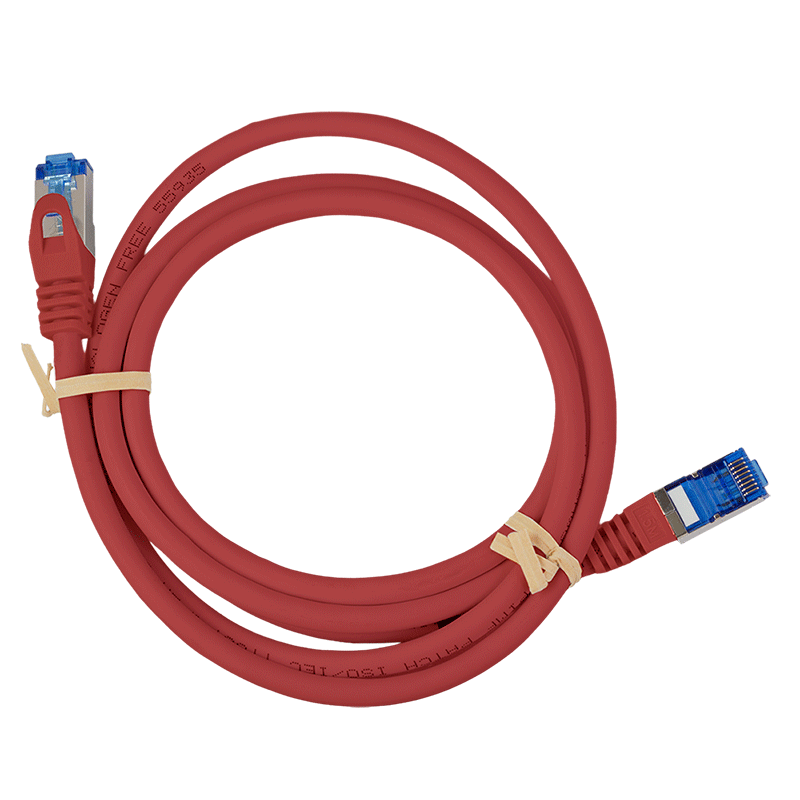

Ultraflex Cat.6A S/FTP patch cable, red, 5 m
Brand:LogiLink
Part NoC6A074S
EAN:4052792056082
PU:50
- Shielded Cat.6A RJ45 plugs with Cat.7 S/FTP raw cable.
- Flexible and soft cable with a small bending radius.
- Suitable for 10 Gigabit Ethernet, PoE, PoE+ and PoE++.
- Complies with Cat.6A ISO11801 Channel Class EA.
- GHMT tested and certified.
- 4x2x 26/7 AWG bare copper wire.
- Low smoke in accordance with IEC 61034.
- Halogen-free in accordance with IEC 60754-2.
- Red colour, similar to RAL 3018.
- Cable category: Cat.6A
- Shielding type: S/FTP
- Connectors: shielded Cat.6A RJ45
- Raw cable: Cat.7 S/FTP
- Maximum data transfer: up to 10 Gigabit Ethernet
- Transfer frequency: up to 500 MHz
- Supported power delivery: PoE, PoE+, PoE++
- Compliance: Cat.6A ISO11801 Channel Class EA
- Conductor construction: 4x2x 26/7 AWG, bare copper
- Conductor shielding: in pairs
- Overall shield: metal braid
- Jacket material: halogen-free
- Jacket property: flame retardant
- Low smoke: IEC 61034
- Halogen-free: IEC 60754-2
- Colour: red, similar to RAL 3018
C6A074S

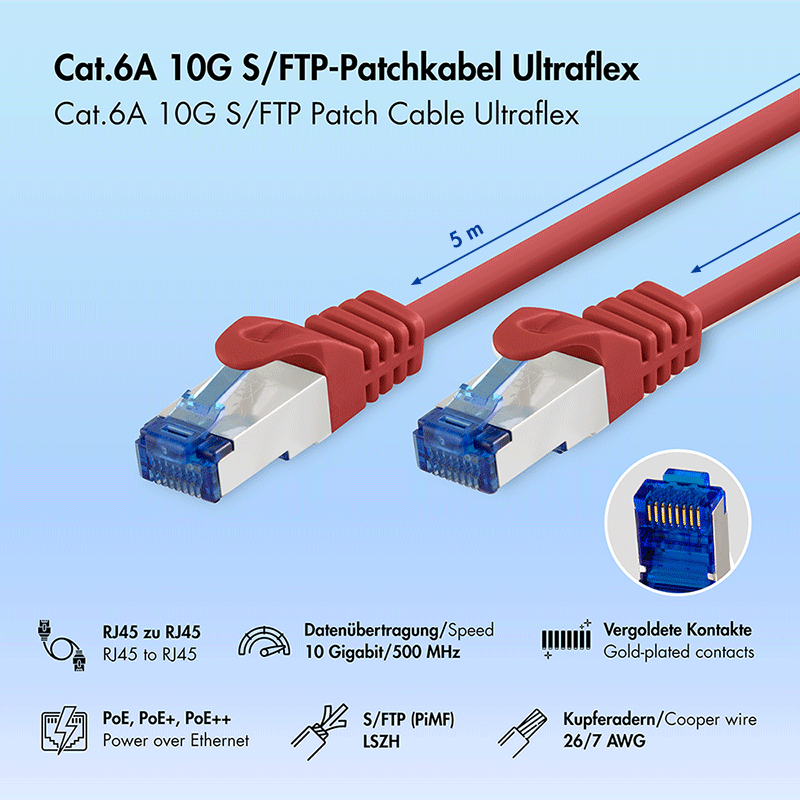

C6A074S — The certified LogiLink Cat.6A patch cable is ideal for data transfers up to 10 Gigabit Ethernet and transfer frequencies up to 500 MHz. The jacket is halogen-free and flame retardant, the copper wires are shielded in pairs, with an overall metall braid shield. The shielded RJ45 plugs come with an overmoulded slim strain relief and snagless design.
Applications
The cable is suitable for 10 Gigabit Ethernet, PoE, PoE+ and PoE++.
