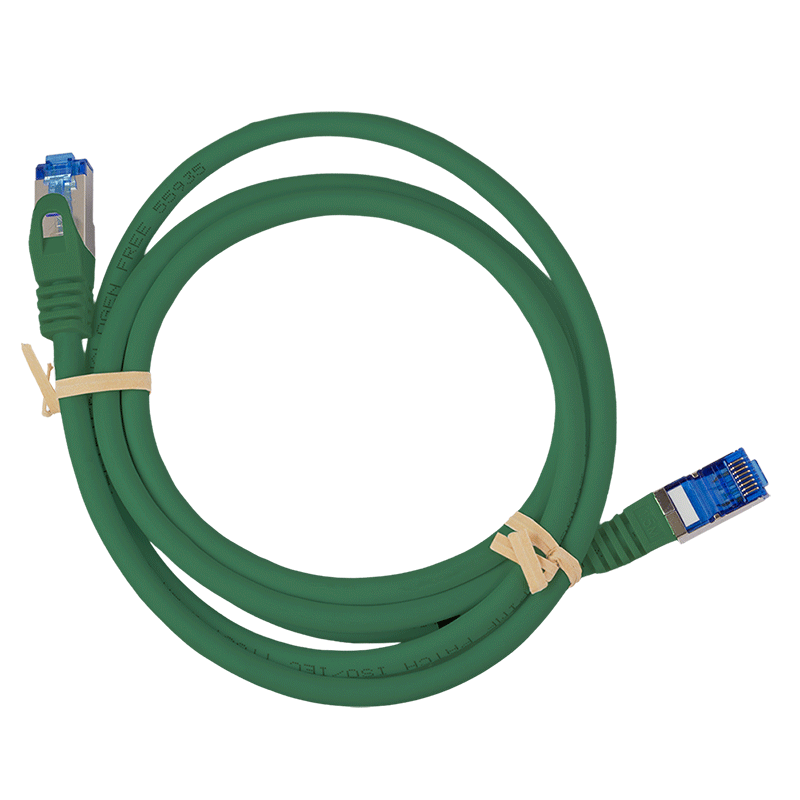

Ultraflex Cat.6A S/FTP patch cable, green, 15 m
Brand:LogiLink
Part NoC6A105S
EAN:4052792056228
PU:20
- Shielded Cat.6A RJ45 plugs with Cat.7 S/FTP raw cable.
- Soft and flexible cable construction with a small bending radius.
- Suitable for 10 Gigabit Ethernet, PoE, PoE+ and PoE++.
- Complies with Cat.6A ISO11801 Channel Class EA.
- GHMT tested and certified.
- 4x2x26/7AWG bare copper wire.
- Low smoke in accordance with IEC 61034.
- Halogen-free in accordance with IEC 60754-2.
- Colour: green, similar to RAL 6024.
- Halogen-free and flame-retardant jacket.
- Copper wires shielded in pairs with an overall metal braid shield.
- Shielded RJ45 plugs with an overmoulded slim strain relief and snagless design.
- Category: Cat.6A
- Shielding type: S/FTP
- Maximum data transfer: up to 10 Gigabit Ethernet
- Transfer frequency: up to 500 MHz
- Connectors: shielded Cat.6A RJ45
- Raw cable: Cat.7 S/FTP
- Wire construction: 4x2x26/7AWG, bare copper
- Low-smoke standard: IEC 61034
- Halogen-free standard: IEC 60754-2
- Compliance: Cat.6A ISO11801 Channel Class EA
C6A105S

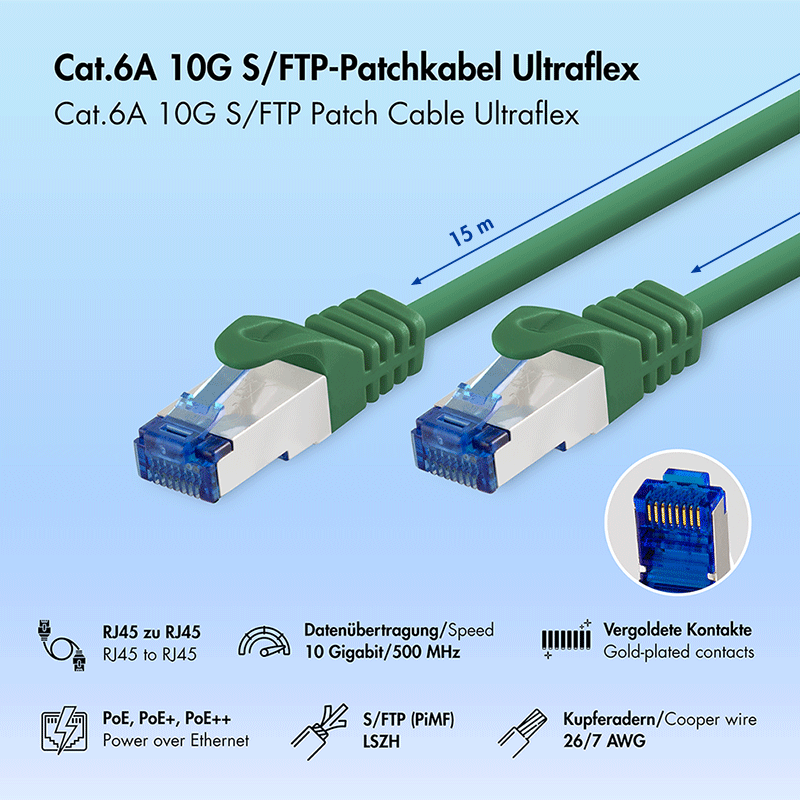

C6A105S — The certified LogiLink Cat.6A patch cable is ideal for data transfers up to 10 Gigabit Ethernet and transfer frequencies up to 500 MHz. The jacket is halogen-free and flame retardant, the copper wires are shielded in pairs, with an overall metall braid shield. The shielded RJ45 plugs come with an overmoulded slim strain relief and snagless design.
Applications
The cable is suitable for 10 Gigabit Ethernet, PoE, PoE+ and PoE++. It supports data transfers up to 10 Gigabit Ethernet and transfer frequencies up to 500 MHz.
