HDMI extender set over LAN, KVM, 2x USB-A, 1080p, HDCP, IR, loop out
- Based on Ethernet technology over a single Cat.5e/6/7/8 cable
- Bandwidth: 2.25 Gbit/s/225 MHz per channel (6.75 Gbit/s total)
- Supports uncompressed and lossless full HD A/V signal transmission up to 50 m/164 ft
- Supports Full HD 1080p/60 Hz and Full 3D
- Supports USB 2.0 KVM control (point-to-point connection - cannot connect over networked devices in between)

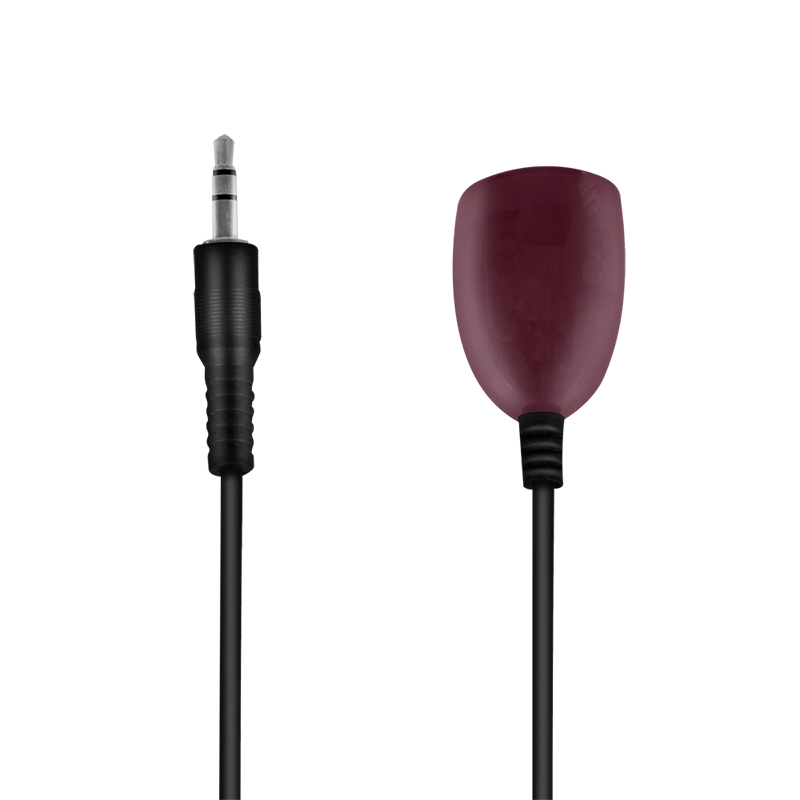

- Supports DDC, HDCP and infrared transmission (CEC)
- Support uncompressed audio such as LPCM 7.1
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
- Metal chassis
- Plug-and-play – no driver installation needed

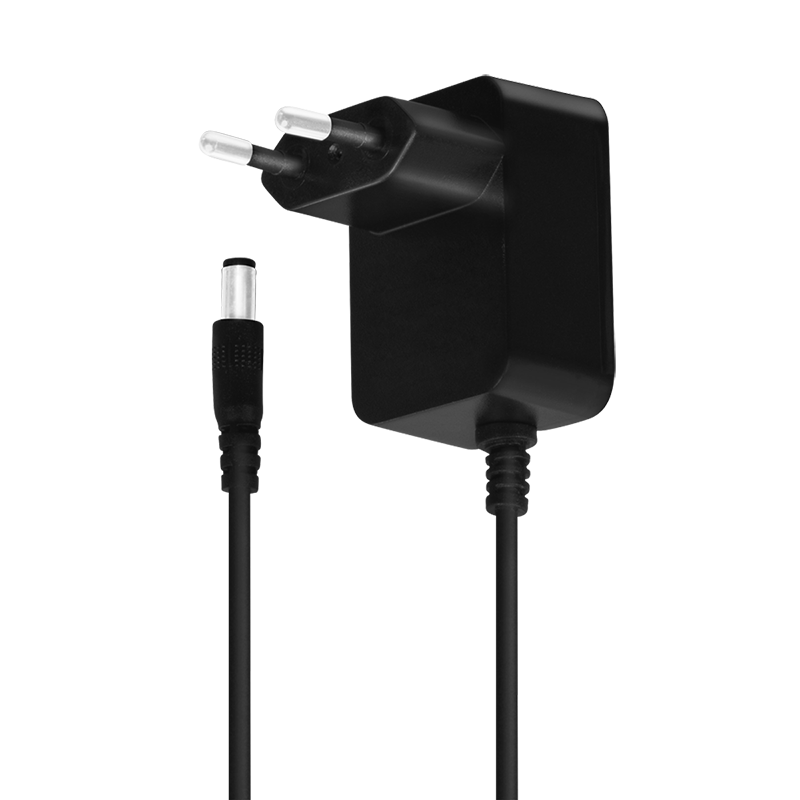

- Power supply unit: DC 12 V/1 A
- Package: Brown box
HD0057

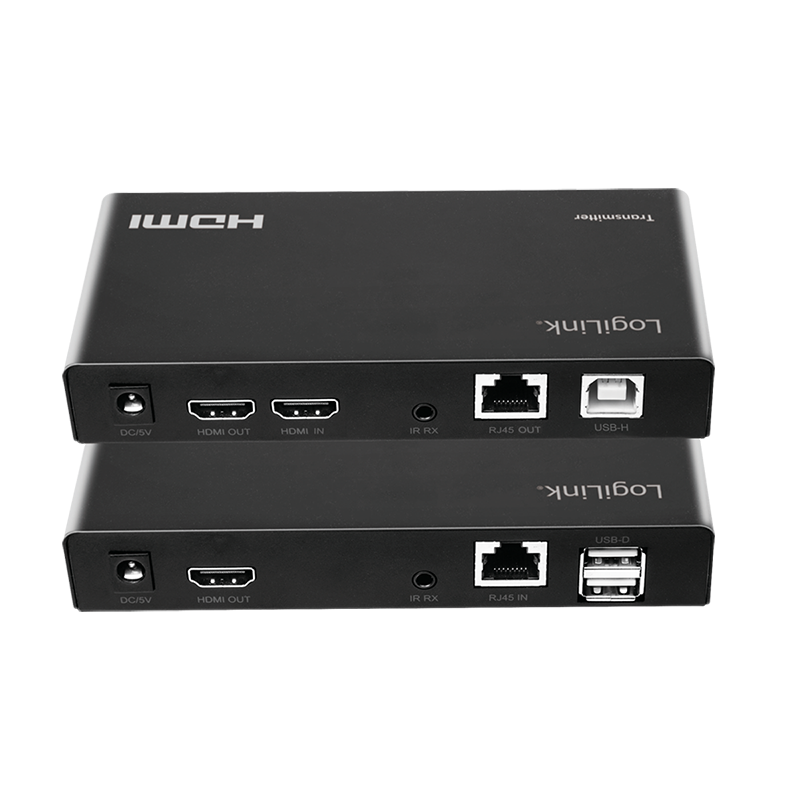

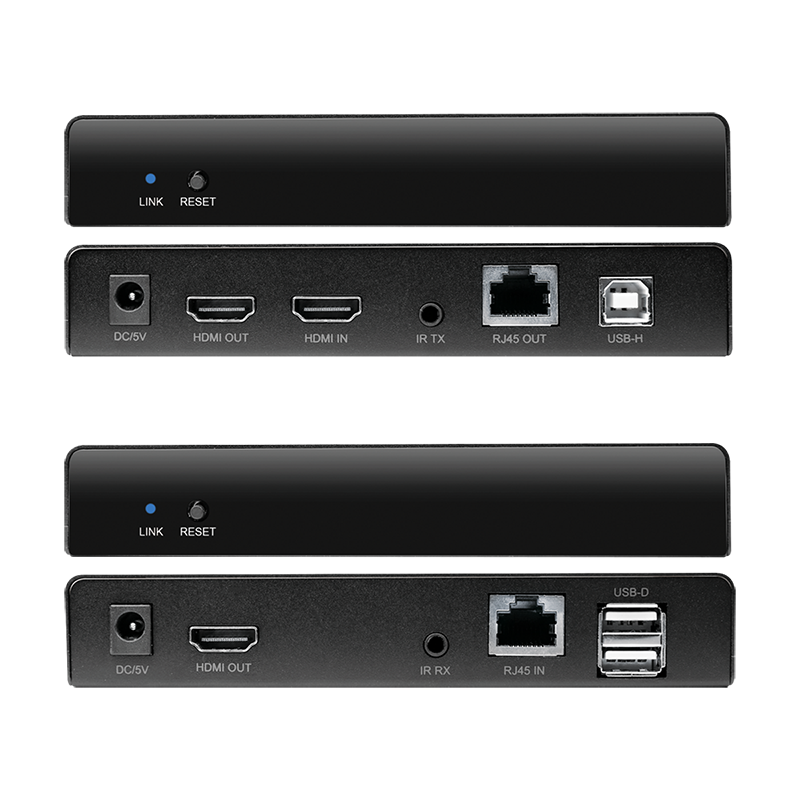

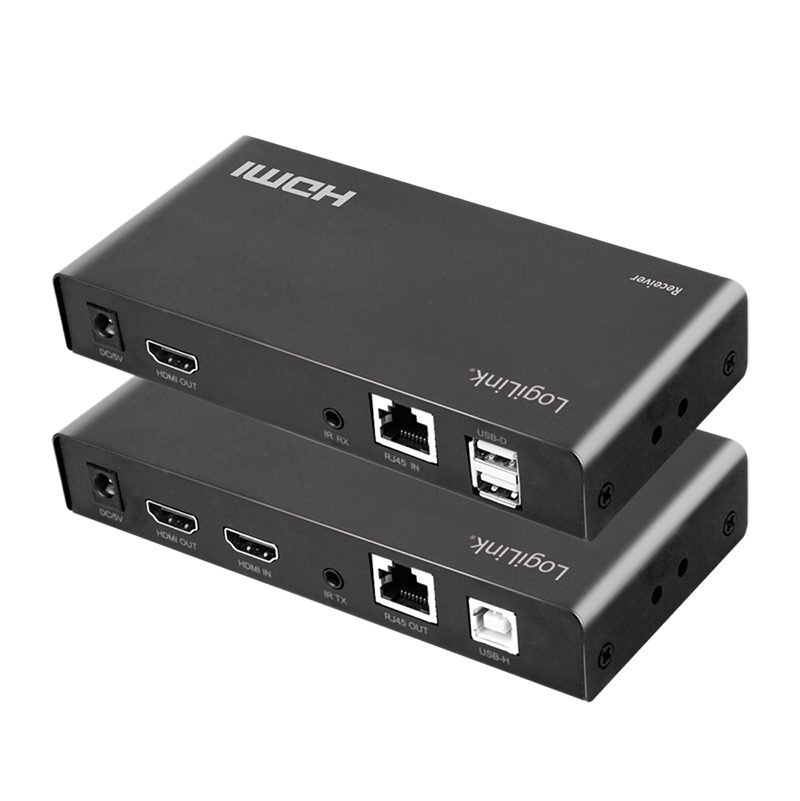

HD0057 — The LogiLink Full HD HDMI Extender Set (transmitter & receiver unit) not only transmits brilliant 1080p/60 Hz video signals via a network cable in a 1:1 connection, but also forwards USB, audio and IR remote control signals (CEC) via the network cable. This allows you to control a DVD player with the remote control, for example. There are also two (2) USB 2.0 interfaces on the front panel, which you can use to connect other peripheral devices such as a keyboard, mouse and USB storage media.
The transmitter and receiver units can be located up to 50 meters away in different rooms. A network cable with at least category 5e (Cat.5e upward compatible) is required. The LogiLink extender set offers a special feature with the additional KVM functionality, which can be used for a variety of possibilities.
