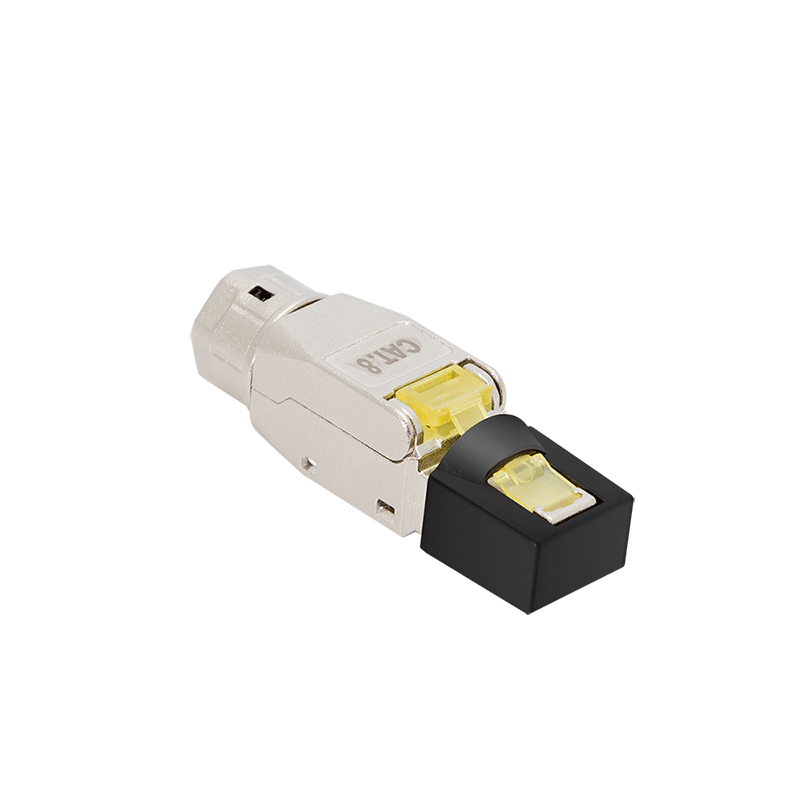

Field terminable Cat.8.1 RJ45 connector, shielded, extra short
- Complies with Cat.8.1 Class I channel test
- For Cat.6A, Cat.7 or Cat.8 network cables
- Fully shielded zinc die-cast housing
- Screwable metal strain relief
- Accepts 22 to 26 AWG solid or stranded wires
- Suitable for outer cable diameter: 5 - 8.5 mm
- Suitable Wire diameter (insulated): 0.8 - 1.6 mm
- Space saving, very small size
- Suitable for PoE, PoE+ and PoE++
- Wiring code: T568A or T568B
MP0085

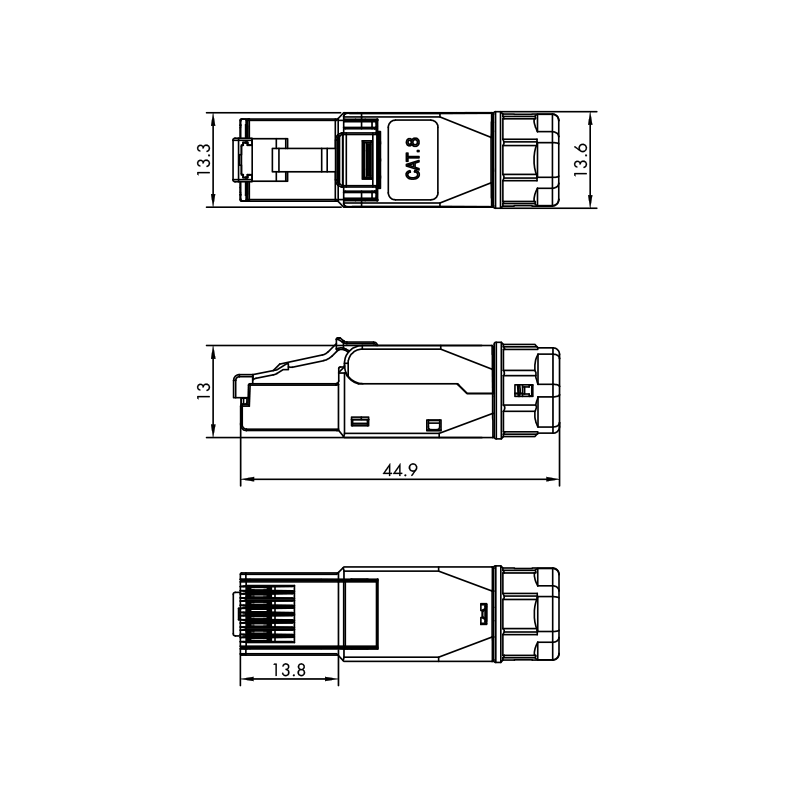

The MP0085 RJ45 connector is the ideal solution for space-constrained applications thanks to its 45mm long housing. It supports data rates up to 40 Gbps over twisted-pair copper cable. The MP0085 RJ45 connector is backward compatible with all existing twisted pair copper cabling (Cat.6A, Cat.6, Cat.5e).
Whether in the office, data center, industrial, security or home network, the MP0085 provides maximum transmission performance with minimum effort. This rugged connector is quick and easy to install.
Applications
For Cat.6A, Cat.7 or Cat.8 network cables. Suitable for outer cable diameter: 5 - 8.5 mm.
