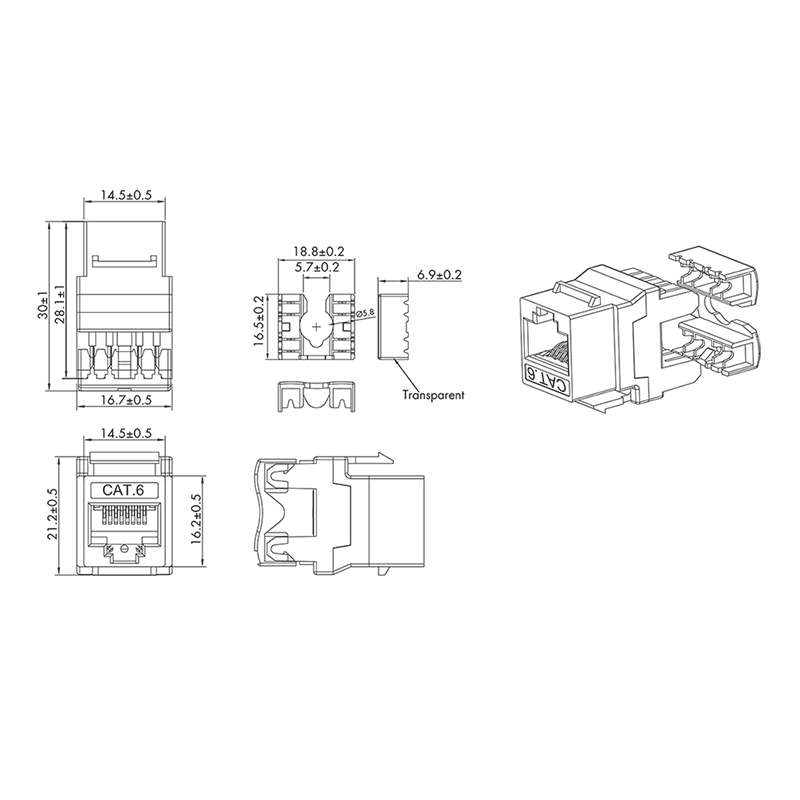

Cat.6 keystone jack UTP, 180° LSA termination, 16.7 mm width
- Cat.6 RJ45 Keystone Jack (Module)
- Cat.6 Class E, 250 MHz
- Complies with ISO/IEC 11801 EIA/TIA 568
- UTP (unshielded version)
- For 24–26AWG solid wire
- Suitable for cable diameter 5–6 mm
- Supports PoE, PoE+ and PoE++
NK4005
NK4005 — LogiLink’s Cat.5e, Cat.6 and Cat.6a shielded and unshielded keystone jacks are engineered with PCB technology, phosphor bronze IDC contacts, gold plated prongs, and a zinc die-cast with nickel plated housing (only shielded type). Our keystone jacks were engineered to simplify the termination helping you save time and money with features like easy to read wire labels, universal T568A & T568B wiring, 110 or Krone Punch down and tool-less termination when using the IDC cap. LogiLink’s Cat.5e, Cat.6 and Cat.6A keystone jacks comply with stringent industry transmissions and safety standards.
Applications
For 24–26AWG solid wire. Suitable for cable diameter 5–6 mm.
