Cat.6 wall outlet 2 x RJ45, shielded, pure white, horizontal cable entry
Brand:LogiLink
Part NoNP0023
EAN:4052792027297
PU:64
- Network wall outlet Cat.6 fully shielded
- Cat.6 Class E, ISO/IEC 11801 & TIA/EIA-568

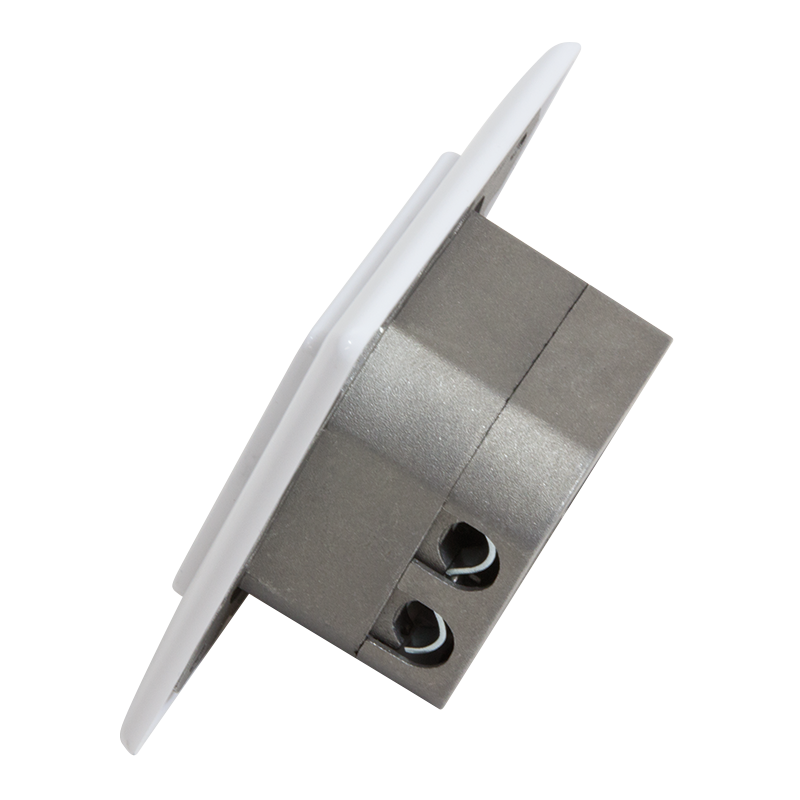

- Horizontal cable entry with strain relief

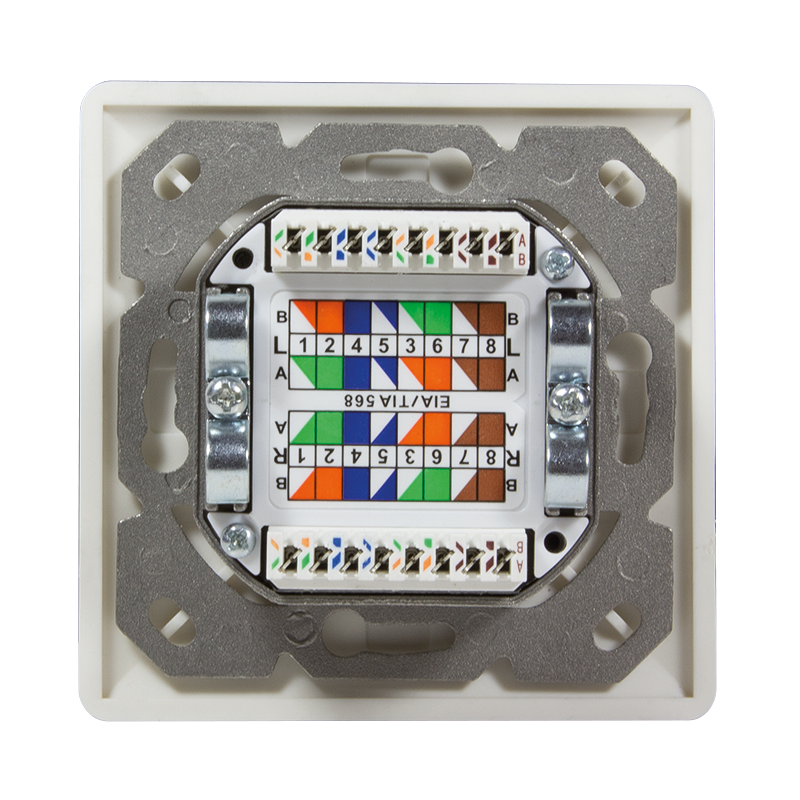

- LSA termination, 22-24AWG

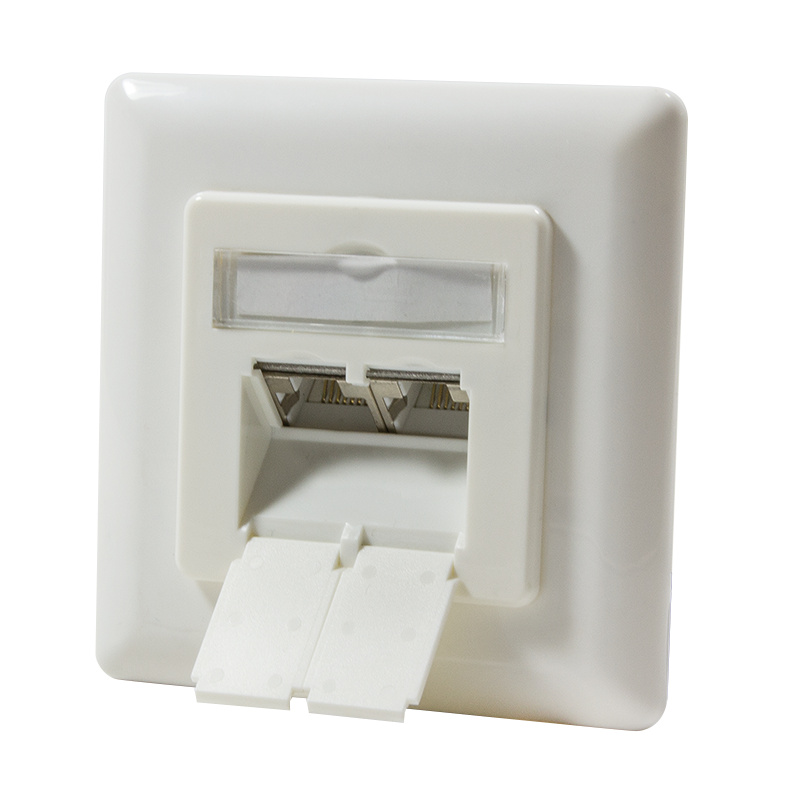

- 2 shielded R45 jacks 40° angled
- Dimension: 80 x 80 mm frame, 50 x 50 mm inlet
- Flush-mount or cable duct installation
- Color: pure white, similar to RAL 9010
- Suitable surface back box: NP0221
- Supports PoE, PoE+ and PoE++
NP0023

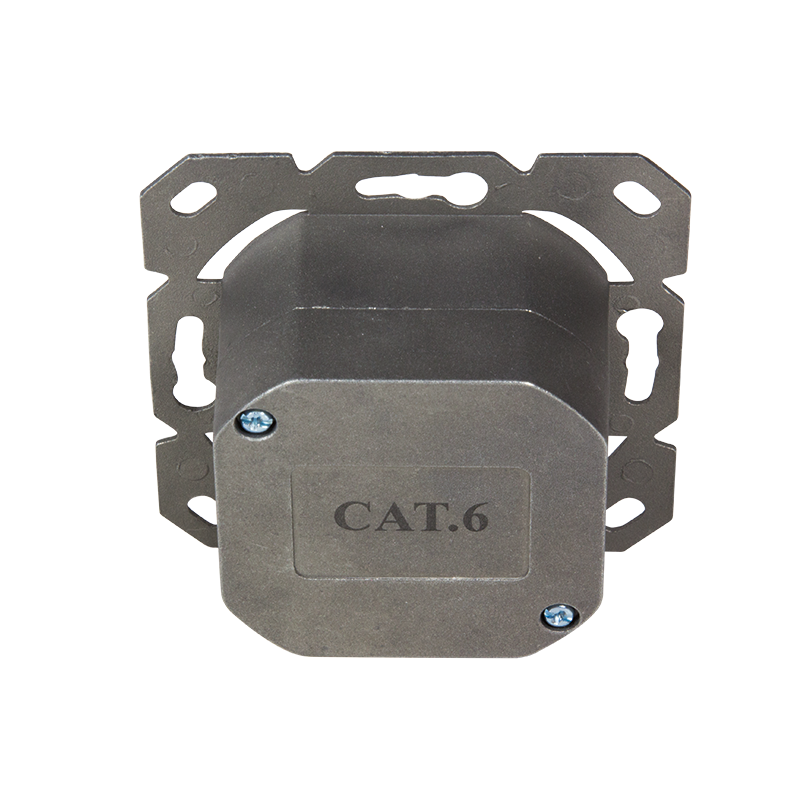

NP0023 — LogiLink’s Cat.6 shielded, angled, with zinc die casting housing wall outlet is ready for the transmission of digital and analogue voice, data and video up to 1 Gigabit Ethernet. The high-grade outlet is suitable for all current and future applications in Cat.5e and Cat.6 systems up to 1GbE.
This wall outlet is also suitable for Power over Ethernet (PoE). Together with optional back box, this face plate becomes a Cat.6 surface mount box outlet.
