USB-C charger, 65 W, GaN, 1-port, 1x USB-C (PD/QC), White
- Equipped with GaN technology that is 3x faster and more powerful
- Connection: 1x USB-C (PD 3.0, QC 3.0 and PPS (3.3–11 V/3 A))
- Input: 110–240 V~ 50/60 Hz, 1.6 A max.
- Output: USB-C: 5.0 V/3.0 A (15.0 W). 9.0 V/3.0 A (27.0 W). 12.0 V/3.0 A (36.0 W). 15.0 V/3.0 A (45.0 W) 20.0 V/3.25 A (65.0 W) max.). Total: 65.0 W max.
- Average operating efficiency: 84.78 %, efficiency at low load (10 %): 78.93 %, power consumption at zero load: 0.046 W

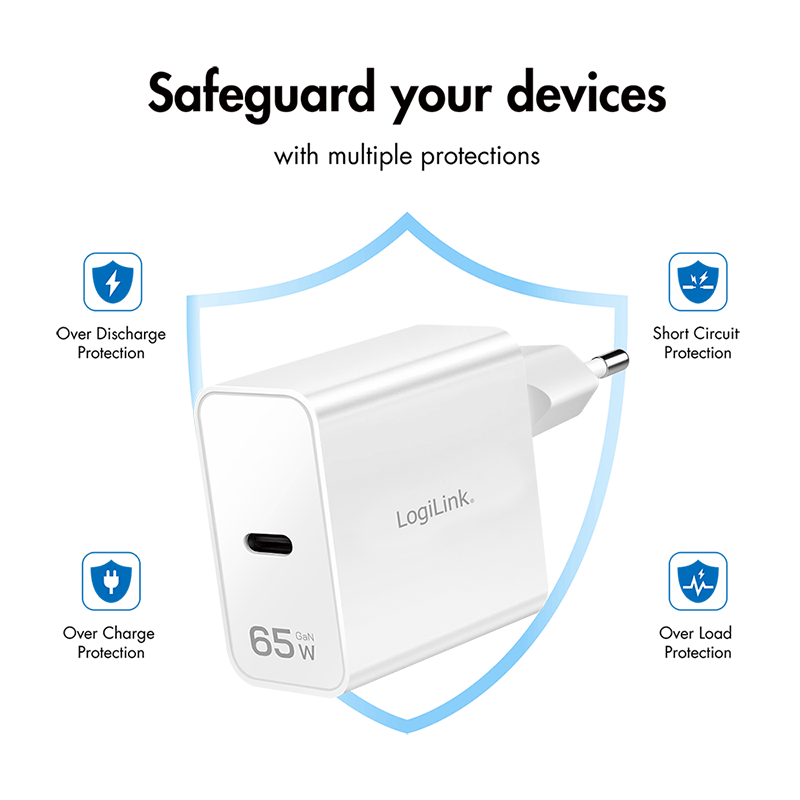

- Device protection: Overcurrent, overvoltage, overheating and short-circuit protection
- Energy efficiency: Level VI

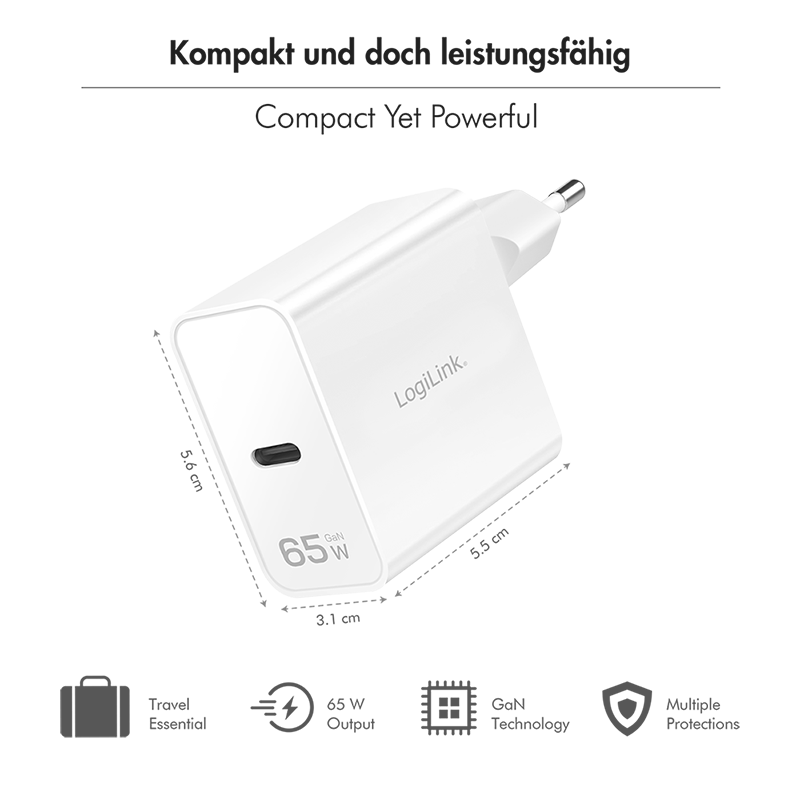

- Dimensions: 9.2 x 3.6 x 5.6 cm (including plug)
PA0294
PA0294 — This highly compact wall charger uses modern gallium nitride (GaN) technology to achieve high power density in a very small space. Compared to conventional silicon chargers, it offers significantly better thermal efficiency and lower energy losses.
It supports Power Delivery 3.0 and Quick Charge 3.0 and delivers a maximum power of 65 W via the USB-C port. Thanks to PPS (Programmable Power Supply) support, the voltage can be adjusted in fine increments, which protects the battery charge and reduces heat generation in the end device.
Product questions
Responsible entity
Brand: LogiLink
Manufacturer: 2direct GmbH
Registered address: Langenstück 5, 58579 Schalksmühle, Germany
Phone: +49 2351 66887-0
Fax: +49 2351 66887-29
Email: info@2direct.de
Information on safe use:
Before connecting the charger to a socket, make sure it is compatible with the device you intend to charge. After charging, unplug the charger from the socket to avoid the risk of overheating, a short circuit or fire. Never leave the charger plugged in unattended.
