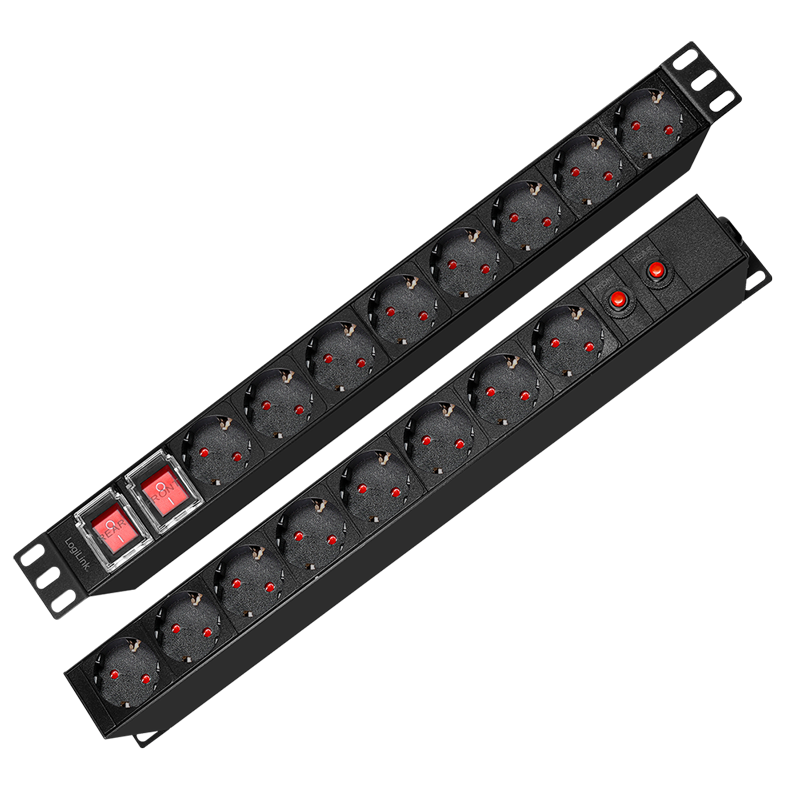

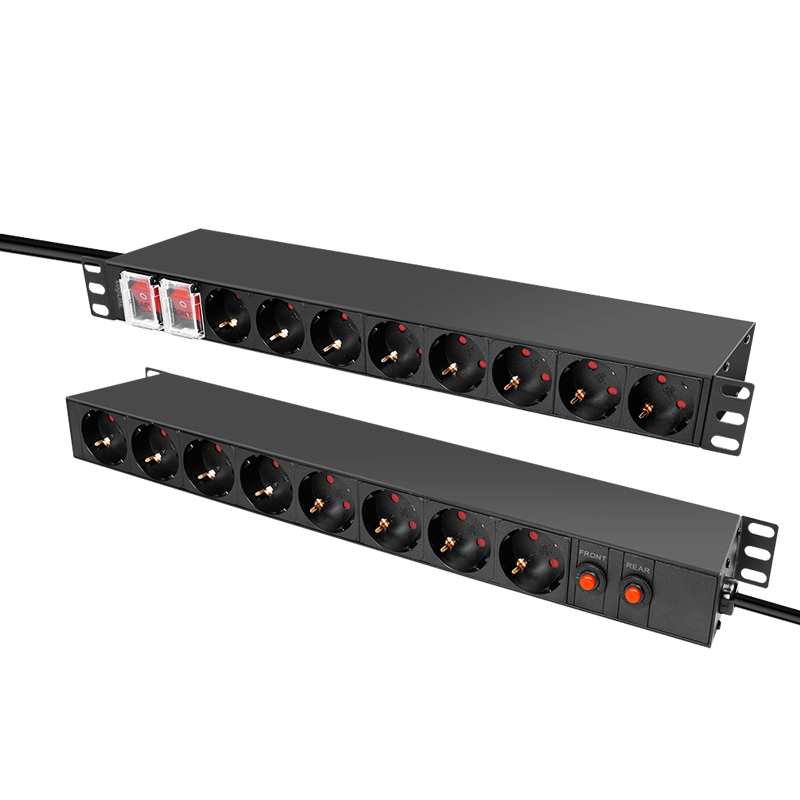

Basic Rack PDU 16-way German socket, with overload protection and switch
- Power strip for mounting on 19" profile frame (1 U)
- Sockets: 16x safety socket CEE 7/3

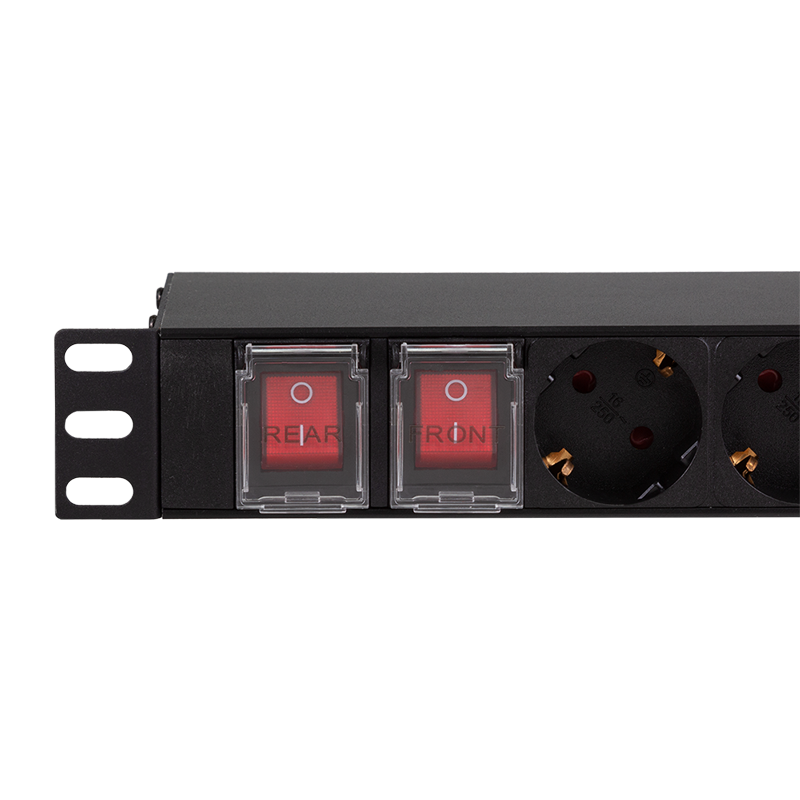

- 8 sockets each on front and back with on/off switch

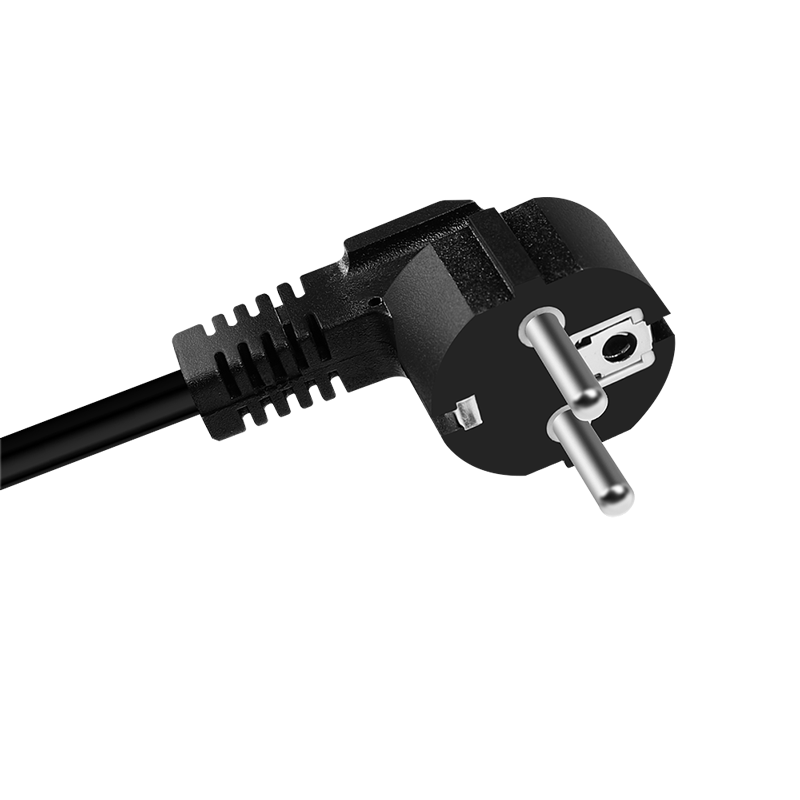

- Connection: German plug CEE 7/7, angled
- Tech data: AC 230 V /16 A, 50 Hz, max. 3680 W

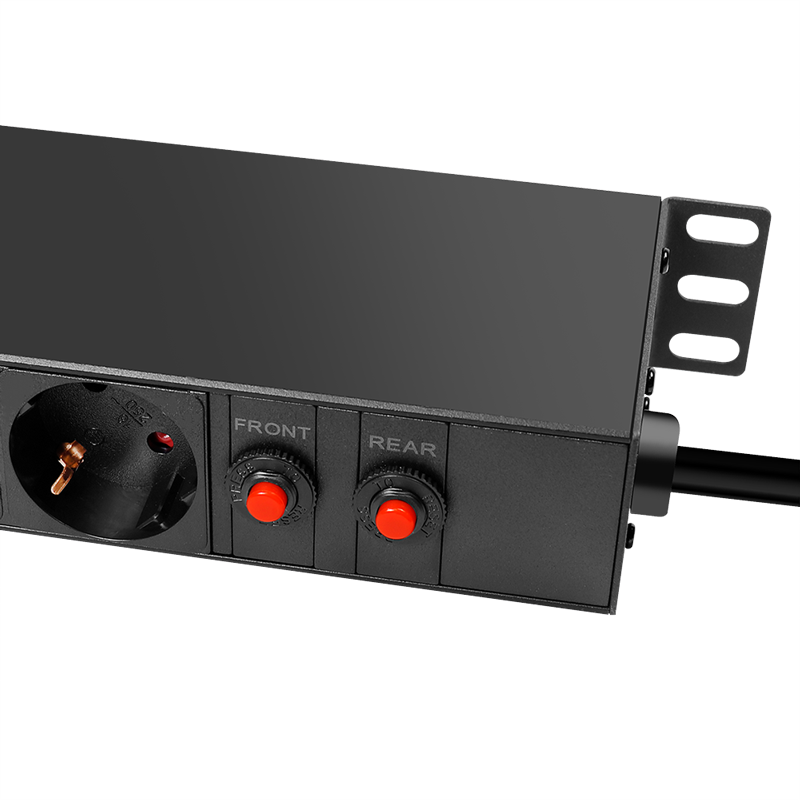

- With overload protection, 16 A / 230 V
- 1.8 m connection cable H05VVF 3x 1.5²
- Rugged 1U aluminum chassis, black
PDU1601
PDU1601 — This 19" power distributor from LogiLink has 16 German sockets, 8 on the front and 8 on the back, each with overload protection and on/off switch. The power strip is suitable for horizontal 19" mounting, but can also be used in other positions. A 2 m connection cable is included.
Product questions
Responsible entity
Brand: LogiLink
Manufacturer: 2direct GmbH
Registered address: Langenstück 5, 58579 Schalksmühle, Germany
Phone: +49 2351 66887-0
Fax: +49 2351 66887-29
Email: info@2direct.de
Information on safe use:
Use only as intended. Do not connect the power strip to an ungrounded socket. Do not use it with extension cables or adapters that interrupt the grounding connection. The power strip is intended exclusively for use in dry indoor areas. Do not install it near heat-emitting devices such as radiators or heat registers. Do not install it in areas with excessive moisture or other conductive contaminants. Do not expose it to water or start disassembling it. Do not connect devices one after another in a series chain. Do not cover it. Never install electrical wiring during a thunderstorm. The power demand of each device connected to the power strip must not exceed the power strip's output power. The total power demand of all devices connected to the power strip must not exceed its maximum load capacity. It is de-energized only when the plug is removed.
