Fiber optic visual fault locator (fiber checker) 10 mW
Brand:LogiLink
Part NoWZ0049
EAN:4052792049077
PU:100
- Optical test tool for fiber optical cable
- Visual identification and localization of defects in glass fibers

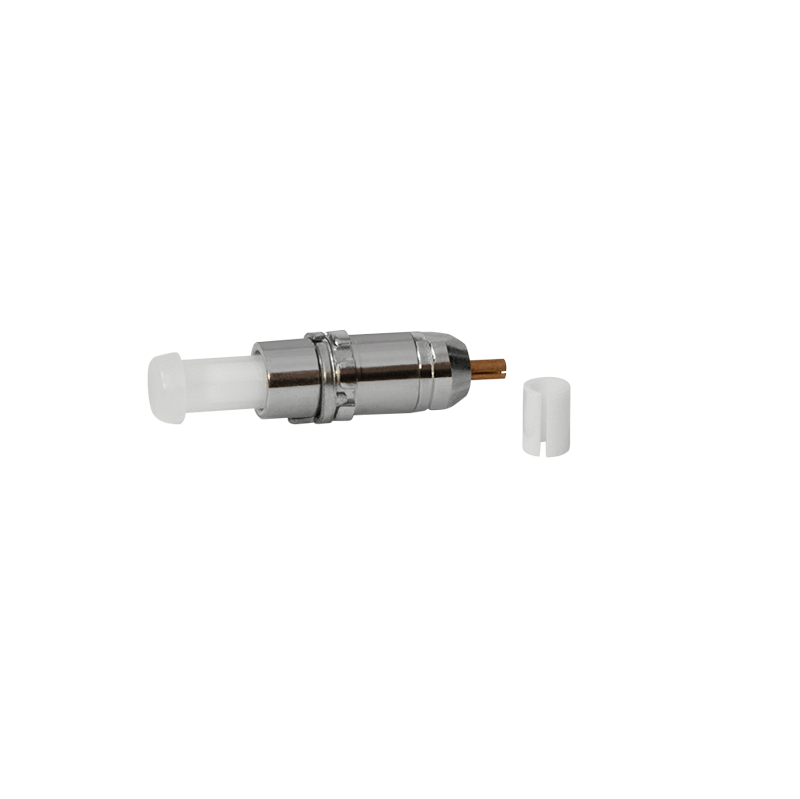

- 2.5 mm ferrule + 1.25 mm adapter for LC, SC, ST, FC, LSH, DIN
- Range up to 10 km, operating time up to 40 hours
- Robust aluminum housing, 175x30x30 mm, black
- Wavelength and power: 650 ±20 nm, 10 mW (max 18 mW)
- Power supply: 2 AA batteries, not included
- Safety: Laser Class 1

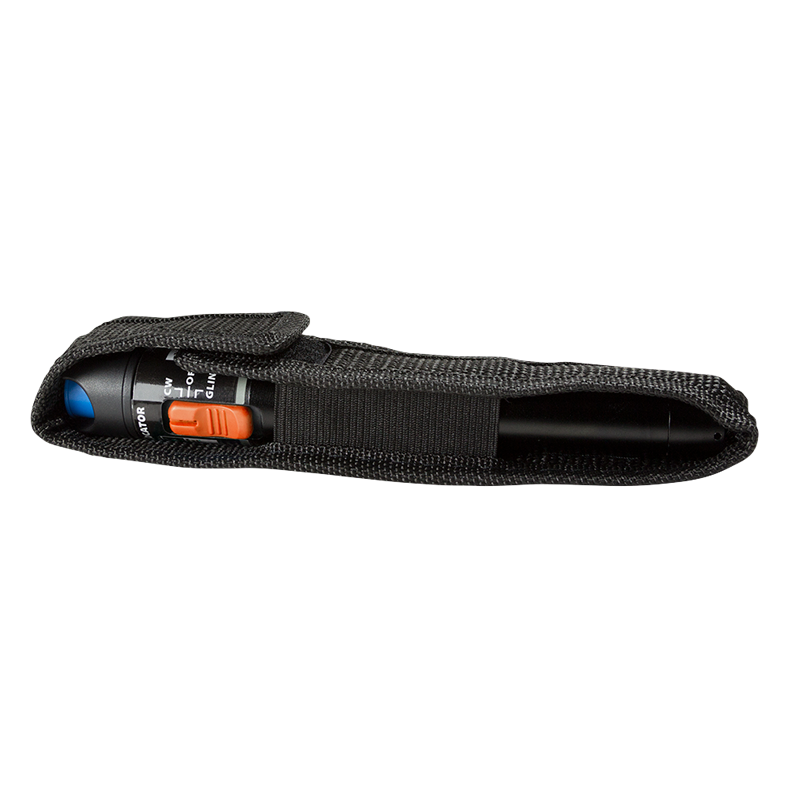

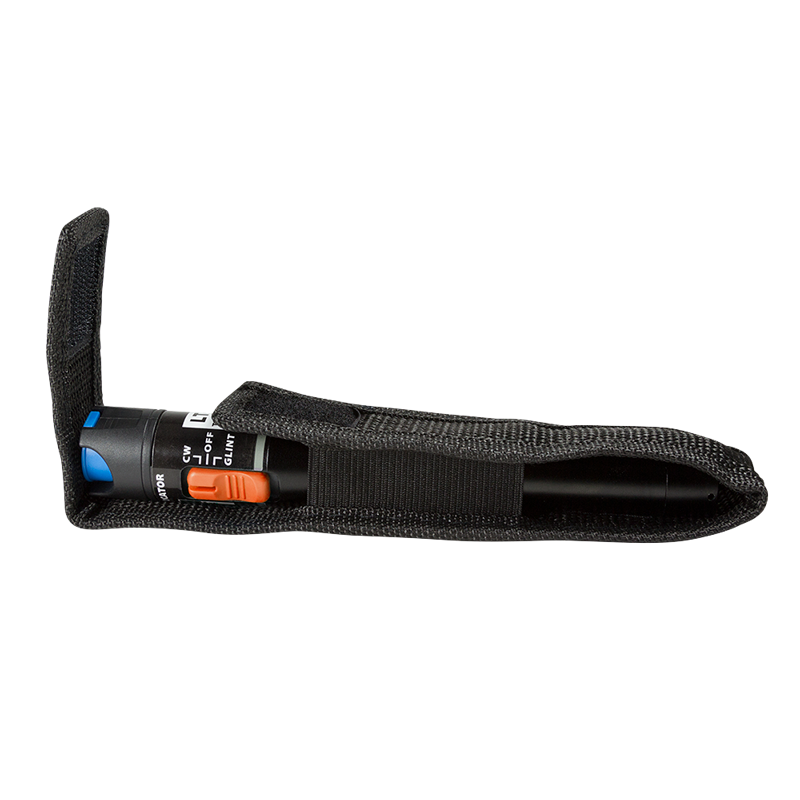

- With portable nylon bag
WZ0049

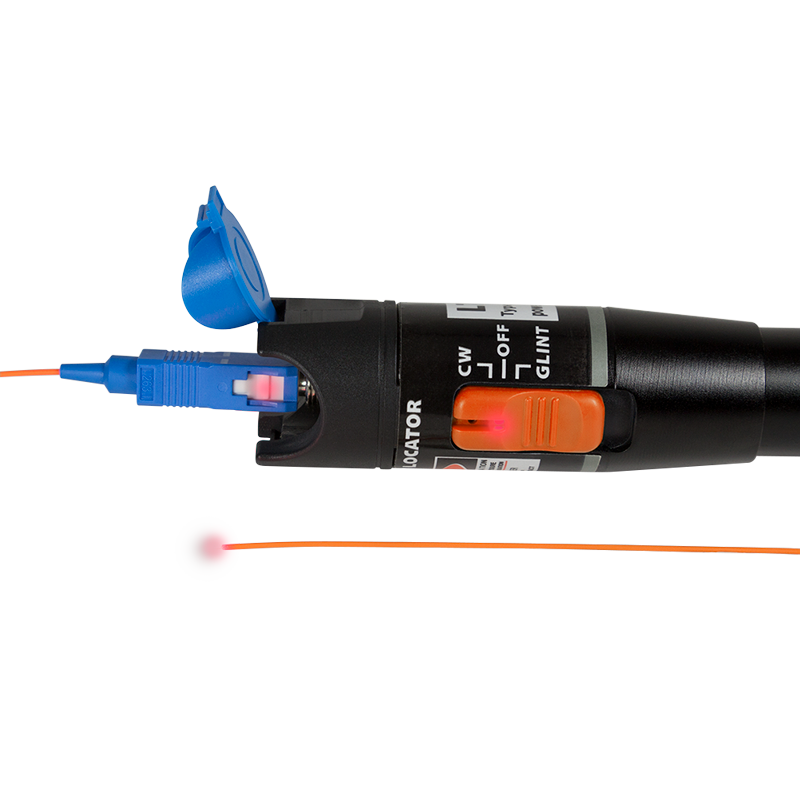

WZ0049 — LogiLink’s compact pen-type Visual Fault Locator (identifier, fiber checker), or VFL, identifies the breakpoint, bending or cracking of the multi-mode or single-mode fiber glass. It can also locate the fault of OTDR dead zone and make fiber identification from one end to the other end.
