What VESA compatibility does the BP0006 mount support?

VESA compatibility: 75x75, 100x100, 200x100, 200x200

What tilt and swivel adjustment does the BP0006 mount provide?

Tilt: -7.5°/+7.5°, swivel: -25°/+25°

Tilting and swivelling TV wall mount, 23–42 in, up to 25 kg

Name: Tilting and swivelling TV wall mount, 23–42 in, up to 25 kg
Brand: LogiLink
SKU: BP0006

Brand:LogiLink

Part NoBP0006

EAN:4052792042535

PU:10

Flat construction.
Suitable for 23–42 in monitors.
Weight capacity: 25 kg max.
Mounting type: wall mounting.

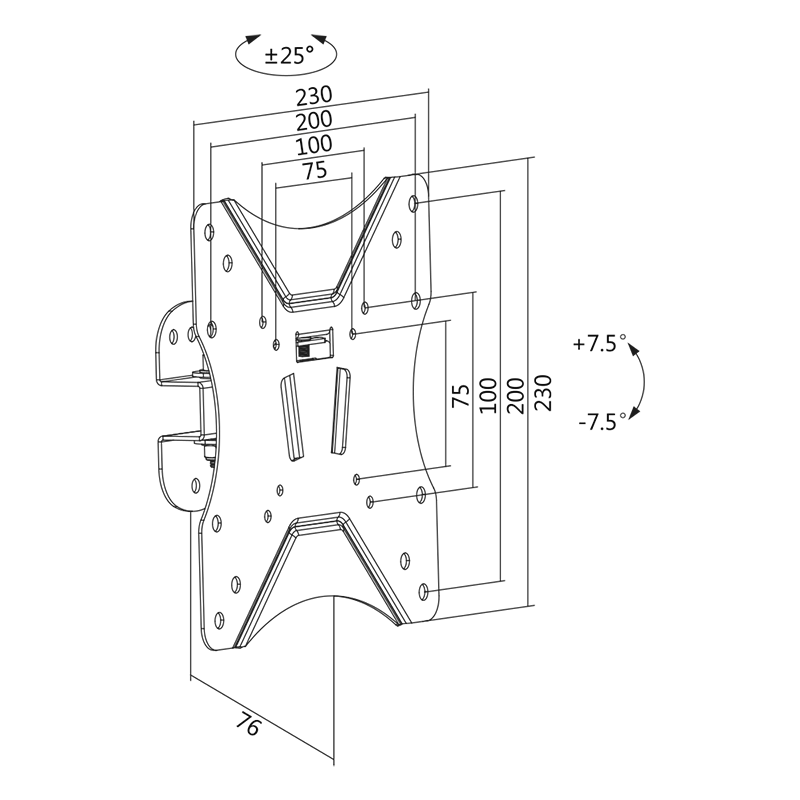

Tilt: -7.5°/+7.5°; swivel: -25°/+25°.
VESA compatibility: 75x75, 100x100, 200x100, 200x200.
Wall distance: 76 mm between the wall and the monitor back.
Front panel dimensions, W x H: 230x230 mm.
Mounting accessories included.
Color: black.

Description

BP0006

BP0006 — A maximum of flexibility is ensured with the fully movable screen mounts. Depending on your needs, you can now pan and tilt the monitor. Ideal for office environments.

Applications

The mount is designed for installation on wood stud walls, solid concrete walls or brick walls. The product is intended for indoor use only. The supporting surface must safely support the combined weight of the equipment and all attached hardware and components.
