What are the tilt, swivel and level adjustment ranges?

Tilt: -20°/+10, swivel: -90°/+90°, front panel rotatable: -3°/+3°

Is the BP0014 mount intended for indoor use only?

This product is intended for indoor use only.

Tilting and swivelling TV wall mount for 32–55 inch screens, up to 50 kg

Name: Tilting and swivelling TV wall mount for 32–55 inch screens, up to 50 kg
Brand: LogiLink
SKU: BP0014

Brand:LogiLink

Part NoBP0014

EAN:4052792042610

PU:4

Space-saving construction.
Suitable for 32–55 inch screens.
Maximum load capacity: 50 kg.
Mounting type: wall mounting.

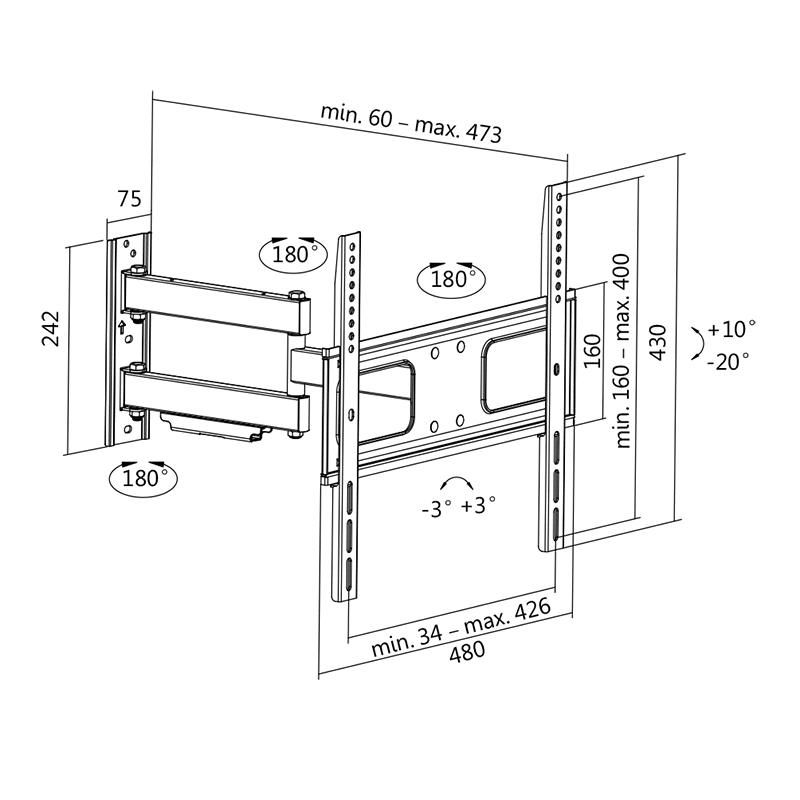

Tilt: -20° to +10°; swivel: -90° to +90°; front panel rotation: -3° to +3°.
VESA compatibility: 200x200, 400x200, 300x300, 400x400.
Wall-to-TV rear distance: 60–473 mm.
Front panel dimensions, W × H: 480x160 mm.
Mounting accessories included.
Colour: black.
Screen size: 32–55 inches.
Maximum rated load: 50 kg / 110 lbs.
VESA: 200x200, 400x200, 300x300, 400x400.
Tilt: -20° to +10°.
Swivel: -90° to +90°.
Level adjustment: -3° to +3°.
Distance to the wall: 60–473 mm.
Product size: 480 x 430 x 473.

Description

BP0014

BP0014 — A maximum of flexibility is ensured with the fully movable screen mounts. Depending on your needs, you can now pan and tilt the monitor. Ideal for office environments.

Applications

The mount is intended for 32–55 inch screens with VESA 200x200, 400x200, 300x300 or 400x400 mounting patterns, with a maximum weight of 50 kg. The product is designed for installation on wood stud, solid concrete or brick walls. It is intended for indoor use only. The supporting surface must safely support the combined weight of the equipment and all attached hardware and components.
