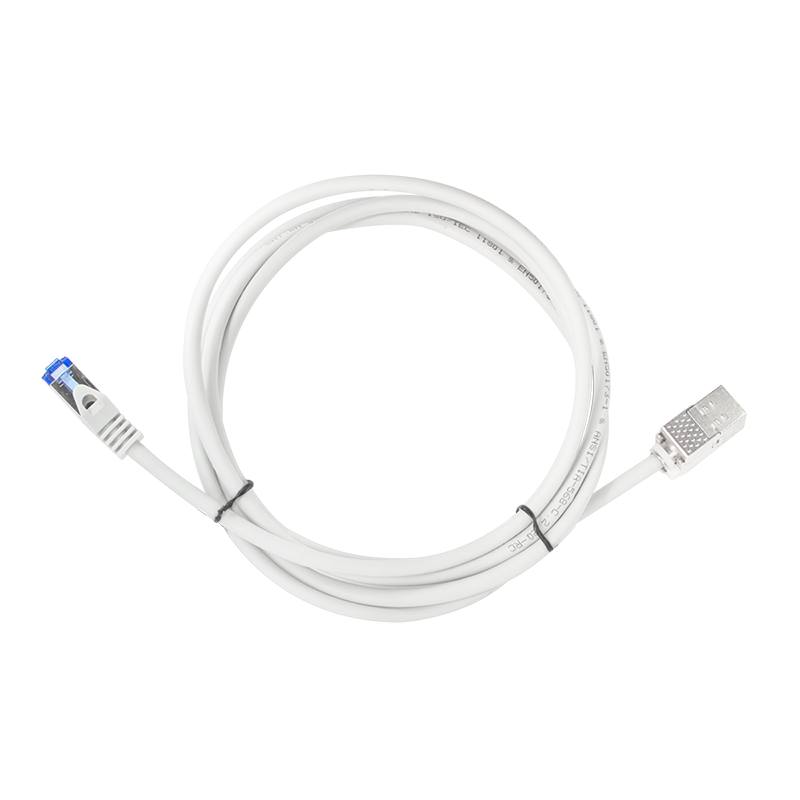

Cat.6A S/FTP Consolidation Point patch cable, grey, 2 m
- Cat.6A CP-Link or extension cable.
- Cat.6A Class EA up to 500 MHz, 10 Gbit/s.
- According to ISO/IEC 11801, EN 50173, ANSI/TIA-568C.2.
- Suitable for PoE, PoE+, PoE++.
- Cable: 26/7AWG BC S/FTP LSZH, Eca.

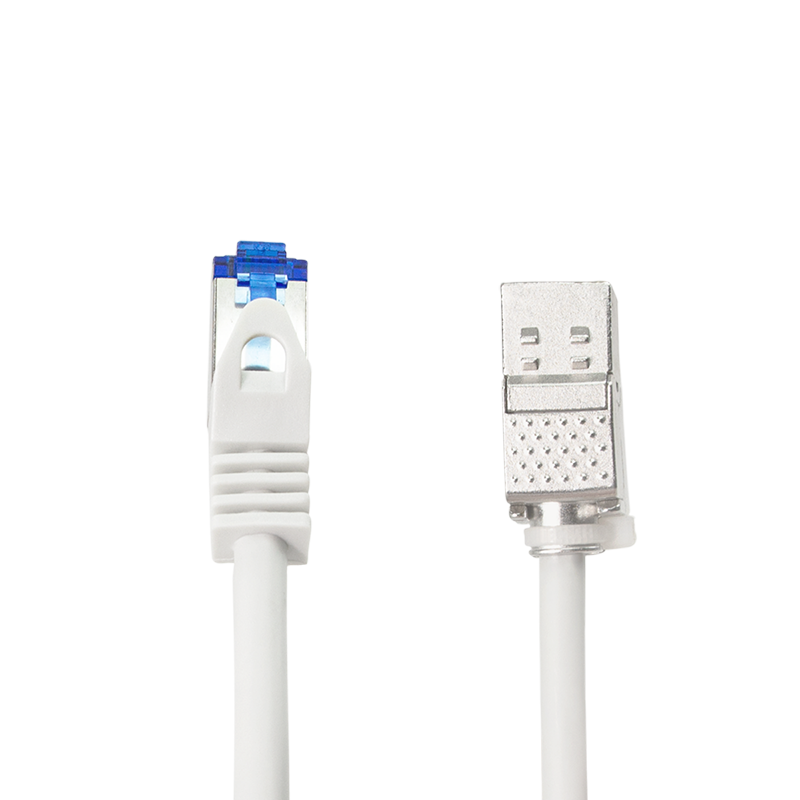

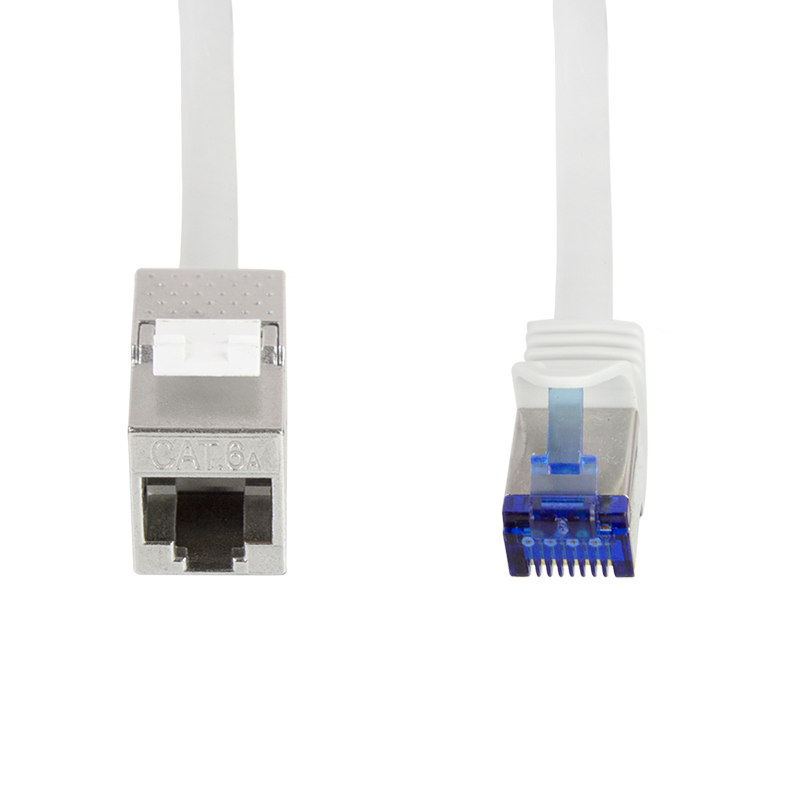

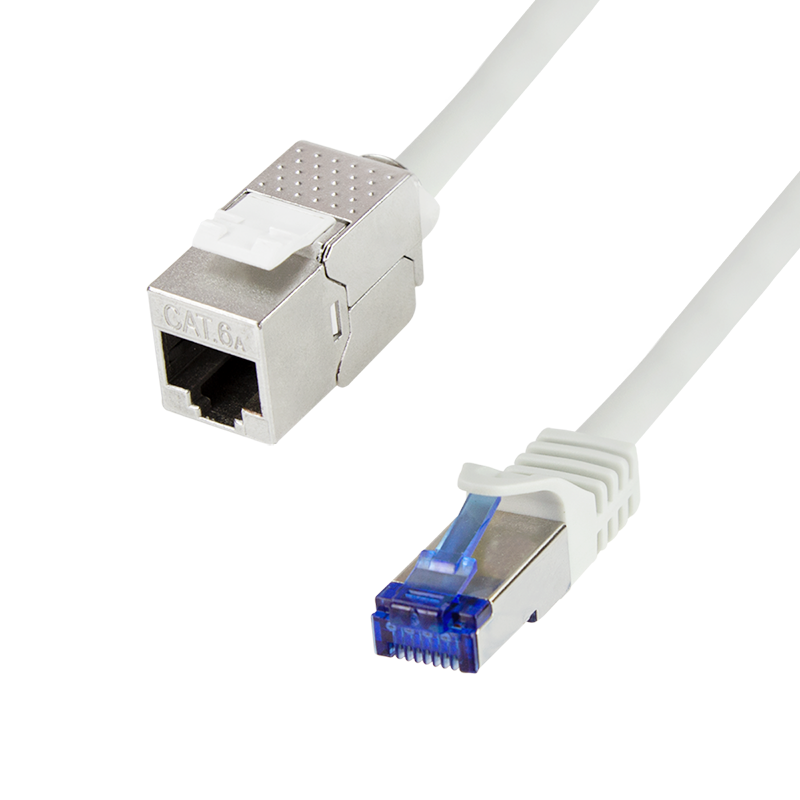

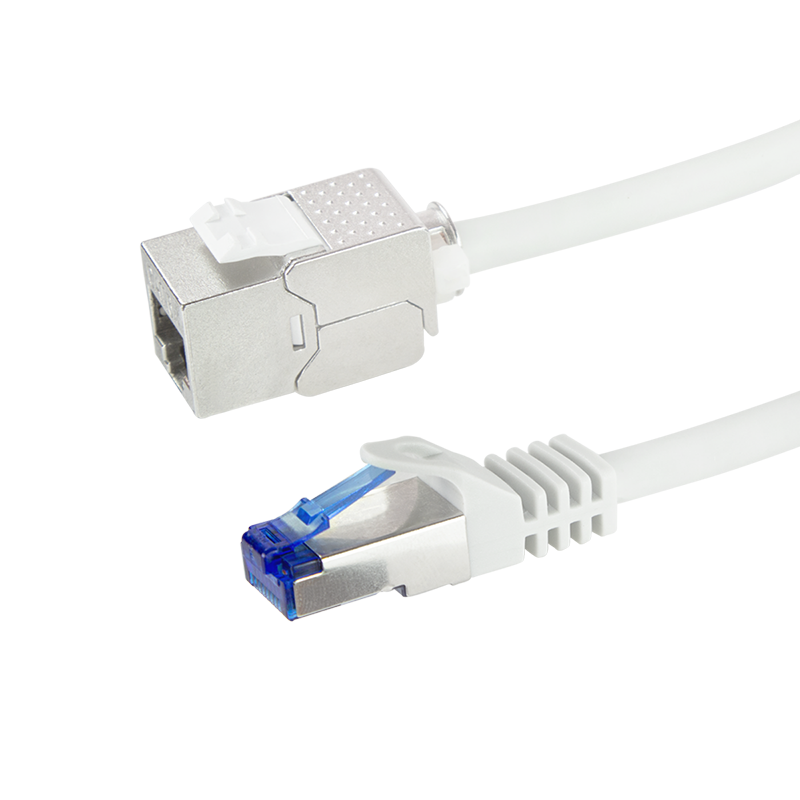

- Connection: shielded RJ45 plug to shielded RJ45 keystone jack.

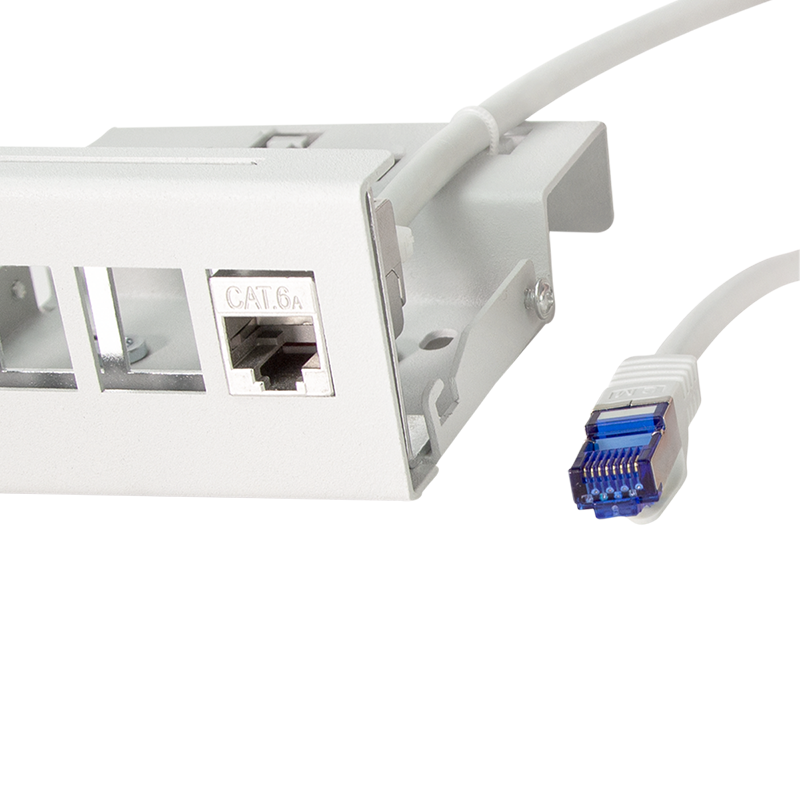

- For connecting consolidation point distributors.
- Suitable for NP0090/91/92/93/94, NK4020/21/26/27.
- Sheath: LSZH/IEC 60332-1-2, RAL 7035 light grey.
CC5052S
CC5052S — LogiLink's new consolidation point cables (CP cables) are perfect for flexible floor distribution, especially if used together with LogiLink's consolidation point boxes (CP boxes). Consolidation points (CPs) are stationary distribution points in false ceilings, underfloor systems or cable ducts.
They used as additional flexible connections between the patch panels and the junction boxes. This means that the office cabling can be adapted much more efficiently and flexibly to local needs.
Applications
For connecting consolidation point distributors. Suitable for NP0090/91/92/93/94 and NK4020/21/26/27, as well as for PoE, PoE+ and PoE++.
