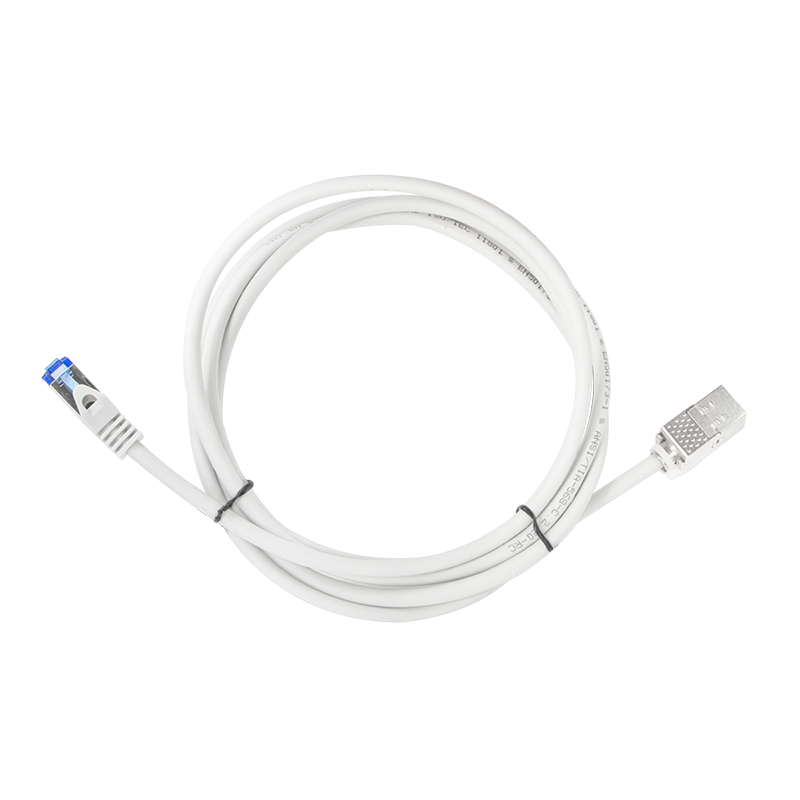

Cat.6A S/FTP consolidation point patch cable, grey, 20 m
- Cat.6A CP-Link or extension cable.
- Cat.6A Class EA up to 500 MHz, 10 Gbit/s.
- According to ISO/IEC 11801, EN 50173, ANSI/TIA-568C.2.
- Suitable for PoE, PoE+, PoE++.
- Cable: 26/7 AWG BC S/FTP LSZH, Eca.

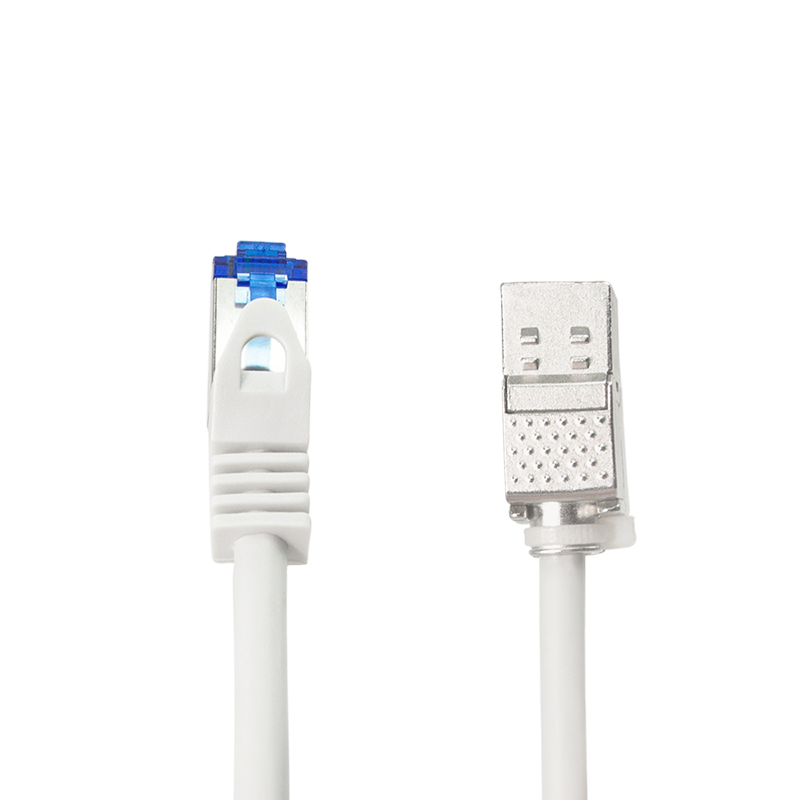

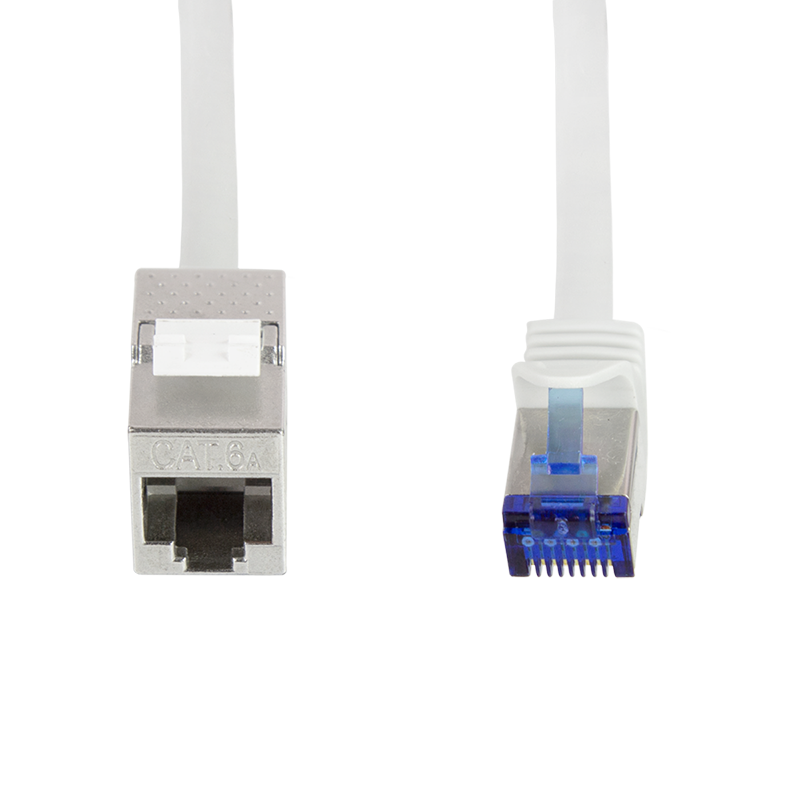

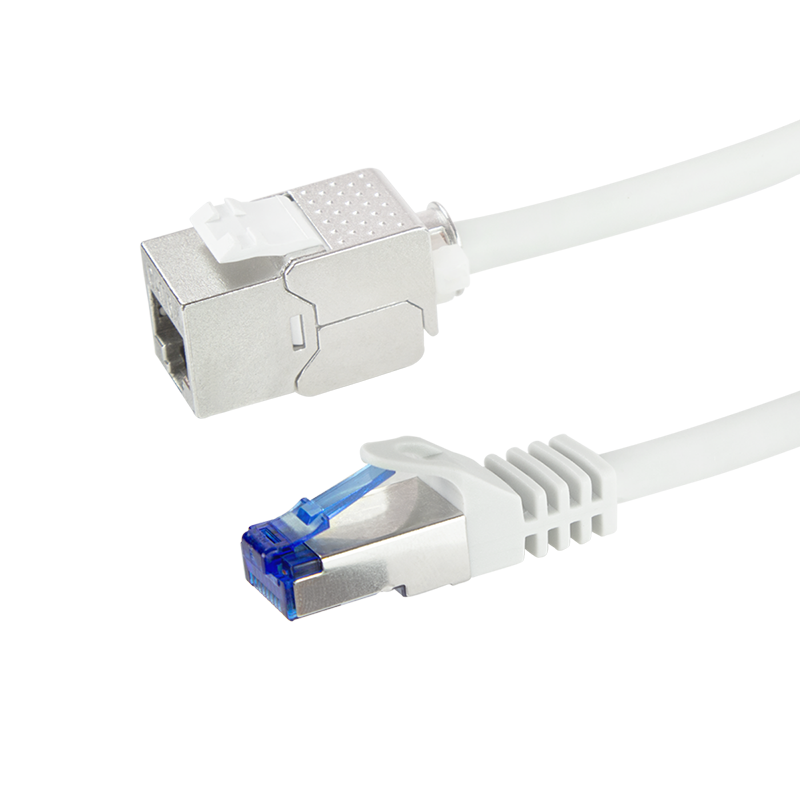

- Connection: RJ45 plug to RJ45 keystone jack, shielded.

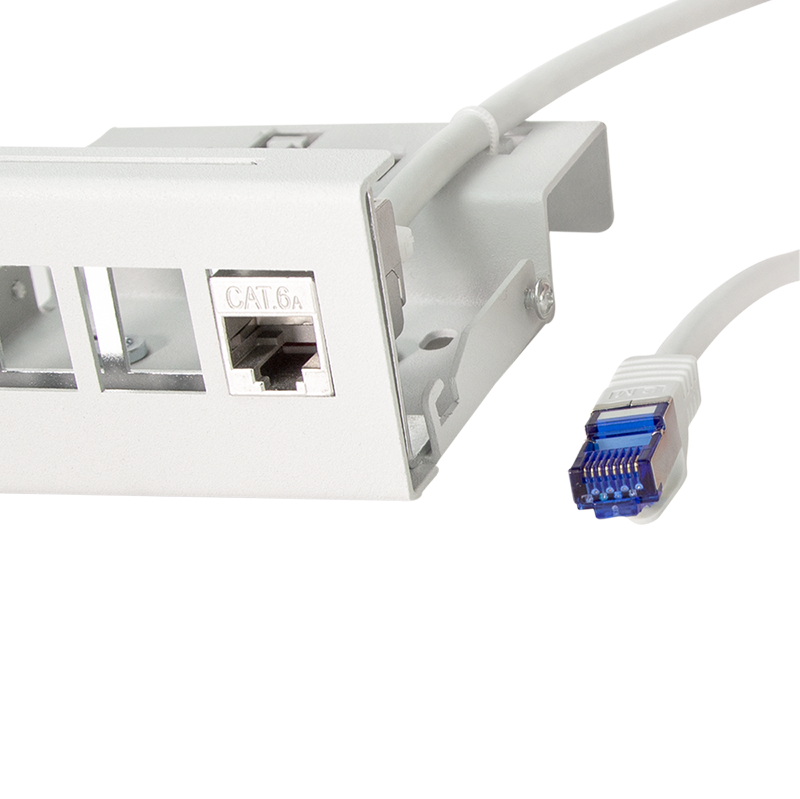

- For the connection of consolidation point distributors.
- Suitable for NP0090/91/92/93/94, NK4020/21/26/27.
- Sheath: LSZH / IEC 60332-1-2, RAL 7035 light gray.
CC5112S
CC5112S — LogiLink's new consolidation point cables (CP cables) are perfect for flexible floor distribution, especially if used together with LogiLink's consolidation point boxes (CP boxes). Consolidation points (CPs) are stationary distribution points in false ceilings, underfloor systems or cable ducts.
They used as additional flexible connections between the patch panels and the junction boxes. This means that the office cabling can be adapted much more efficiently and flexibly to local needs.
Applications
For connecting consolidation point distributors. Consolidation points are stationary distribution points in false ceilings, underfloor systems or cable ducts, used as additional flexible connections between patch panels and junction boxes. Suitable for NP0090/91/92/93/94 and NK4020/21/26/27.
