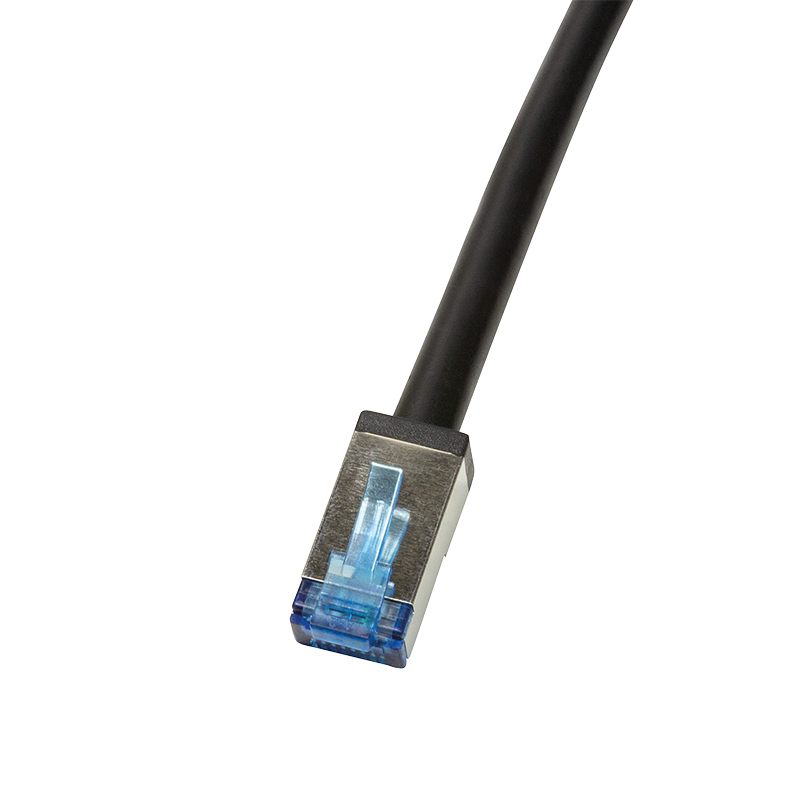

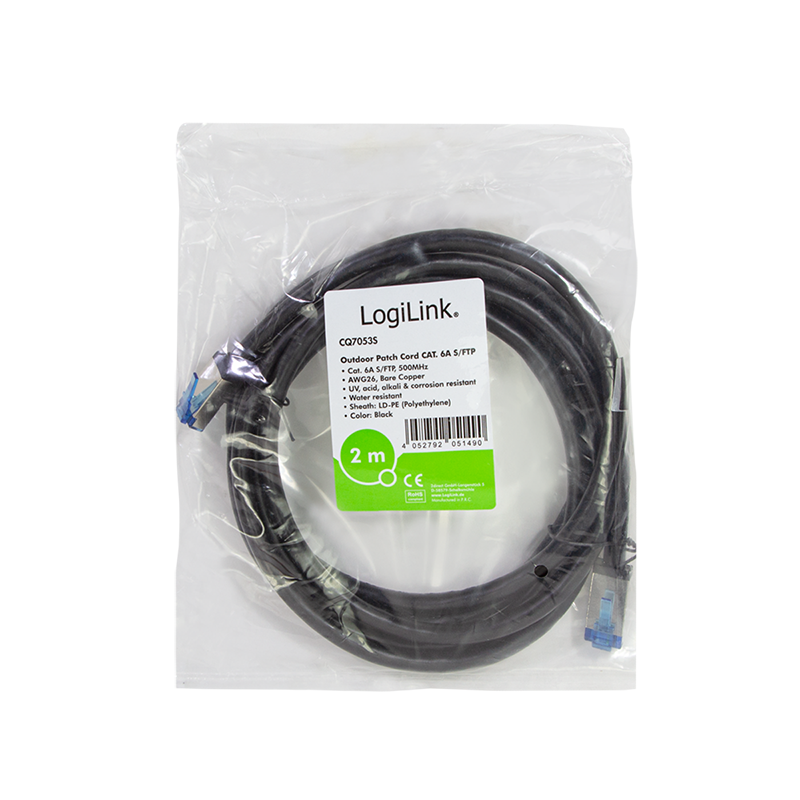

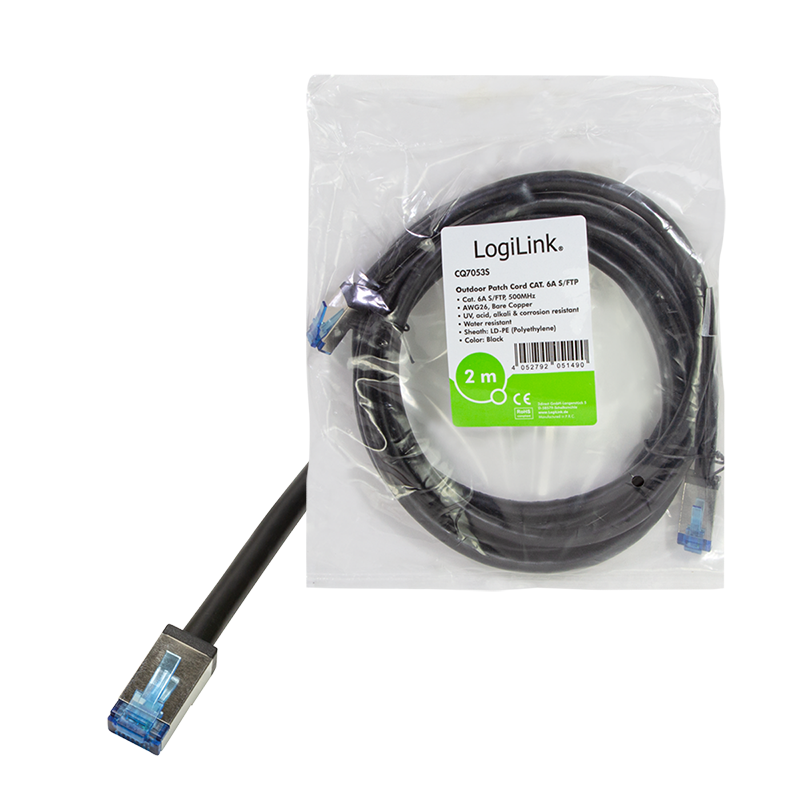

Outdoor Cat.6A S/FTP patch cable, black, 2 m
- Cat.6A Class EA, S/FTP, 26/7 AWG copper wire.

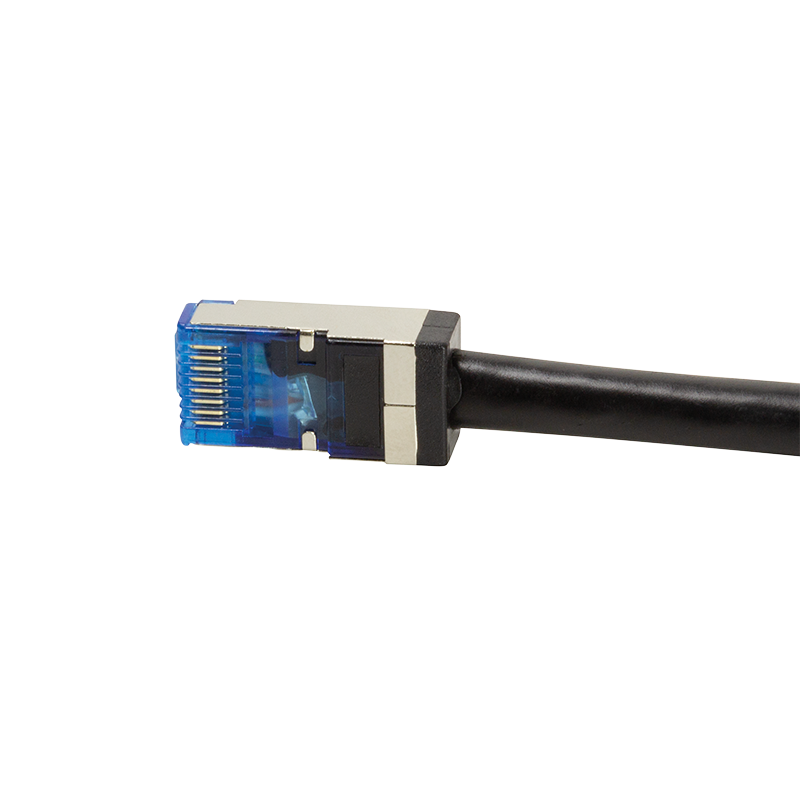

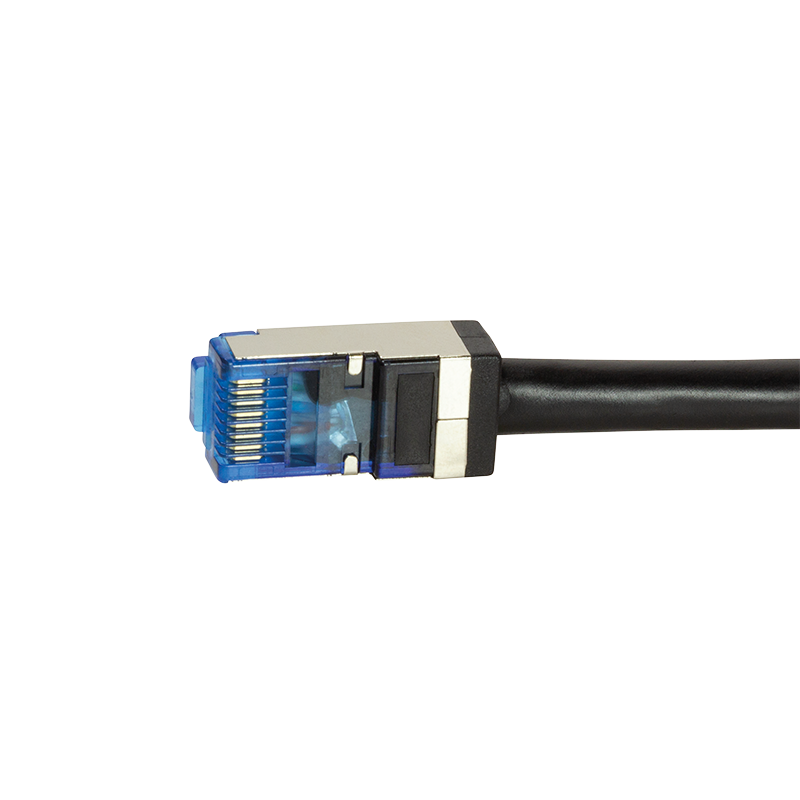

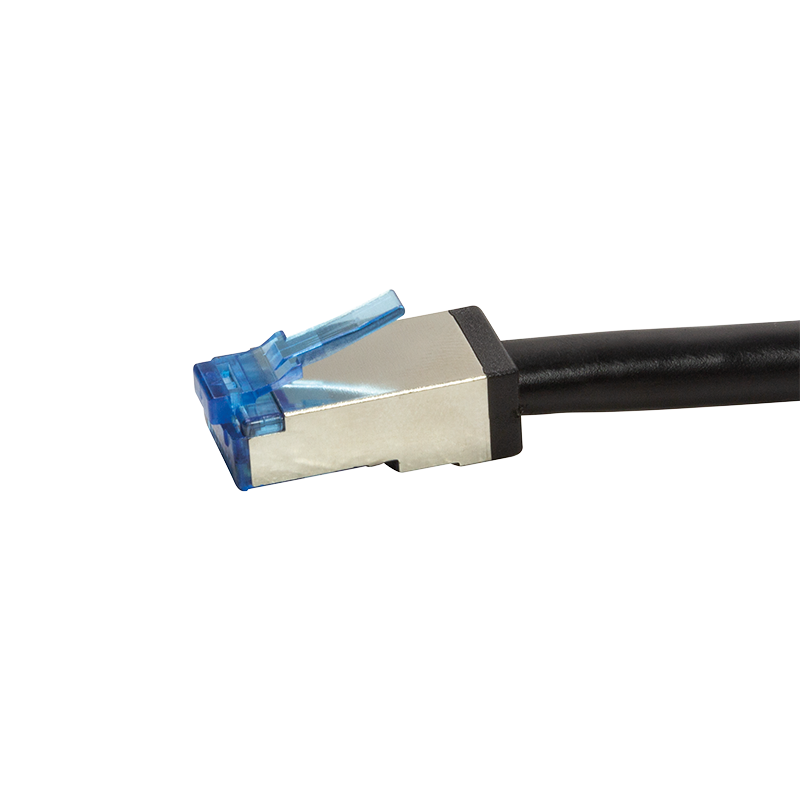

- RJ45 plug with gold-plated contacts.
- Robust strain relief without cable boot.
- UV- and oil-resistant in accordance with IEC 60811-2-1.
- Splash water protected in accordance with IEC 60811-1-3.
- Flexible, halogen-free, black LDPE sheath.
- Outer cable diameter: 6.5 mm.
- RJ45 plug dimensions including strain relief: approx. 25.3 × 12 × 10 mm.
- Operating temperature: -40° to 65° C.
- Suitable for PoE and PoE+.
- Category: Cat.6A Class EA.
- Shielding: S/FTP.
- Conductor construction: 26/7 AWG copper wire.
CQ7053S
CQ7053S — LogiLink outdoor patch cables are specially designed for use in unprotected, harsh environments, but are not suitable for underground installation. The durable polyethylene (PE) jacket provides reliable protection against the effects of weather and UV radiation. The cables are still flexible and easy to install.

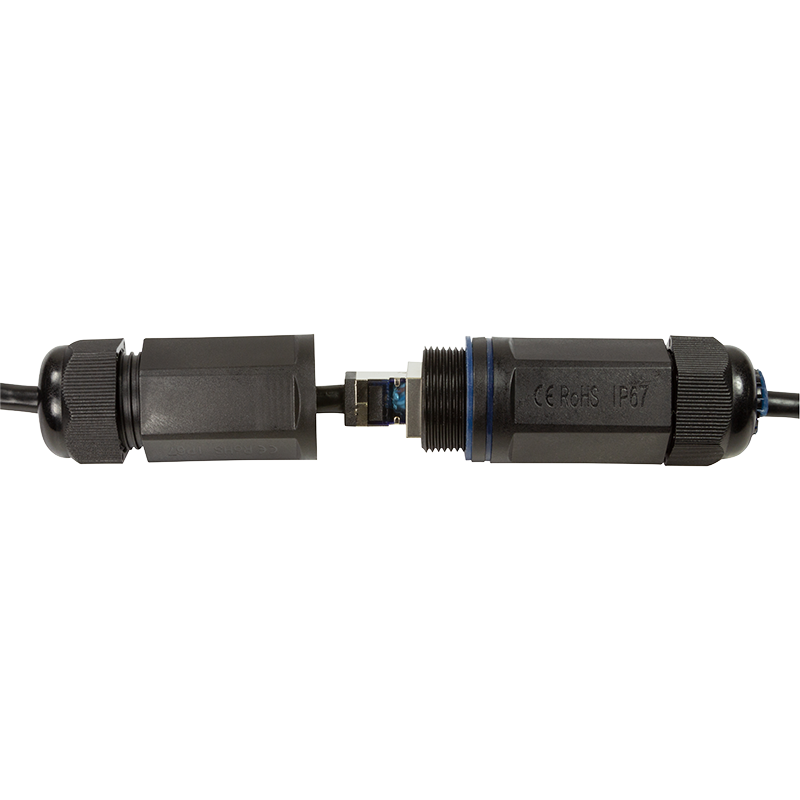

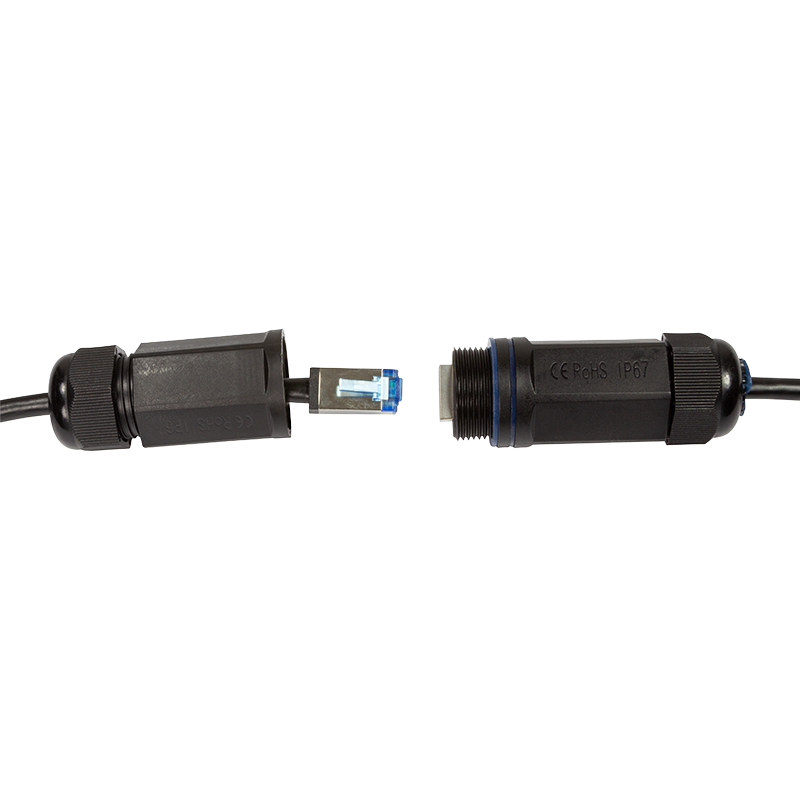

When used in conjunction with the LogiLink NP0080 Patch Cable Connector, waterproof and rugged outdoor connections can be created. Ideal for outdoor video surveillance applications.
Applications
The cable is intended for use in unprotected, harsh outdoor environments and for outdoor video surveillance applications. It is not suitable for underground installation. When used with the LogiLink NP0080 Patch Cable Connector, it can create waterproof and rugged outdoor connections.
