Outdoor Cat.6A S/FTP patch cable, black, 7.5 m
- Cat.6A Class EA, S/FTP, 26/7 AWG copper wire.

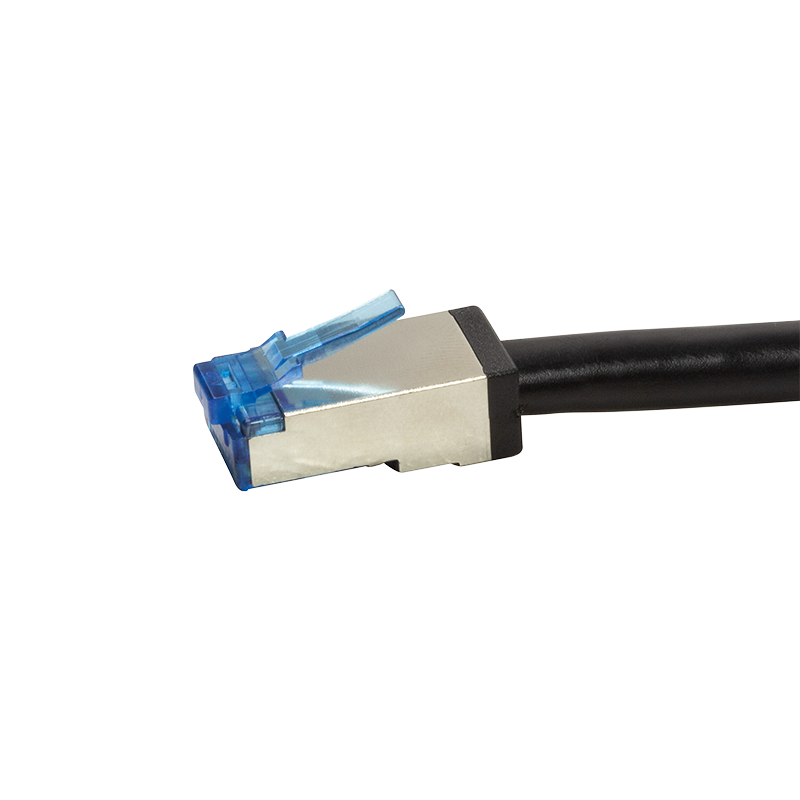

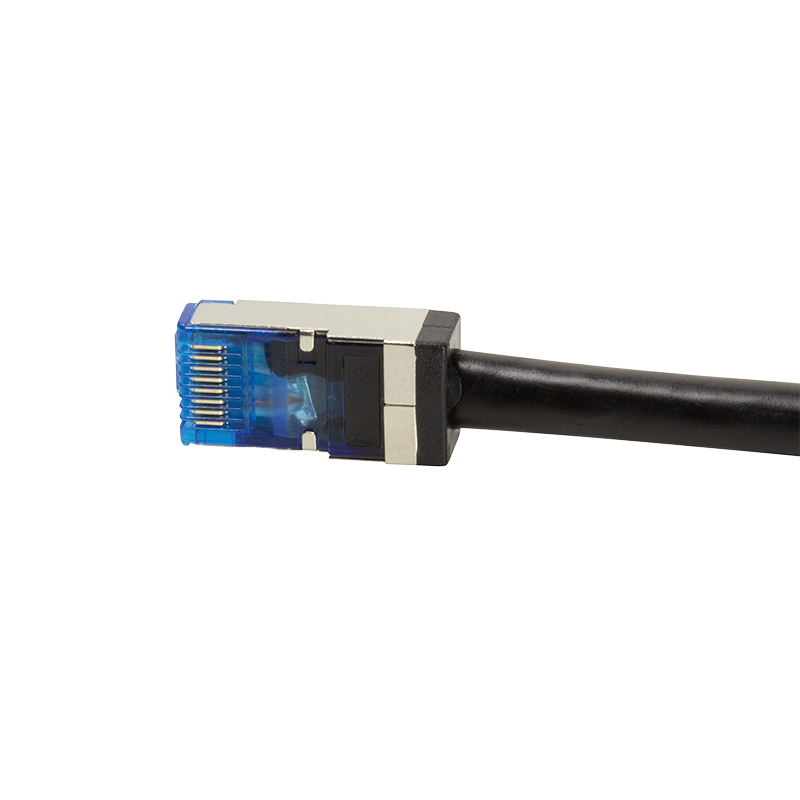

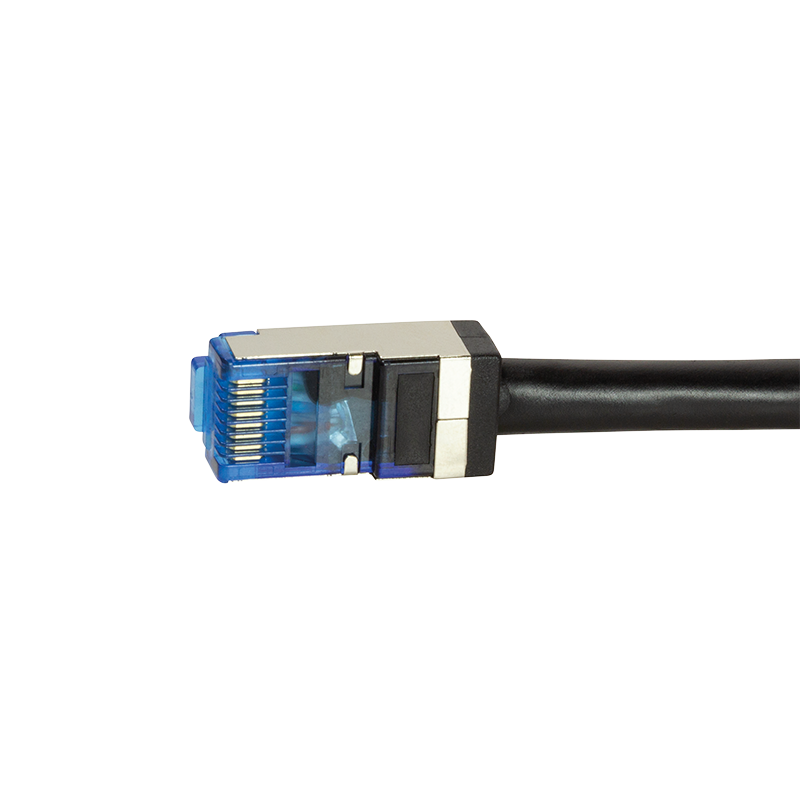

- RJ45 plug with gold-plated contacts.
- Robust strain relief without cable boot.
- UV-resistant and oil-resistant (IEC 60811-2-1).
- Splash water protected (IEC 60811-1-3).
- Flexible halogen-free black LDPE sheath.
- Outer cable diameter: 6.5 mm.
- RJ45 plug dimensions including strain relief: approx. 25.3 × 12 × 10 mm.
- Operating temperature: -40° to 65° C.
- Suitable for PoE and PoE+.
- Cable length: 7.5 m.
CQ7083S
CQ7083S — LogiLink outdoor patch cables are specially designed for use in unprotected, harsh environments, but are not suitable for underground installation. The durable polyethylene (PE) jacket provides reliable protection against the effects of weather and UV radiation. The cables are still flexible and easy to install.

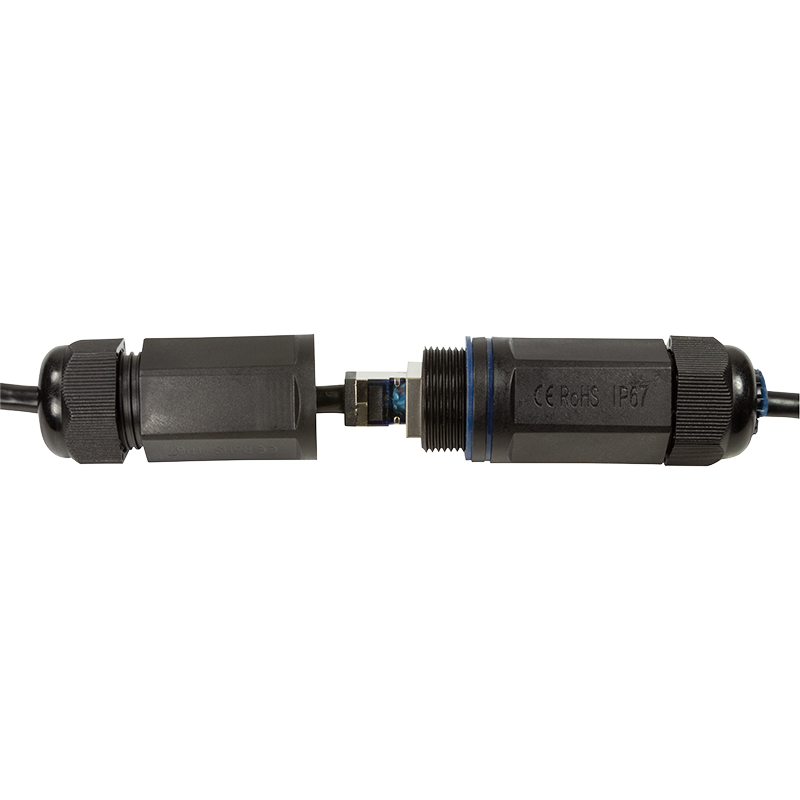

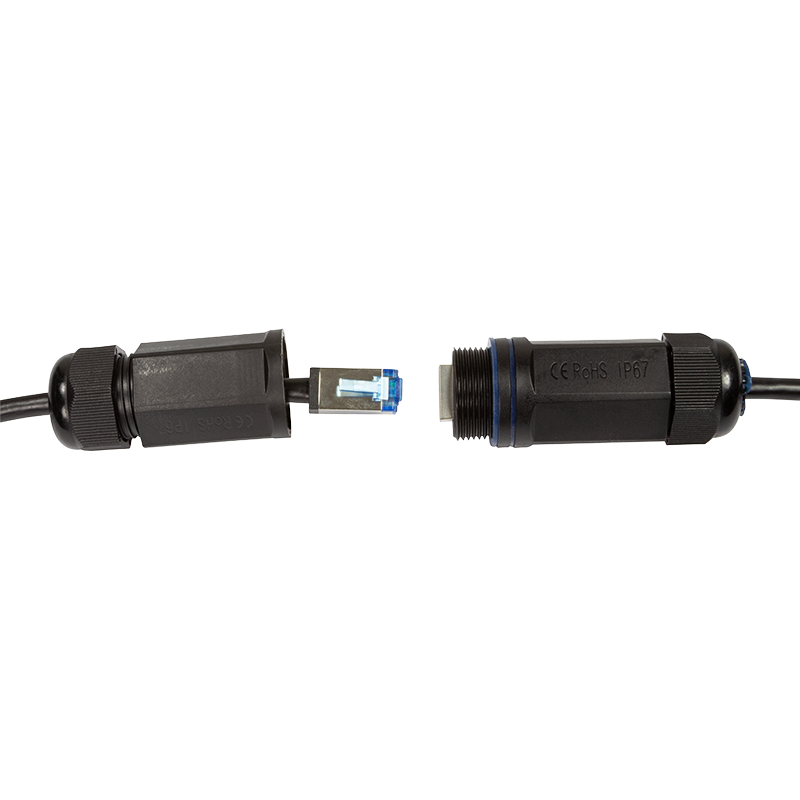

When used in conjunction with the LogiLink NP0080 Patch Cable Connector, waterproof and rugged outdoor connections can be created. Ideal for outdoor video surveillance applications.
Applications
The cable is designed for outdoor use in unprotected, harsh environments, including outdoor video surveillance applications. It is not suitable for underground installation. When used with the LogiLink NP0080 Patch Cable Connector, it can create waterproof and rugged outdoor connections.
