HDMI splitter, 1x2-Port, 4K/60 Hz, HDCP, EDID, audio extract, downscaler
- Compliant to HDMI 2.0 with a bandwidth of 6 Gbit/s 600 MHz per channel (18 Gbit/s total)
- Supports UHD 4K/60 Hz YCbCr 4:4:4 and Full 3D

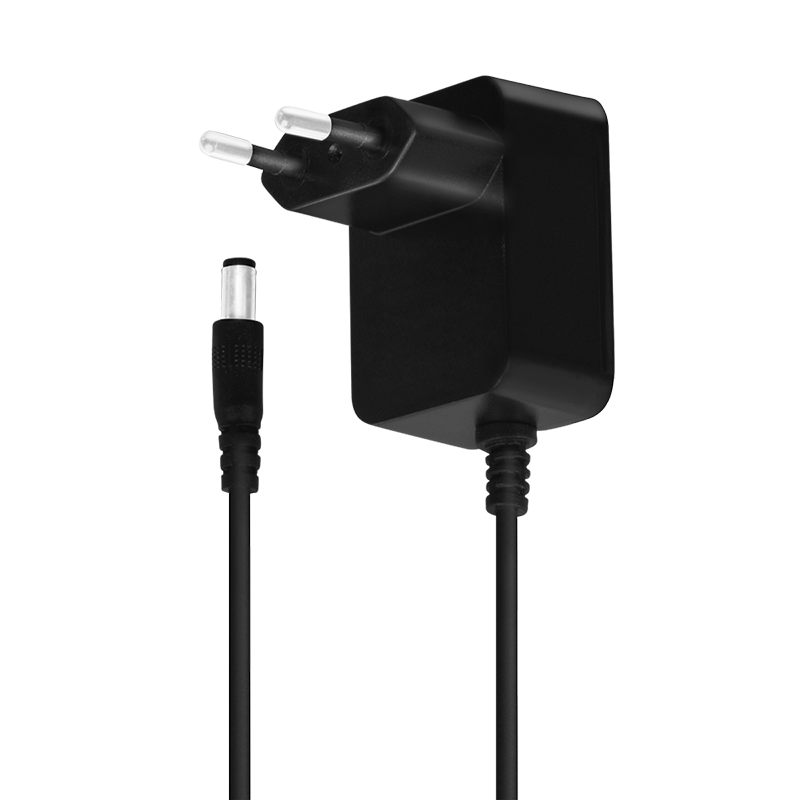

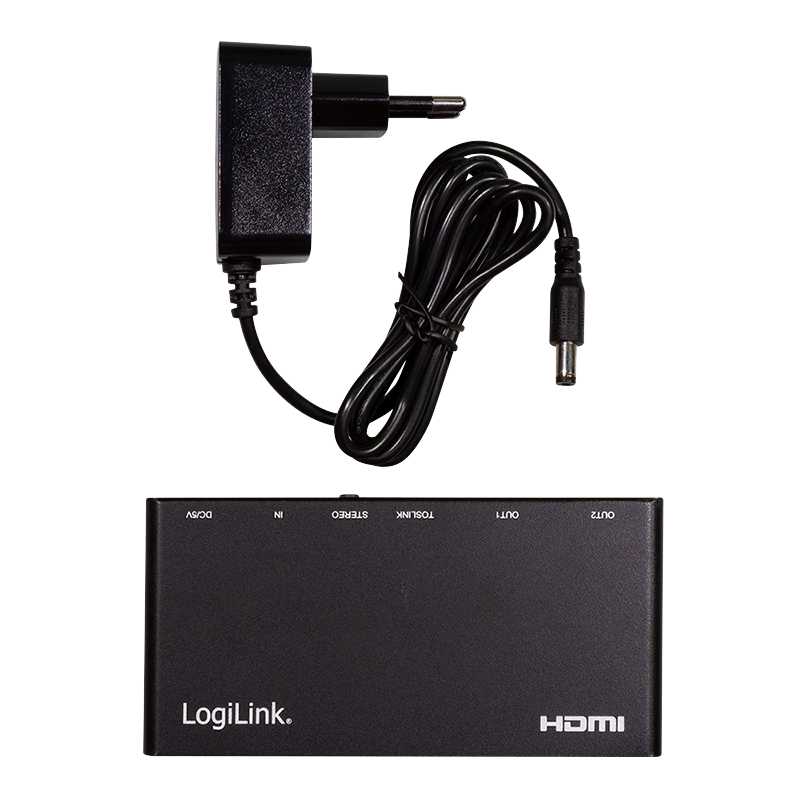

- Power supply unit: 5 V/1 A
- Support of 36 bit Deep Color (12 bit per channel)
- Compliant with HDCP 2.2

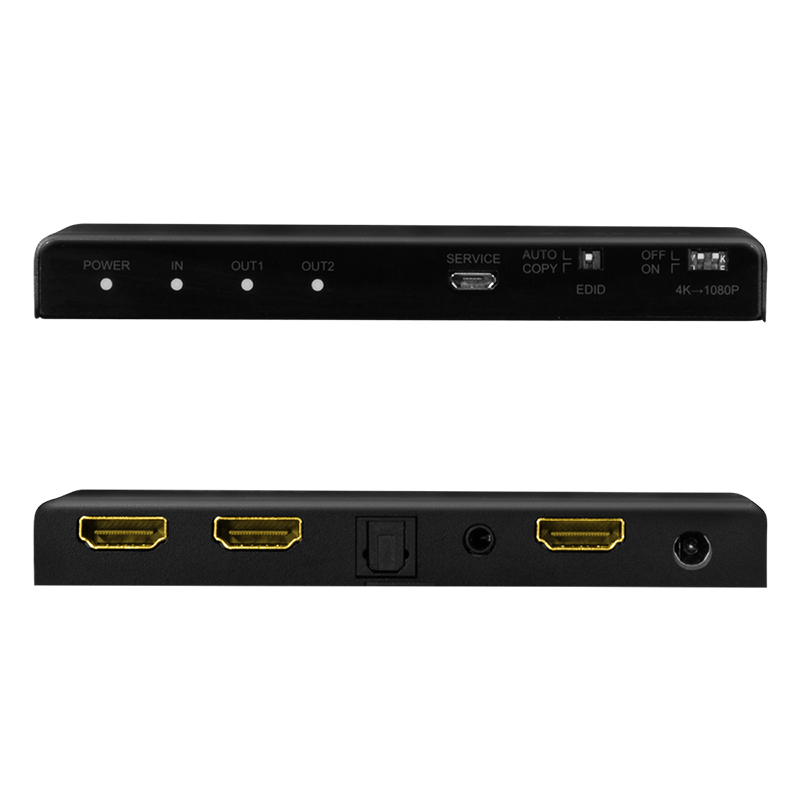

- Supports EDID management, DDC, HDR, CEC and Downscaler function
- Support uncompressed audio such as LPCM 7.1
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD)
- Metal chassis
HD0034

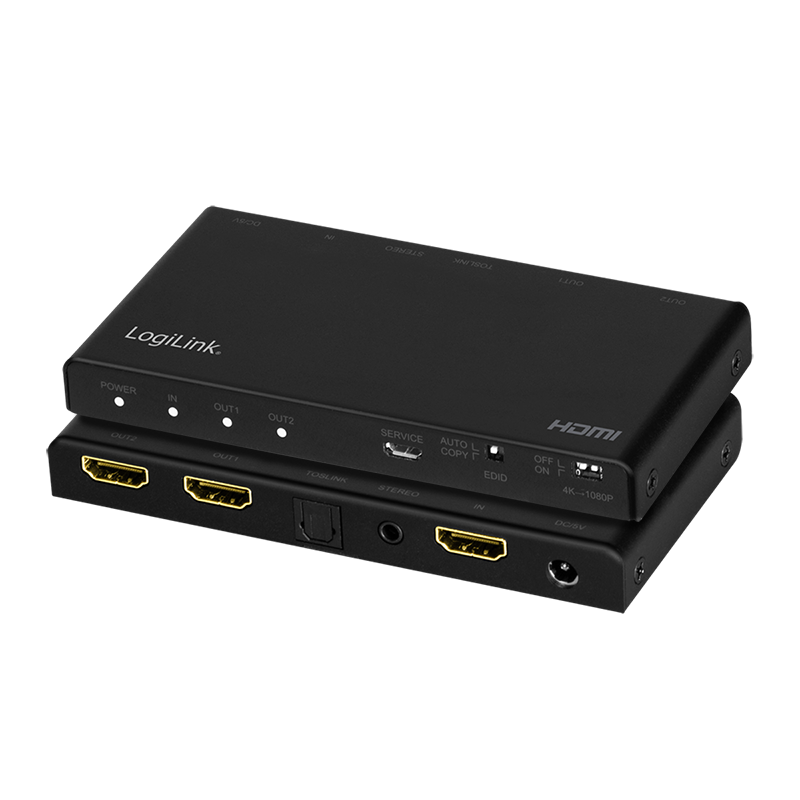

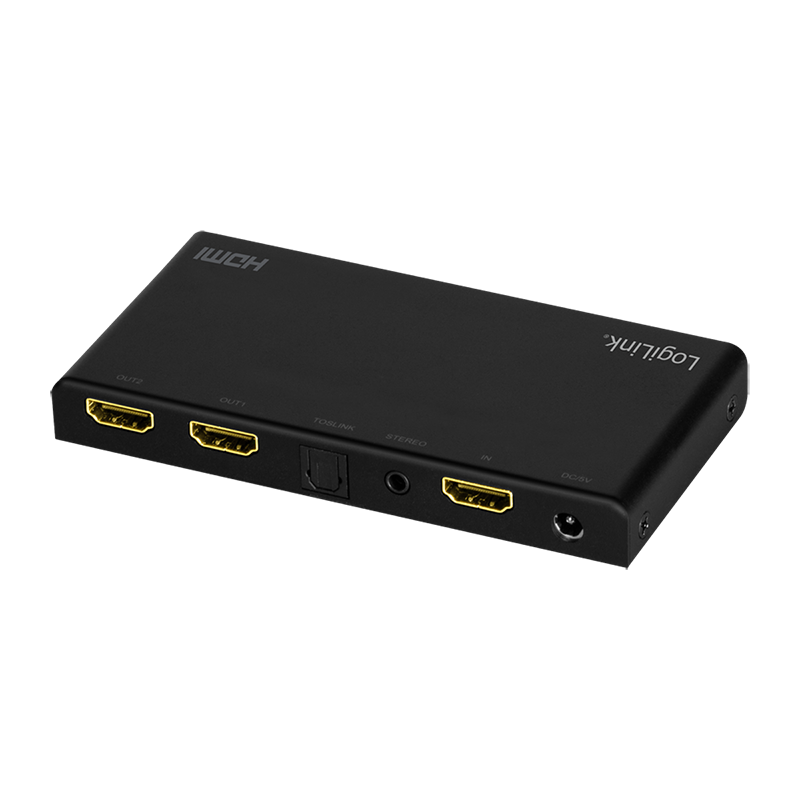

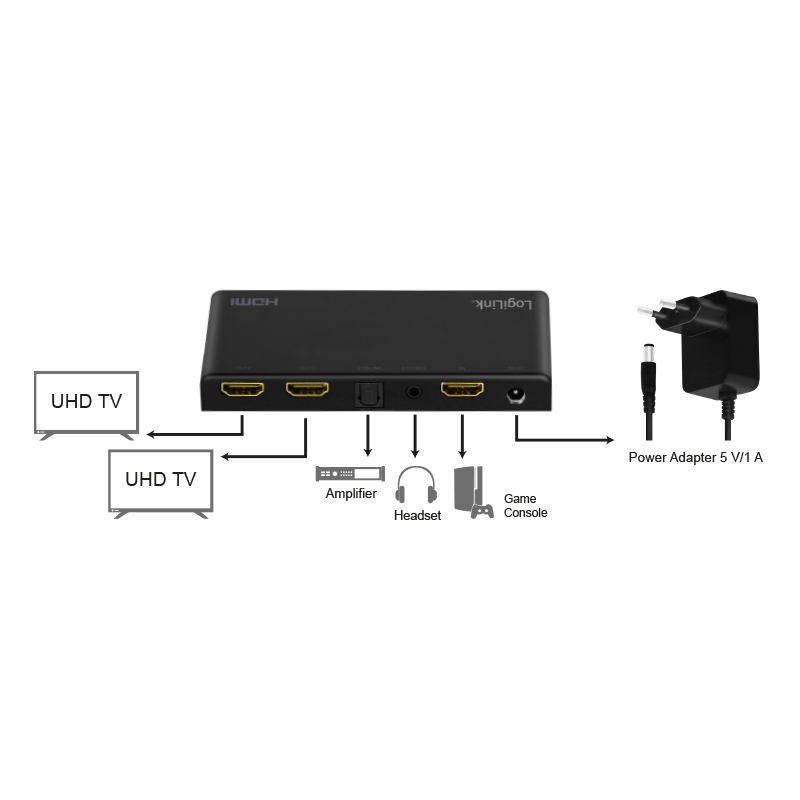

HD0034 — The HDMI splitter from LogiLink distributes audio and video signals from your HDMI device to up to two monitors, TVs or projectors in a resolution of UHD 4K/60 Hz including EDID control (auto/copy mode). In addition, HDR, HDCP 2.2, CEC and 3D are also supported – as well as a total bandwidth of 18 Gbit/s for smooth playback in brilliant quality. The integrated downscaling function supports the display of 4K content on Full HD displays, additionally both 4K and Full HD displays can be operated simultaneously.

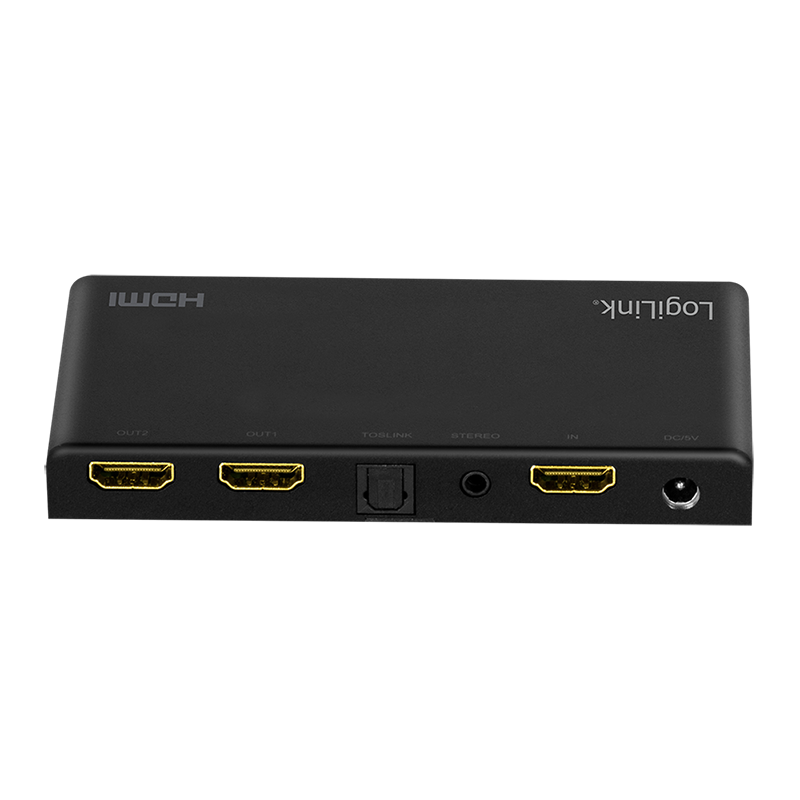

The audio extraction function for stereo and Toslink outputs allows audio signals to be transmitted via a stereo system. The manually selectable downscale function, allows the simultaneous use of different resolutions on the displays. With support for HDCP 2.2, HDR, CEC, 3D, as well as audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD, experience ultra-sharp video quality.
