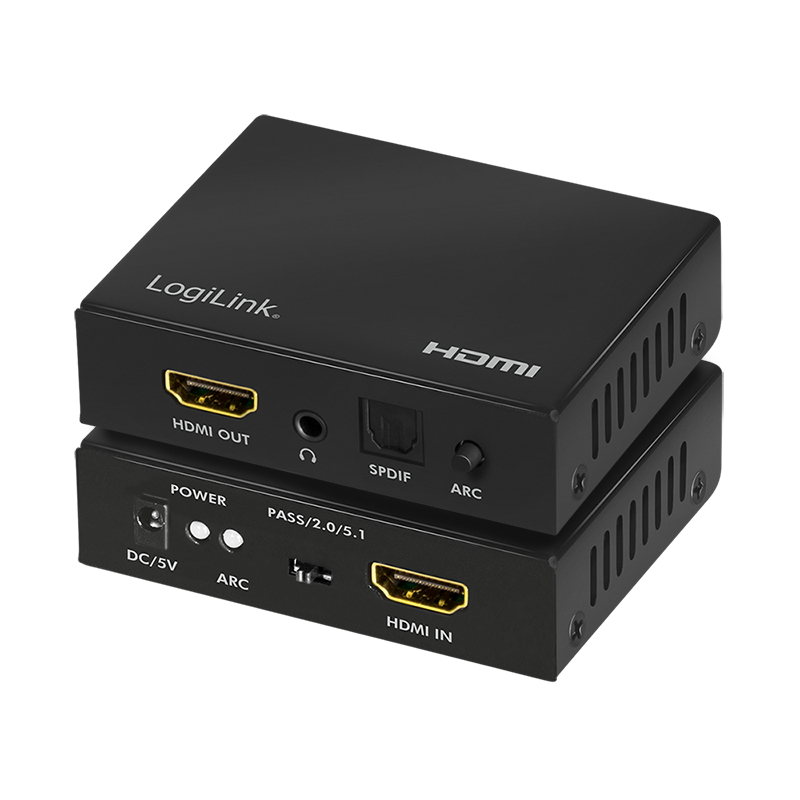

HDMI audio extractor, 2CH/5.1CH, SPDIF, 3.5 mm, 4K/60 Hz, HDR, CEC, ARC
- Over the analog & digital audio outputs you can tap the audio signal from any HDMI input and output it to an amplifier or speaker
- Compliant to HDMI 2.0 with a bandwidth of 6.0 Gbit/s at 600 MHz per channel (18 Gbit/s total)

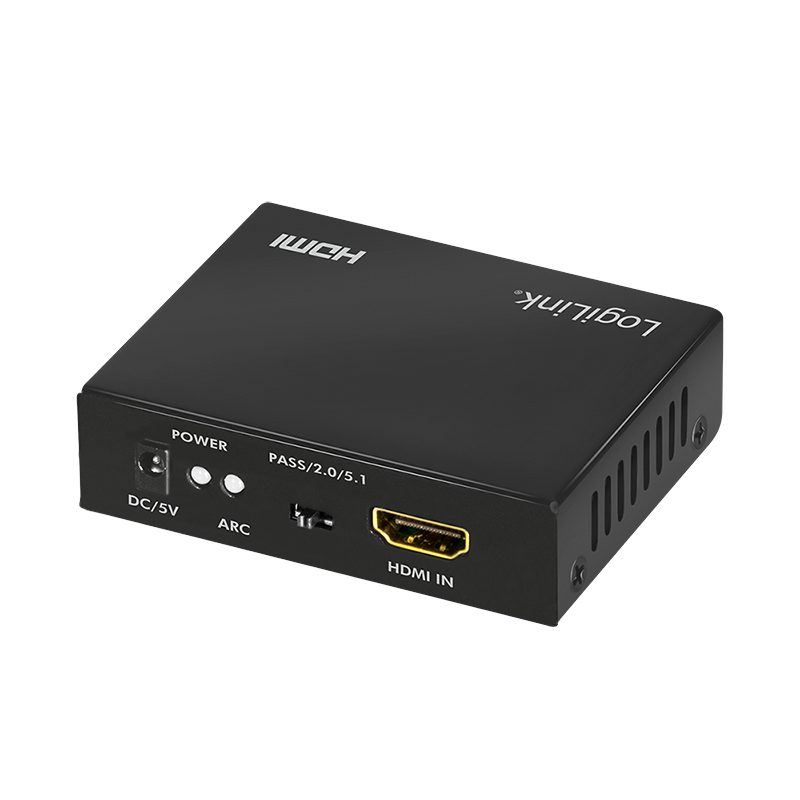

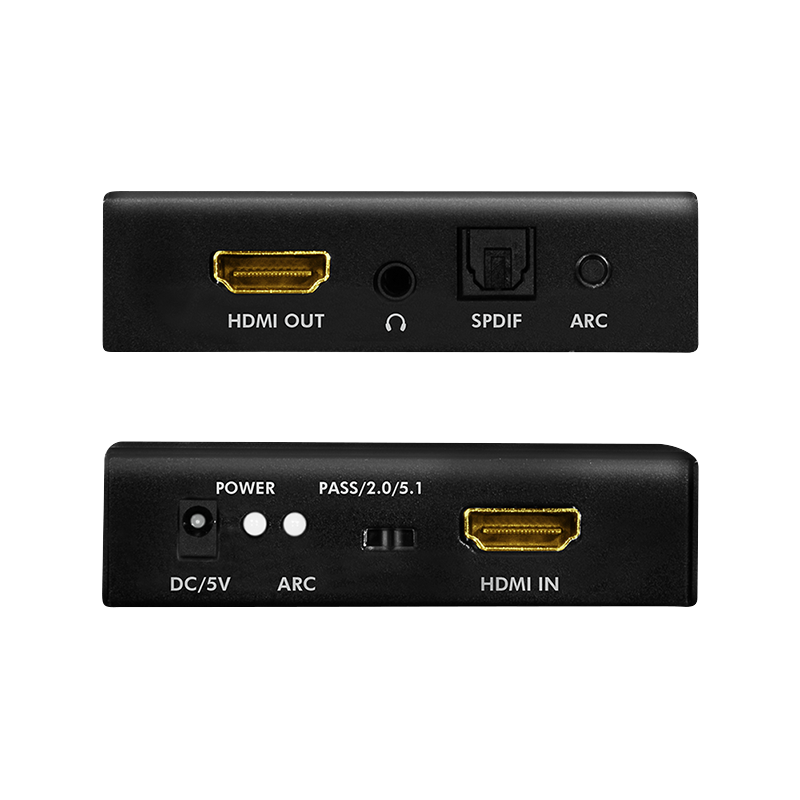

- Connection In: 1x HDMI-A, DC Power; Connection Out: 1x HDMI-A, SPDIF (Toslink), 3.5 mm stereo
- Supports Ultra HD 4K/60 Hz (YUV 4:4:4) and Full 3D

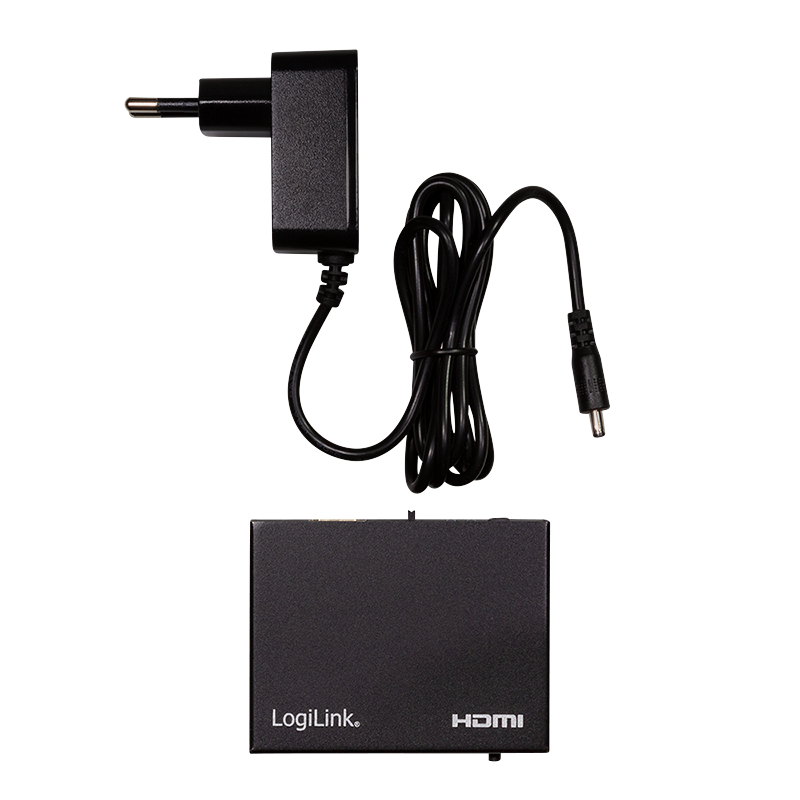

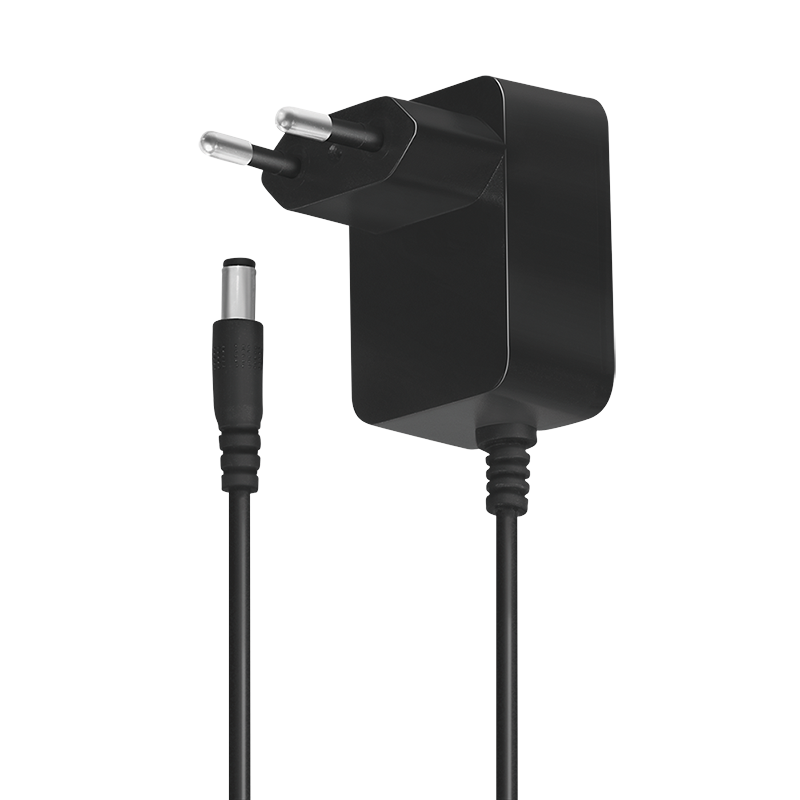

- Power supply unit: 5 V/1 A
- Support of 36 bit Deep Color (12 bit per channel)
- Compliant with HDCP 2.2
- Supports DDC, HDR, CEC and ARC function
- Supports 2.0CH/5.1CH/PASS audio switching
- Supported audio Data: HDMI: DTS-HD Master Audio™, Dolby TrueHD; SPDIF: DTS/Dolby Digital
- Metal chassis
- Plug-and-play – no driver installation needed
HD0055

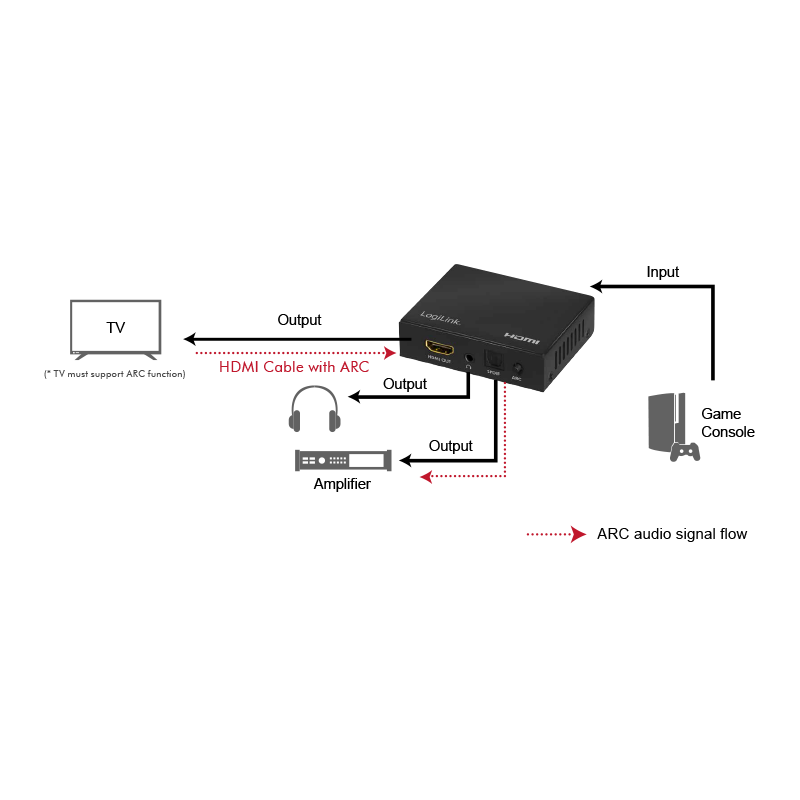

HD0055 — This LogiLink HDMI extractor allows you to split audio and video signals up to 4K/60 Hz. So you are no longer bound to the speakers of your TV, but can easily integrate your surround system. Projectors without speakers can also still be used and you save unnecessary costs for retrofitting.
The HDMI signal is passed on in parallel to a display (e.g. monitors, TVs or beamers) with support for HDCP 2.2, HDR, CEC as well as 3D. The audio transmission in DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD as well as the connection of an external AV receiver (ARC), also leaves nothing to be desired.
