HDMI switch, 4x1-Port, multiviewer, 1080p/60 Hz, scaler, seamless, RC
- Allows seamless switching between four HDMI signal sources on one screen
- Compliant to HDMI 1.3 with a bandwidth of 2.5 Gbit/s at 225 MHz per channel (7 Gbit/s total)

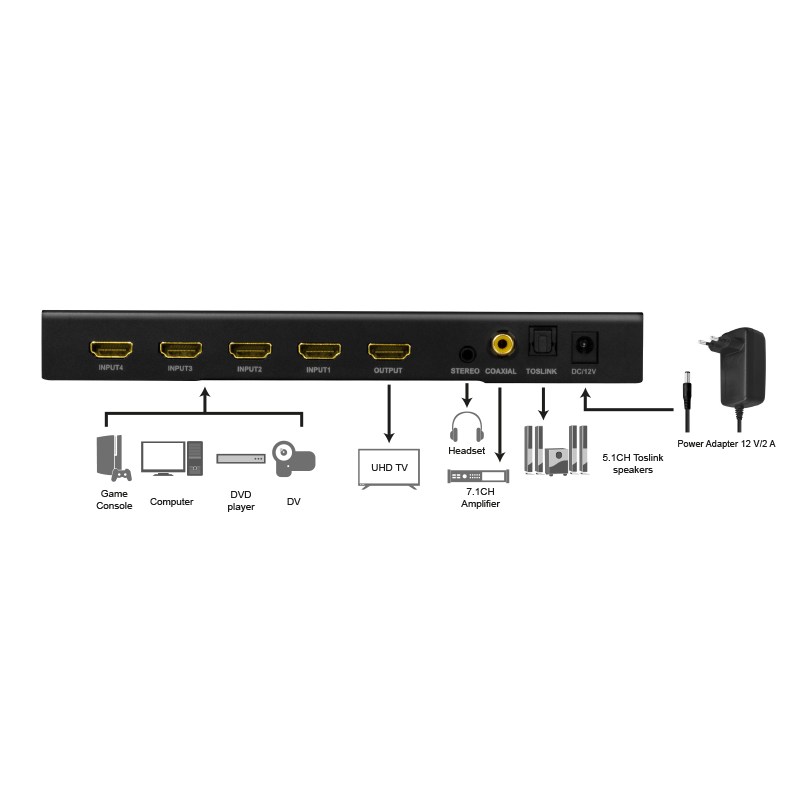

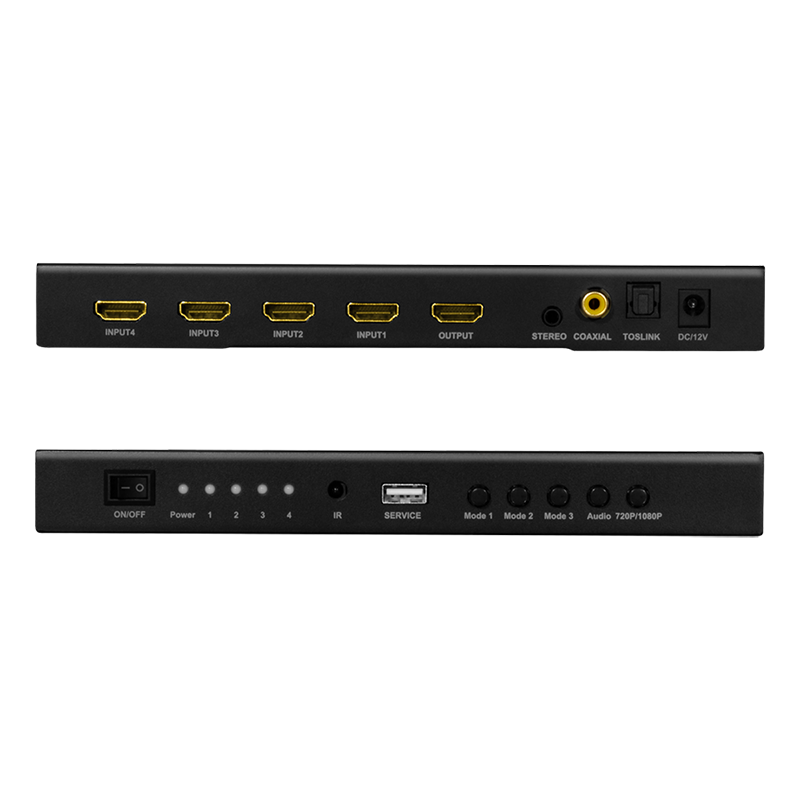

- Connection in: 4x HDMI-A, DC power, connection out: HDMI-A, 3.5 mm stereo, Coaxial, SPDIF (Toslink)
- Supports Full HD 1080p/60 Hz and Full 3D

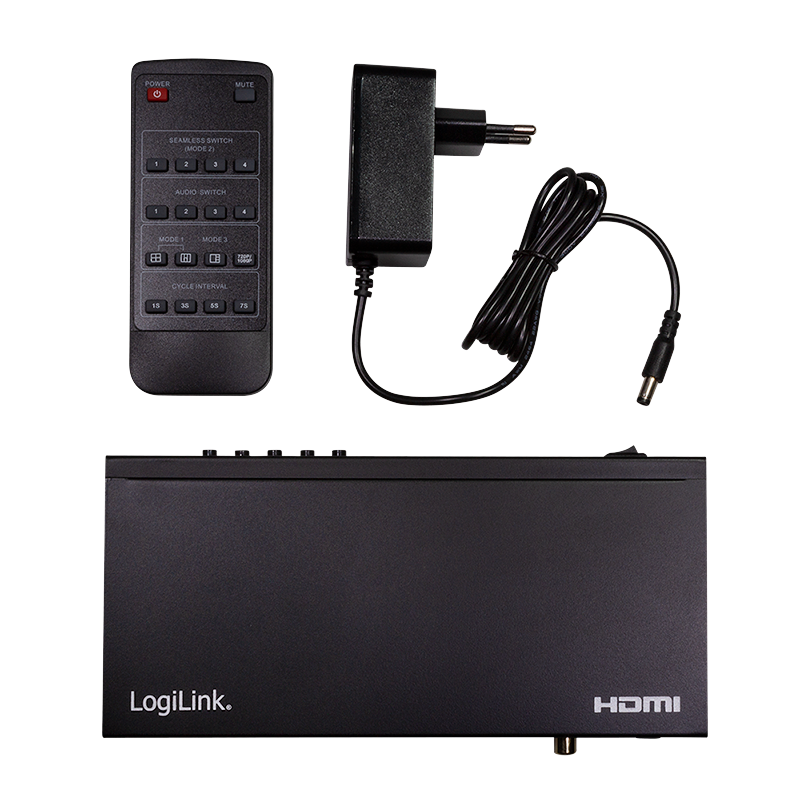

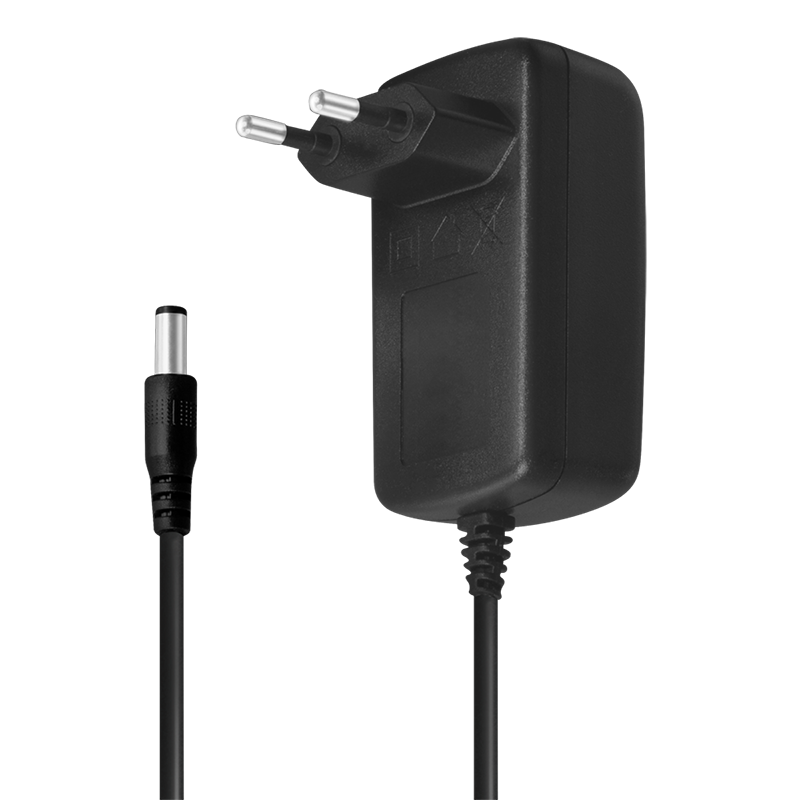

- Power adapter 12 V/2 A
- Support of 36 bit Deep Color (12 bit per channel)
- Compliant to HDCP 1.3 (only input)
- Supports DDC and Multiviewer (up to 4 pictures on one screen) function
- Support scaler up, scaler down function
- Support uncompressed audio such as LPCM 2.0/5.1/7.1CH 44.1/48 KHz
- Support compressed audio such as DTS, Dolby Digital
- Metal chassis

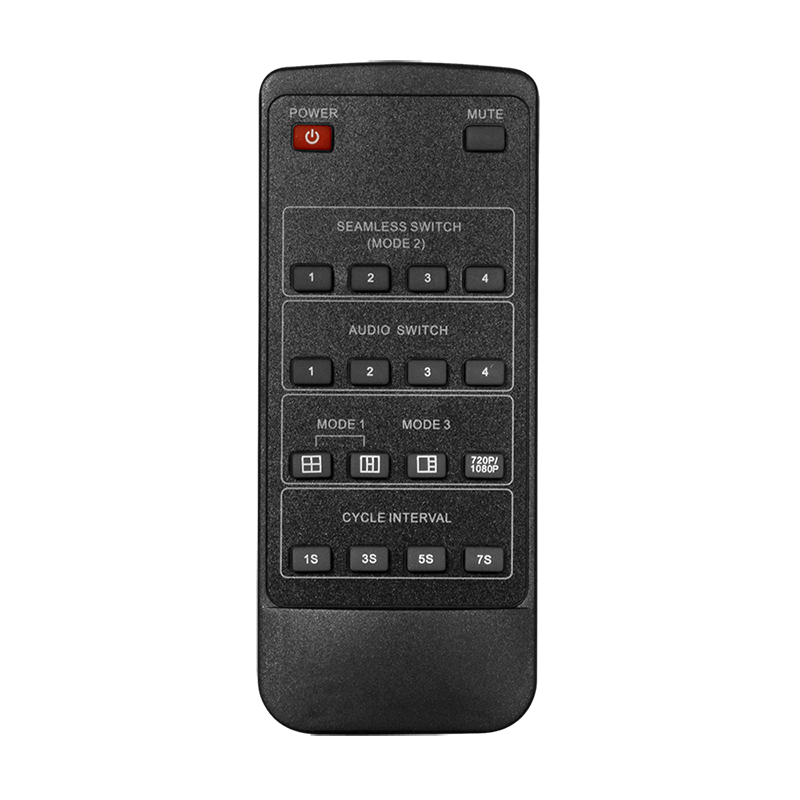

- With IR remote control
HD0052

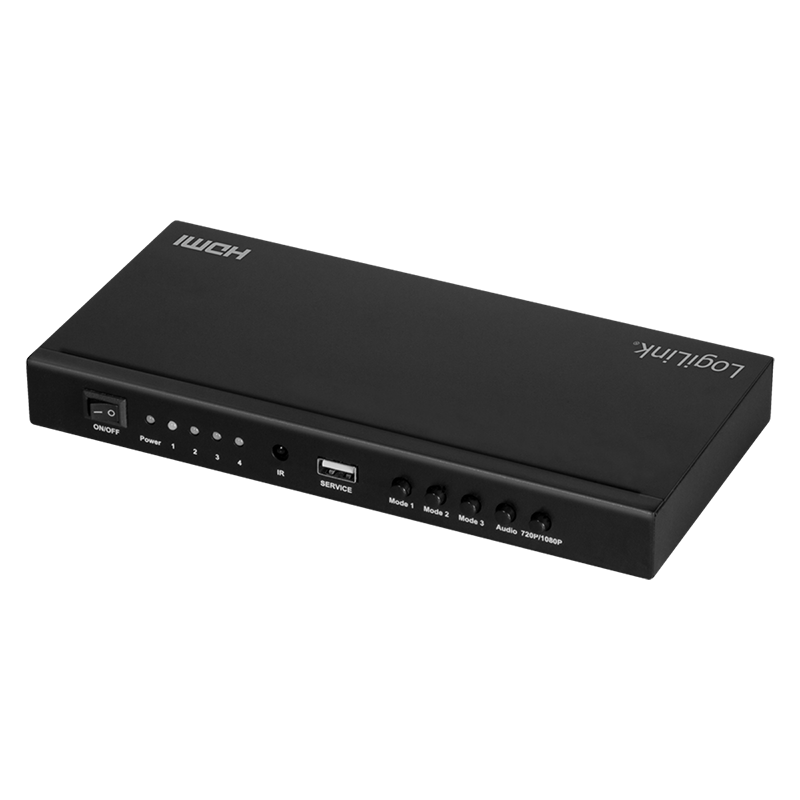

HD0052 — The LogiLink Full HD HDMI multiviewer switch with Seamless Switching (instant switching without time delay) allows simultaneous display of four HDMI input sources (video camera, DVD/Blu-ray player, game console, streaming box, etc.) on one monitor, TV or projector. The integrated downscaling function supports the simultaneous display of different resolutions up to Full HD (1080p/60 Hz). The functions can be selected by remote control or alternatively by switch on the switch itself.
Troublesome reconnecting of cables is a thing of the past. Experience media content in sharp resolution with support for HDCP 1.3 and 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD, also leaves nothing to be desired.
