HDMI switch, 4x1-Port, multiviewer, 4K/30 Hz, scaler, seamless, RC
- Allows seamless switching between four HDMI signal sources on one screen
- Compliant to HDMI 1.4 with a bandwidth of 3 Gbit/s at 300 MHz per channel (9 Gbit/s total)

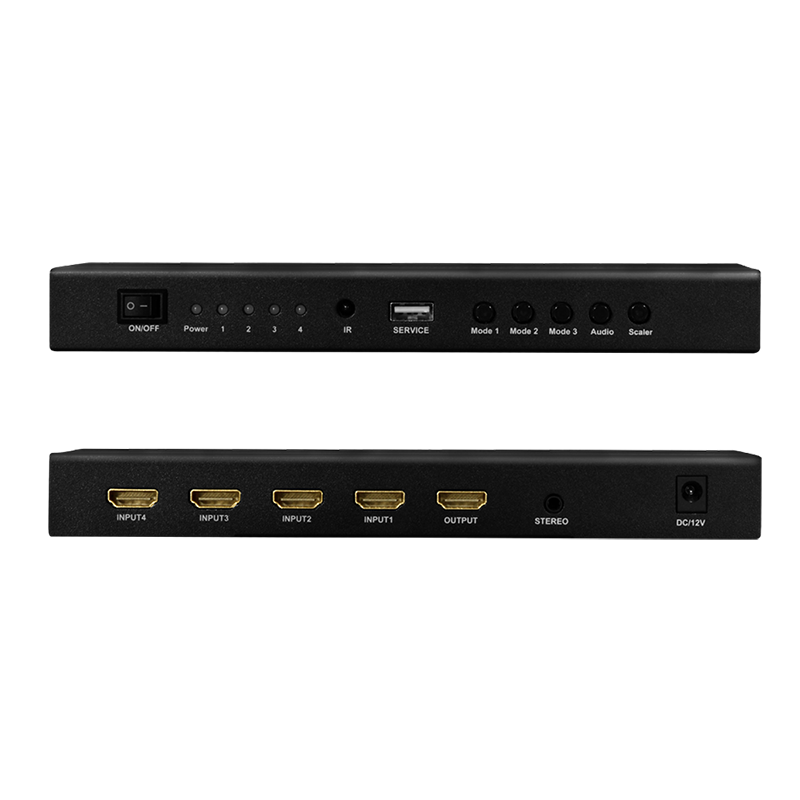

- Connection in: 4x HDMI-A, DC power, connection out: HDMI-A, 3.5 mm stereo
- Supports Ultra HD 4K/30 Hz and Full 3D

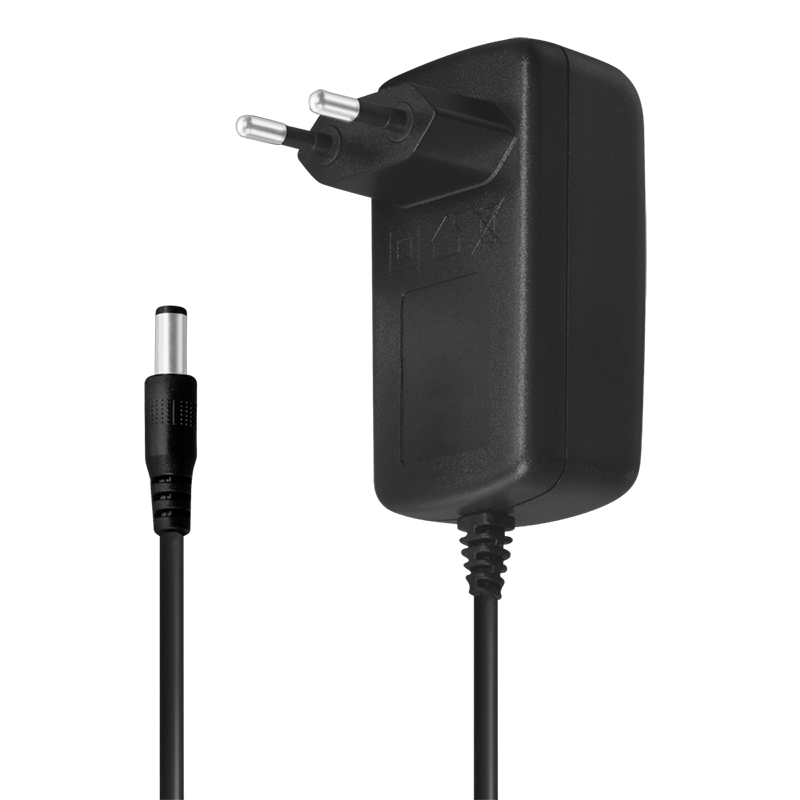

- Power adapter 12 V/2 A
- Support of 36 bit Deep Color (12 bit per channel)
- Compliant to HDCP 1.4 (only input)
- Supports DDC and Multiviewer (up to 4 pictures on one screen) function
- Support scaler up, scaler down function
- Support uncompressed audio such as LPCM 2.0/5.1/7.1CH 44.1/48 KHz
- Support compressed audio such as DTS, Dolby Digital
- Metal chassis

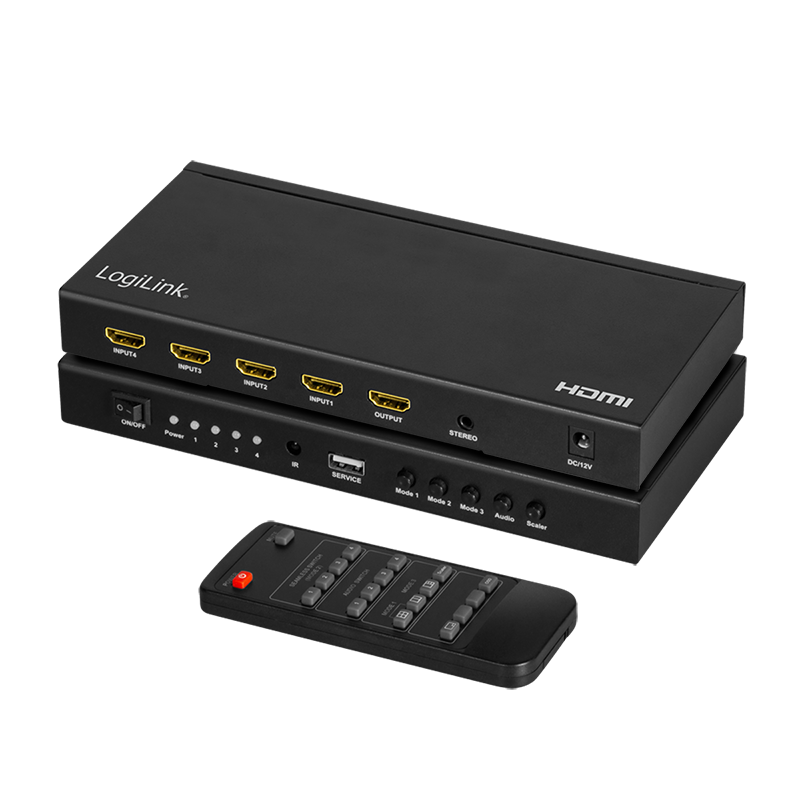

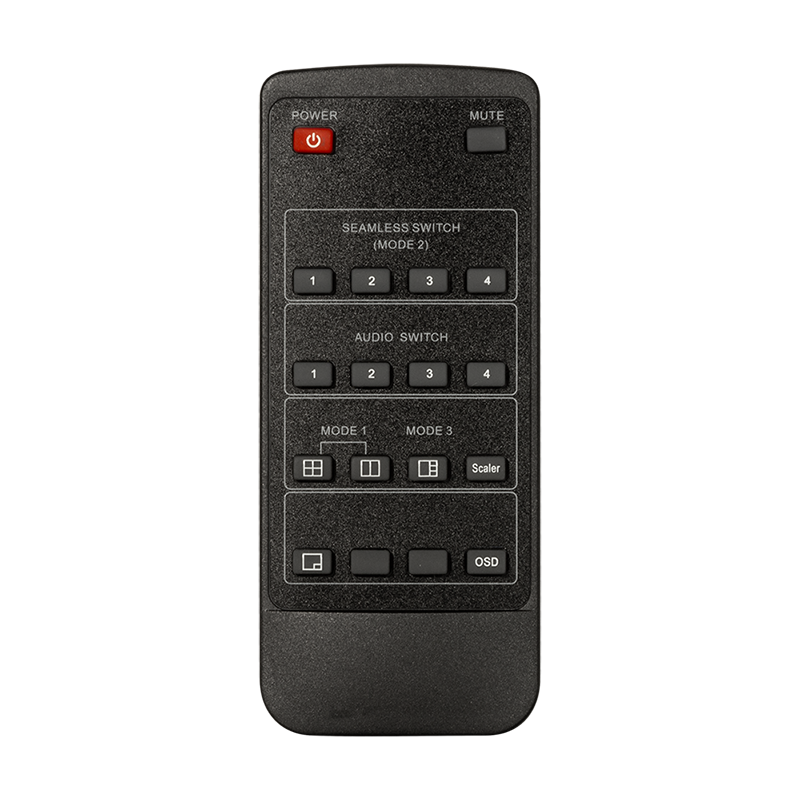

- With IR remote control
HD0053

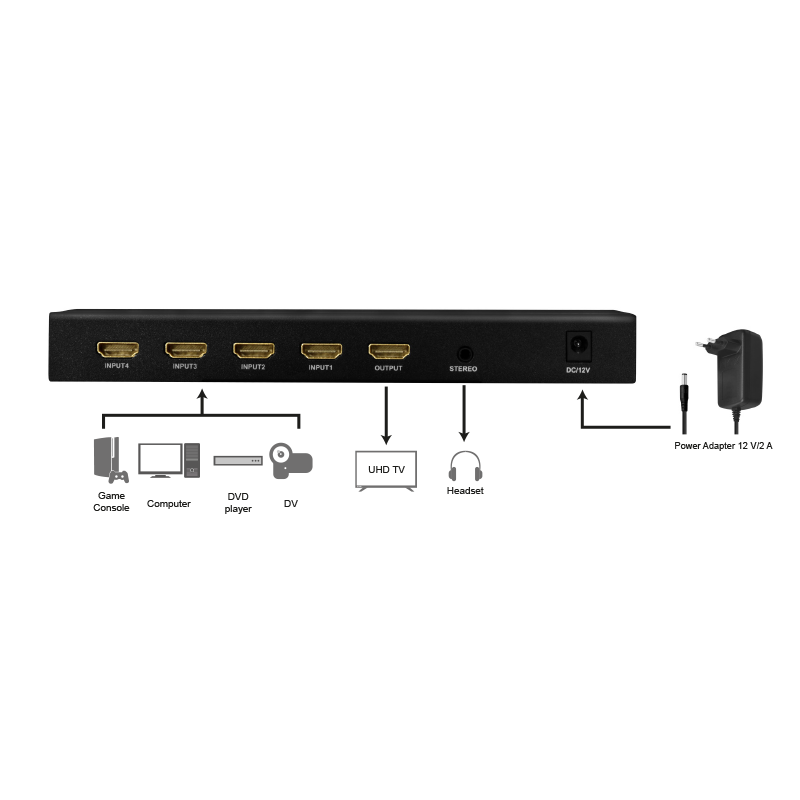

HD0053 — The LogiLink Full HD HDMI multiviewer switch with Seamless Switching (instant switching without time delay) allows simultaneous display of four HDMI input sources (video camera, DVD/Blu-ray player, game console, streaming box, etc.) on one monitor, TV or projector. The integrated downscaling function supports the simultaneous display of different resolutions up to Ultra HD (4K/30 Hz). The functions can be selected via remote control or alternatively via switch on the switch itself.
Annoying plugging of cables is a thing of the past. Experience media content in ultra-sharp resolution with support for HDCP 1.4 and 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD, also leaves nothing to be desired.
