What mounting or installation method does the product use?

Flush-mount or cable duct installation

Cat.6A wall outlet, flush-mounted, 2x RJ45, shielded, signal white, horizontal cable entry

Name: Cat.6A wall outlet, flush-mounted, 2x RJ45, shielded, signal white, horizontal cable entry
Brand: LogiLink
SKU: NP0123

Brand:LogiLink

Part NoNP0123

EAN:4052792028645

PU:64

Network wall outlet Cat.6A fully shielded
Cat 6A permant link conform to ISO/IEC 11801
Horizontal cable entry with strain relief

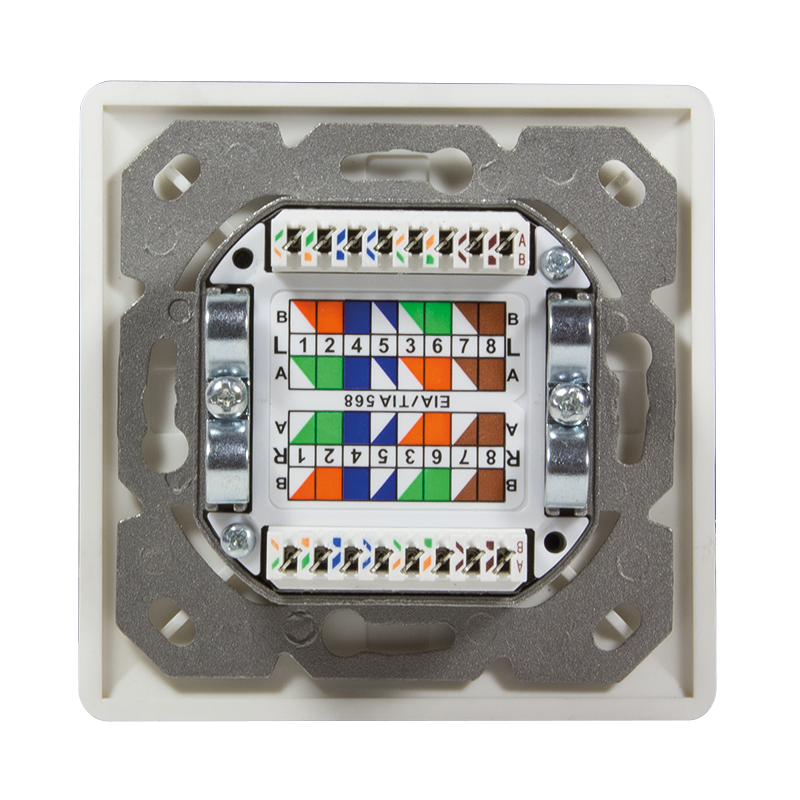

LSA termination, 22-24AWG

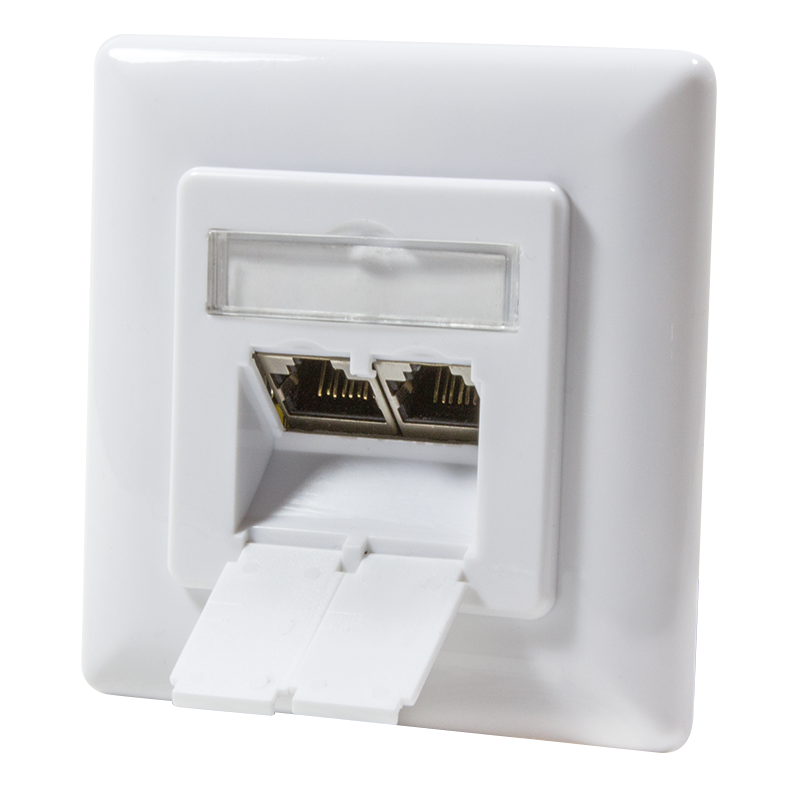

2 shielded R45 jacks 40° angled
German type outlet (80 x 80 mm)
Flush-mount or cable duct installation
Color: signal white, RAL 9003
Suitable surface back box: NP0223
Supports PoE, PoE+ and PoE++

Description

NP0123

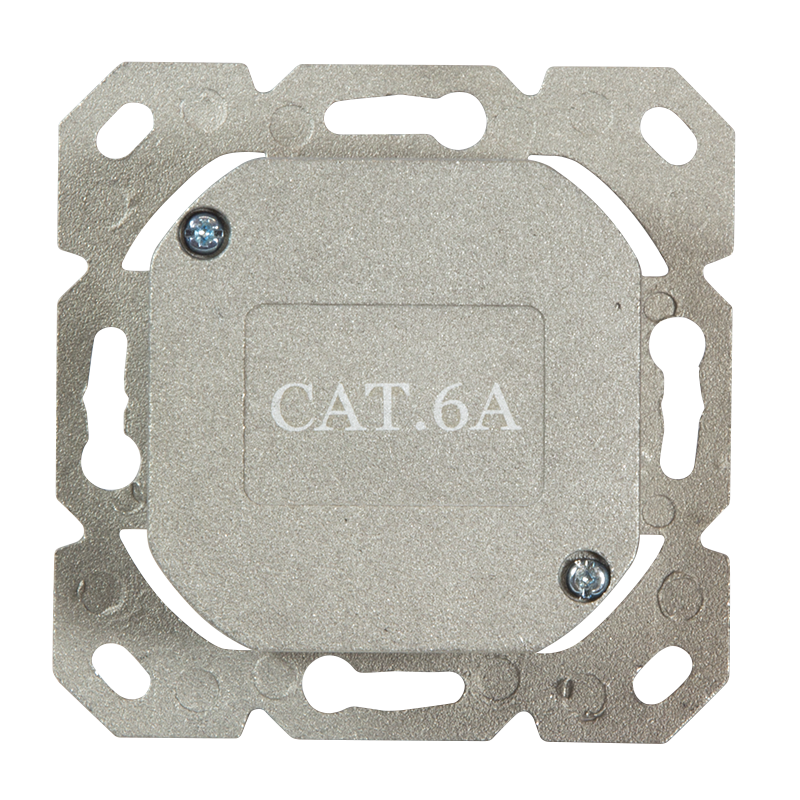

NP0123 — Shielded RJ45 connection box Cat.6A with angled outlet and 2 RJ45 ports. Specified up to 500 MHz, this socket is suitable for all data transmissions up to 10 Gigabit Ethernet, including PoE and PoE+. The sturdy die-cast zinc housing with combined shield contact and strain relief is suitable for flush-mounted or cable duct installation; suitable frames are available for surface mounting.
