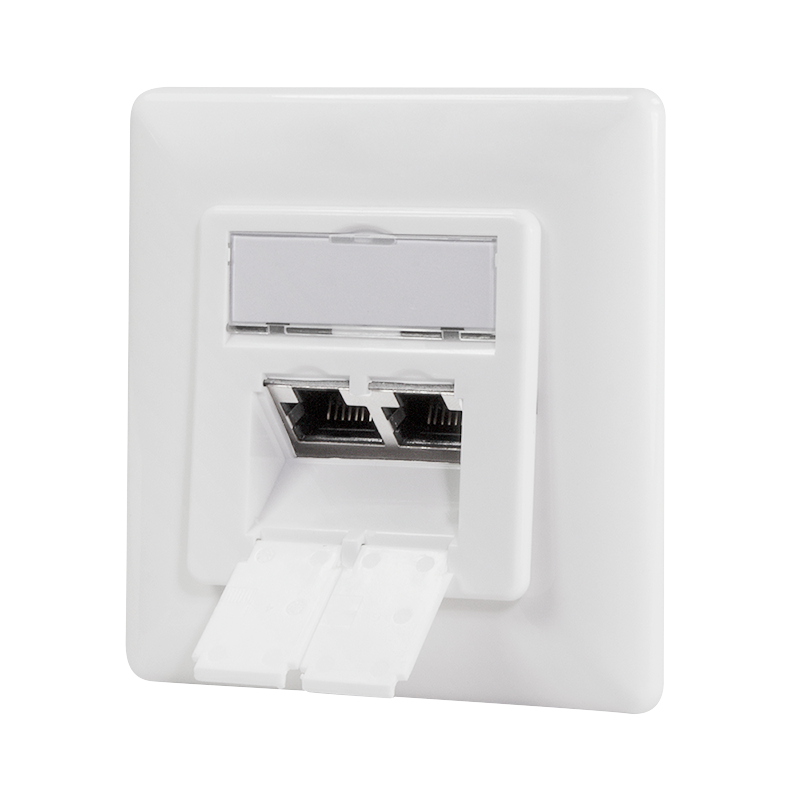

Cat.6A wall outlet 2x RJ45, shielded, signal white, vertical cable entry

Name: Cat.6A wall outlet 2x RJ45, shielded, signal white, vertical cable entry
Brand: LogiLink
SKU: NP0127

Brand:LogiLink

Part NoNP0127

EAN:4052792028607

PU:64

Network wall outlet Cat.6A fully shielded
Cat.6A permant link conform to ISO/IEC 11801

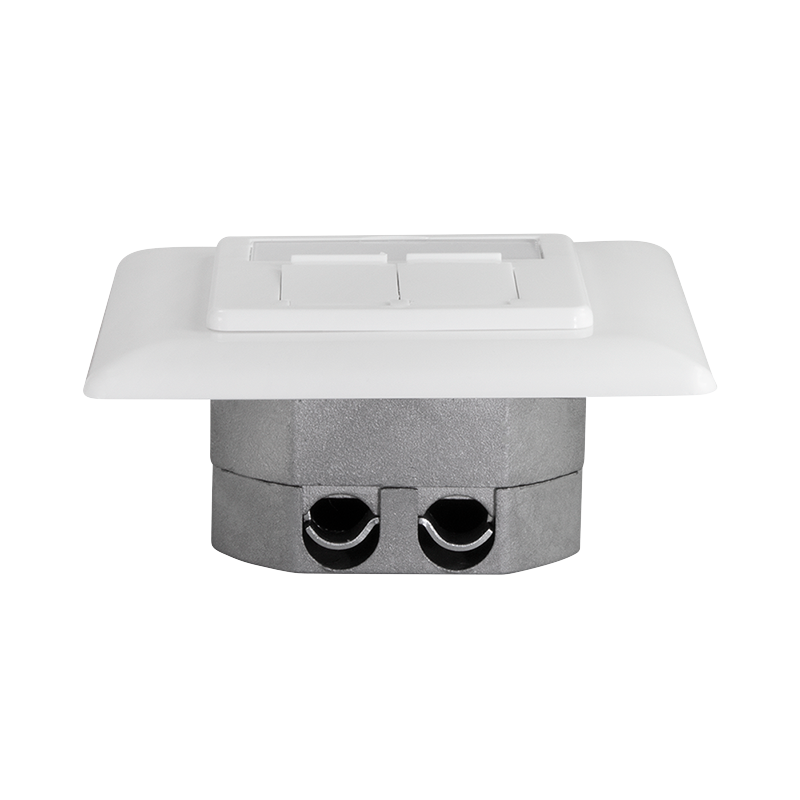

Vertical cable entry with strain relief

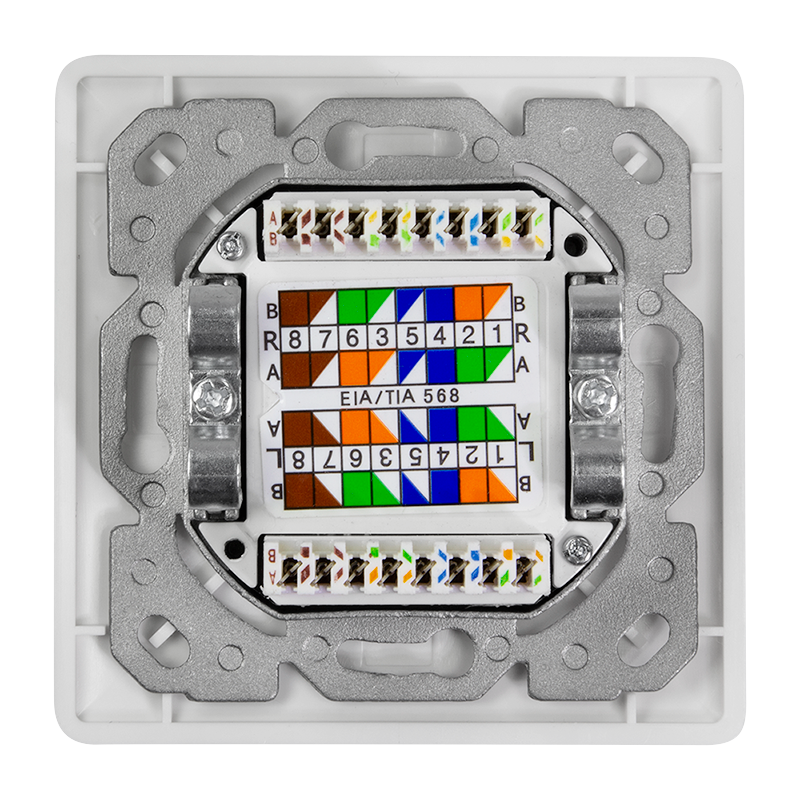

LSA termination, 22–24 AWG
2 shielded R45 jacks, 40° angled
German type outlet (80x80 mm)
Flush-mount or cable duct installation
Color: signal white, RAL 9003
Suitable surface back box: NP0223
Supports PoE, PoE+ and PoE++

Description

NP0127

NP0127 — Shielded Cat.6A network outlet with two angled RJ45 ports. Specified up to 500 MHz, this socket is suitable for all data transmissions up to 10 Gigabit Ethernet including PoE and PoE+.

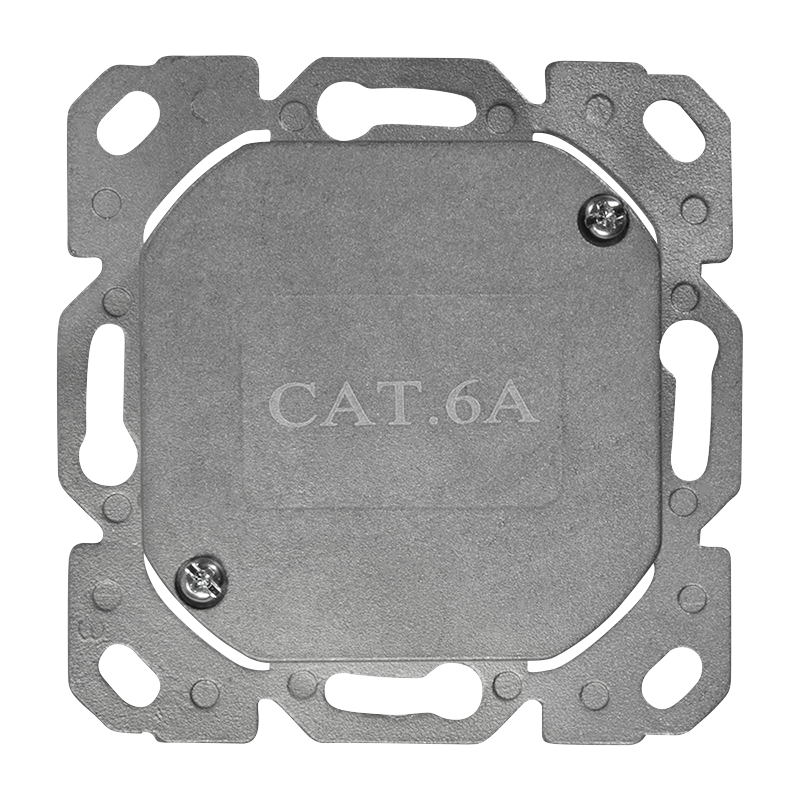

The stable zinc die-cast housing with combined shield contact and strain relief is suitable for flush-mount or cable duct installation. It is also suitable for surface installation by using back box NP0223.
