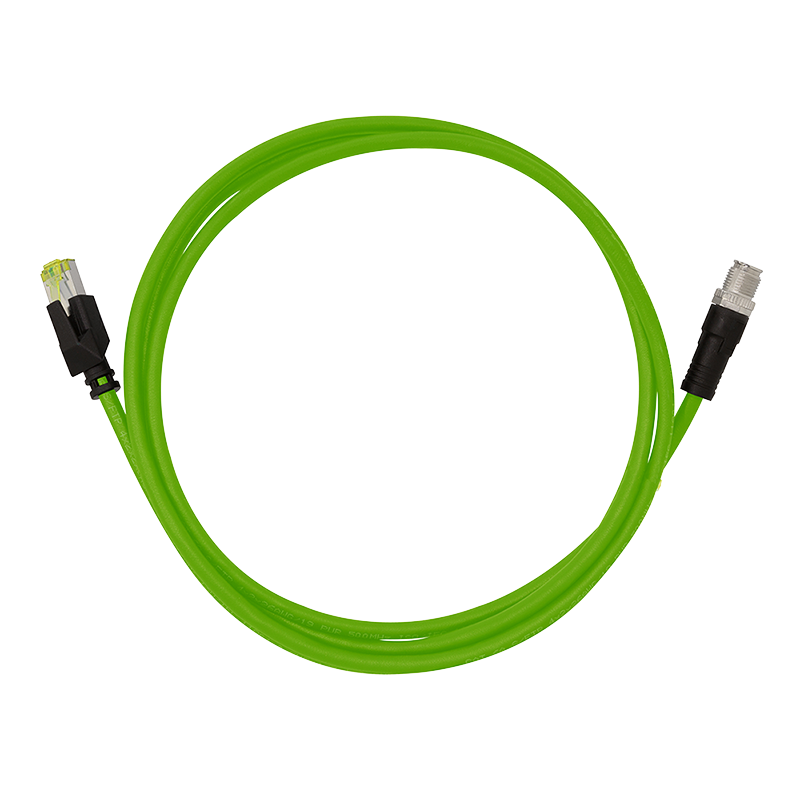

M12 Cat.6A industrial PUR patch cable, M12 X-coded to RJ45, 0.25 m
- M12 Industrial Ethernet cable, X-coded.

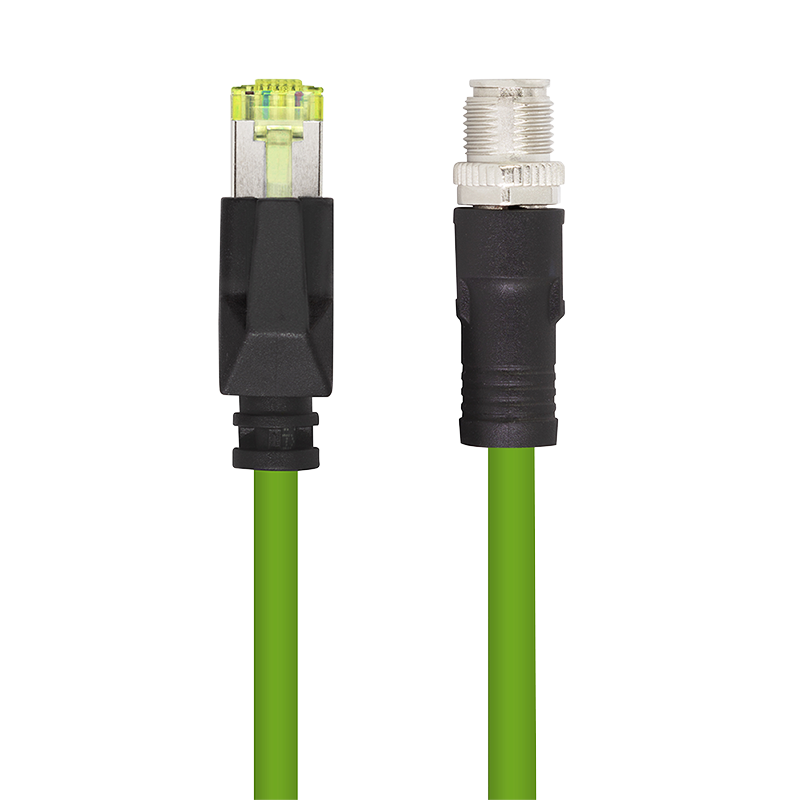

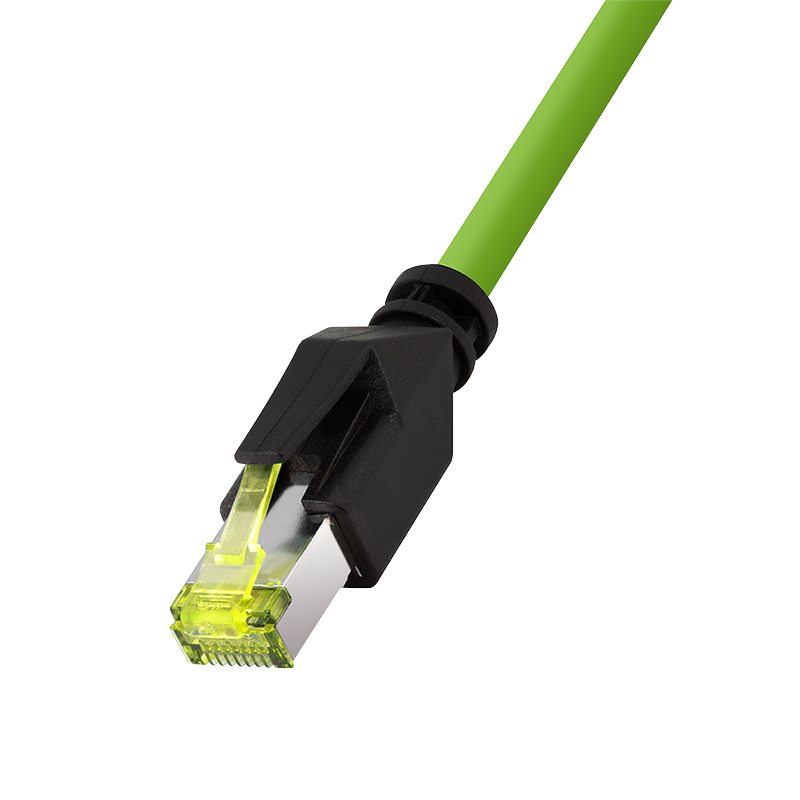

- Straight M12 connector and straight RJ45 connector.
- Shielded flexible PUR cable, S/FTP, 26/19AWG.
- Cat.6A Class EA channel (ISO/IEC 11801).
- M12 X-coding for 10 Gbit/s (IEC 61076-2-109).
- Suitable for drag chain (2 PfG 2577/08.16).
- Oil and UV resistance (EN 60811-2-1, IEC 60068-2-5).
- Acid resistance and hydrolysis resistance.
- Extended operating temperature: -40 to +90 °C.
- Supports PoE IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt.
- Halogen free, low smoke (IEC 60754-2, IEC61034).
- Flame retardant (IEC60332-1).
CQM015S
CQM015S — High quality connection cable for secure, high performance data transmission in industrial production. This drag chain compatible patch cable provides network connectivity for components with M12 connectors.
It is ideal for increased mechanical stress in harsh environments and industrial applications. The weatherproof cable is oil, UV, acid, temperature and hydrolysis resistant, halogen free and flame retardant.
Applications
The patch cable is intended for data transmission in industrial production and for providing network connectivity to components with M12 connectors. It is suitable for drag chains, environments with increased mechanical stress and industrial applications in harsh environments.
