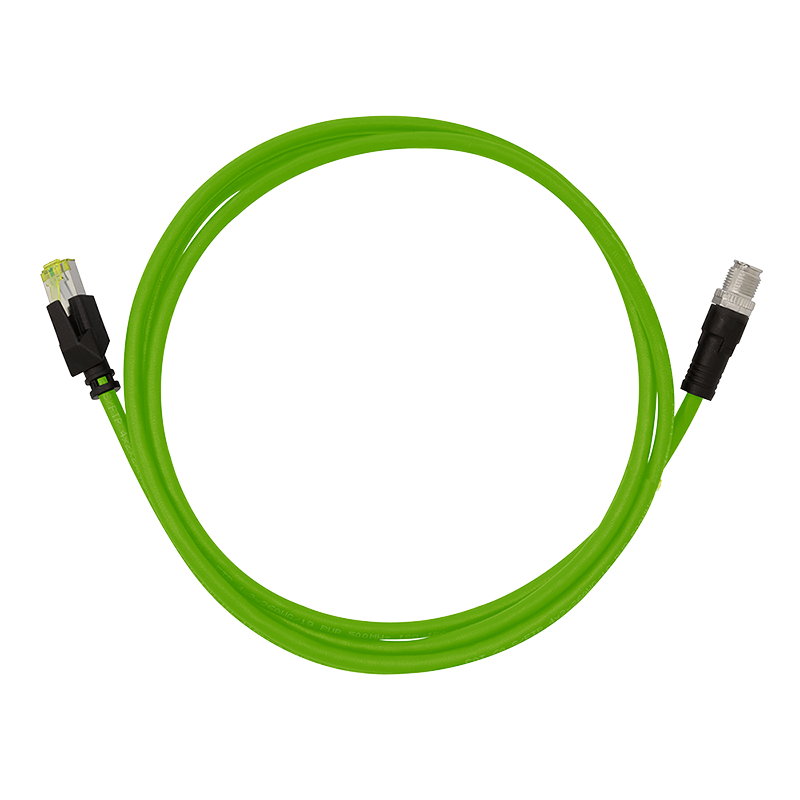

M12 CAT6A industrial PUR patch cable to RJ45, 0.50 m
- M12 industrial Ethernet cable, X-coded.

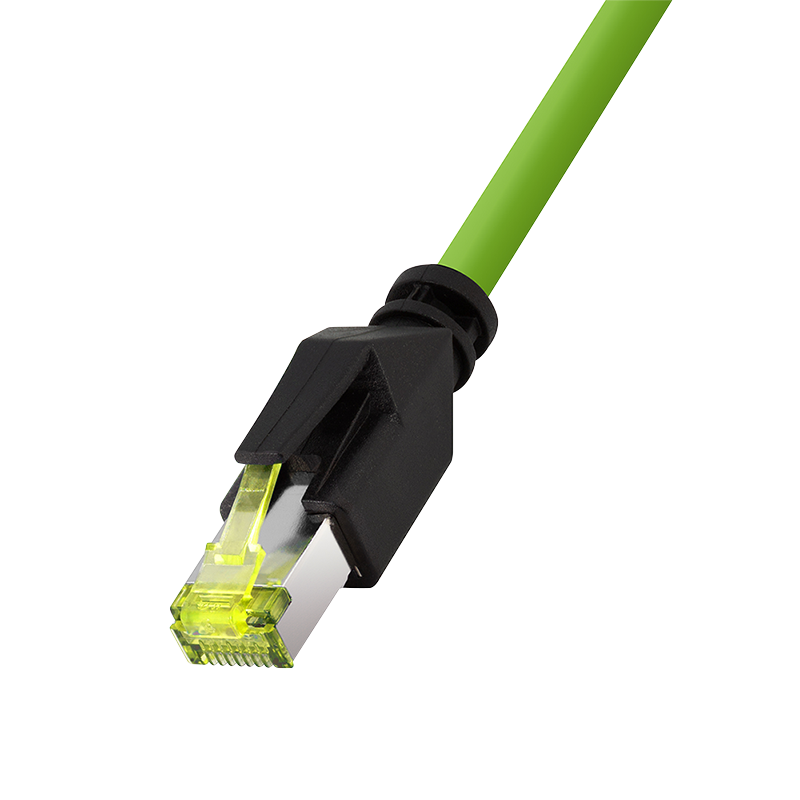

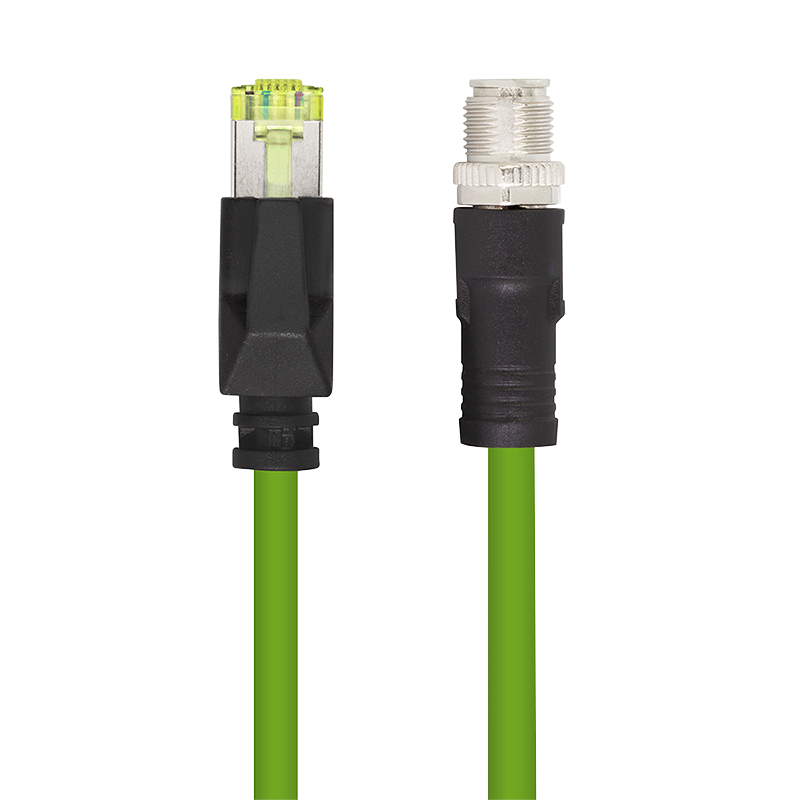

- Straight M12 connector to straight RJ45 connector.
- Shielded flexible PUR cable, S/FTP, 26/19AWG.
- Cat.6A Class EA channel in accordance with ISO/IEC 11801.
- M12 X-coding for 10 Gbit/s in accordance with IEC 61076-2-109.
- Suitable for drag chains in accordance with 2 PfG 2577/08.16.
- Oil and UV resistance in accordance with EN 60811-2-1 and IEC 60068-2-5.
- Acid resistance and hydrolysis resistance.
- Extended operating temperature: -40 to +90 °C.
- Supports PoE IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt.
- Halogen-free, low-smoke construction in accordance with IEC 60754-2 and IEC61034.
- Flame retardant in accordance with IEC60332-1.
CQM025S
CQM025S — High quality connection cable for secure, high performance data transmission in industrial production. This drag chain compatible patch cable provides network connectivity for components with M12 connectors.
It is ideal for increased mechanical stress in harsh environments and industrial applications. The weatherproof cable is oil, UV, acid, temperature and hydrolysis resistant, halogen free and flame retardant.
Applications
The cable provides network connectivity for components with M12 connectors in industrial production. It is suitable for drag chains, increased mechanical stress, harsh environments, and industrial applications.
