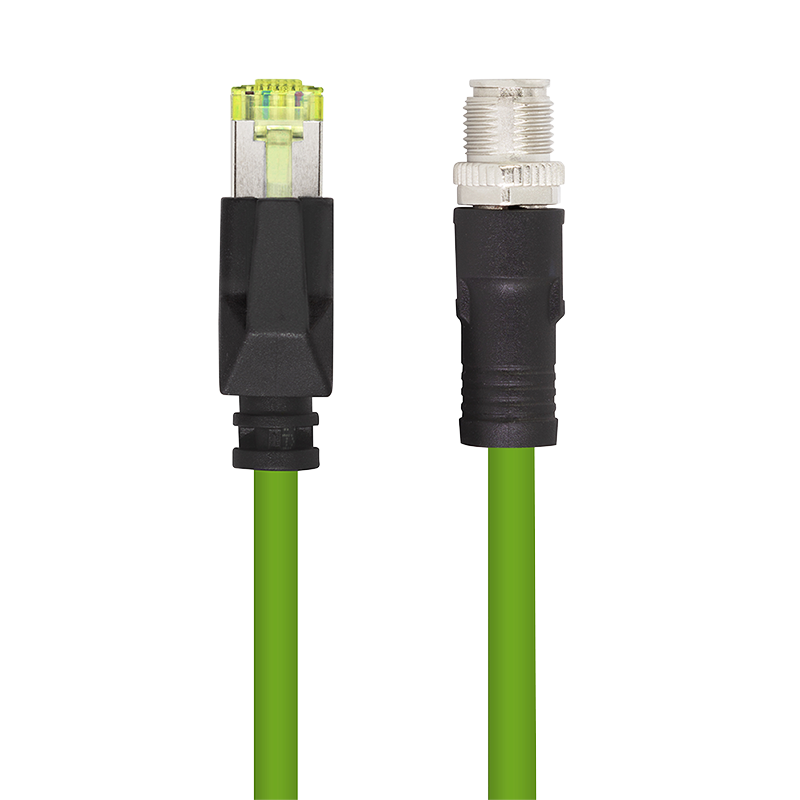

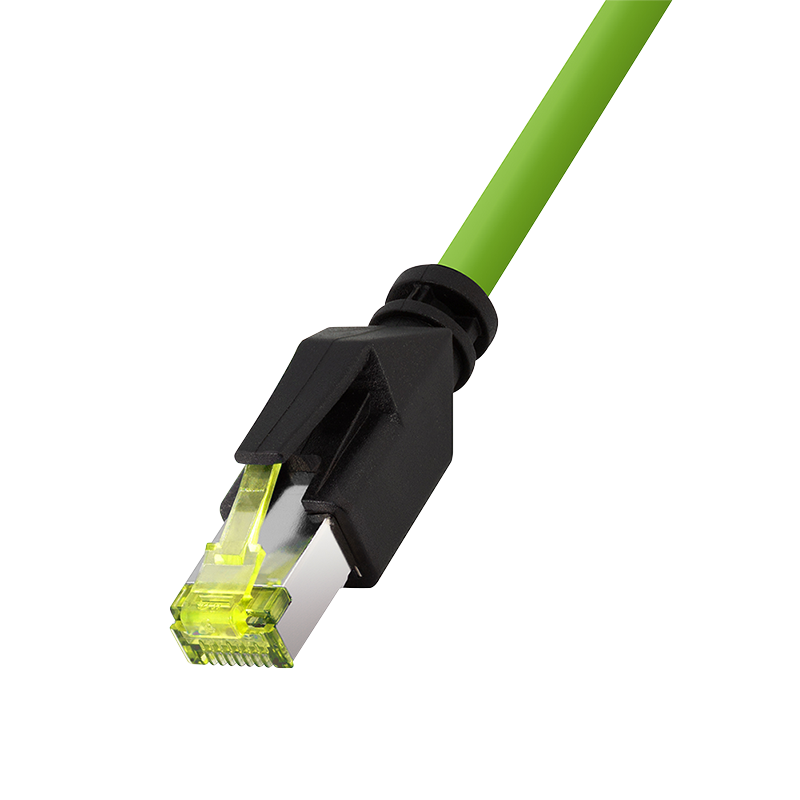

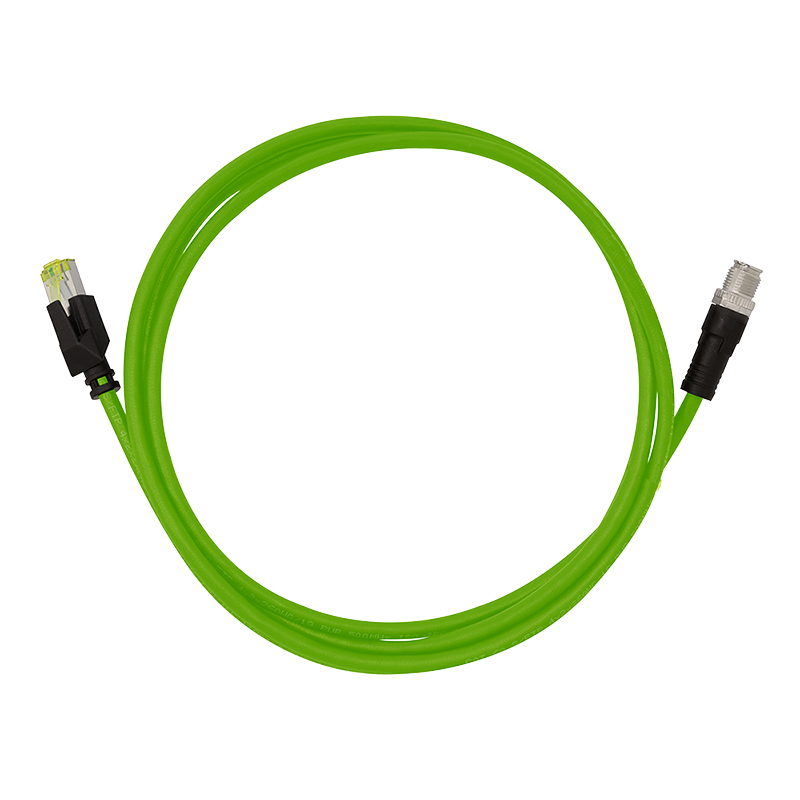

M12 CAT6A industrial PUR patch cable, M12 X-coded to RJ45, 1.50 m
- M12 Industrial Ethernet cable, X-coded.
- Straight M12 connector – straight RJ45 connector.
- Shielded flexible PUR cable, S/FTP, 26/19AWG.
- Cat.6A Class EA channel (ISO/IEC 11801).
- M12 X-coding for 10 Gbit/s (IEC 61076-2-109).
- Suitable for drag chain (2 PfG 2577/08.16).
- Oil and UV resistance (EN 60811-2-1, IEC 60068-2-5).
- Acid resistance and hydrolysis resistance.
- Extended operating temperature: -40 to +90 °C.
- Supports PoE IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt.
- Halogen-free, low smoke (IEC 60754-2, IEC61034).
- Flame-retardant (IEC60332-1).
CQM045S
CQM045S — High quality connection cable for secure, high performance data transmission in industrial production. This drag chain compatible patch cable provides network connectivity for components with M12 connectors.
It is ideal for increased mechanical stress in harsh environments and industrial applications. The weatherproof cable is oil, UV, acid, temperature and hydrolysis resistant, halogen free and flame retardant.
Applications
The cable provides network connectivity for components with M12 connectors. It is suitable for drag chains and for industrial applications and environments with increased mechanical stress.
