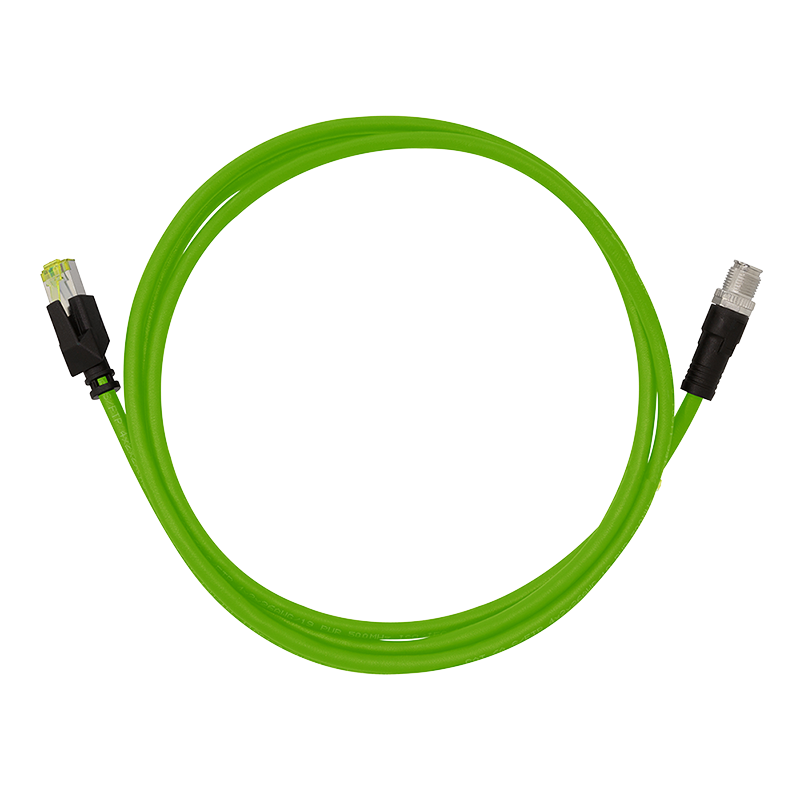

M12 Cat.6A industrial PUR patch cable, M12 X-coded to RJ45, 2 m
- M12 Industrial Ethernet cable, X-coded.

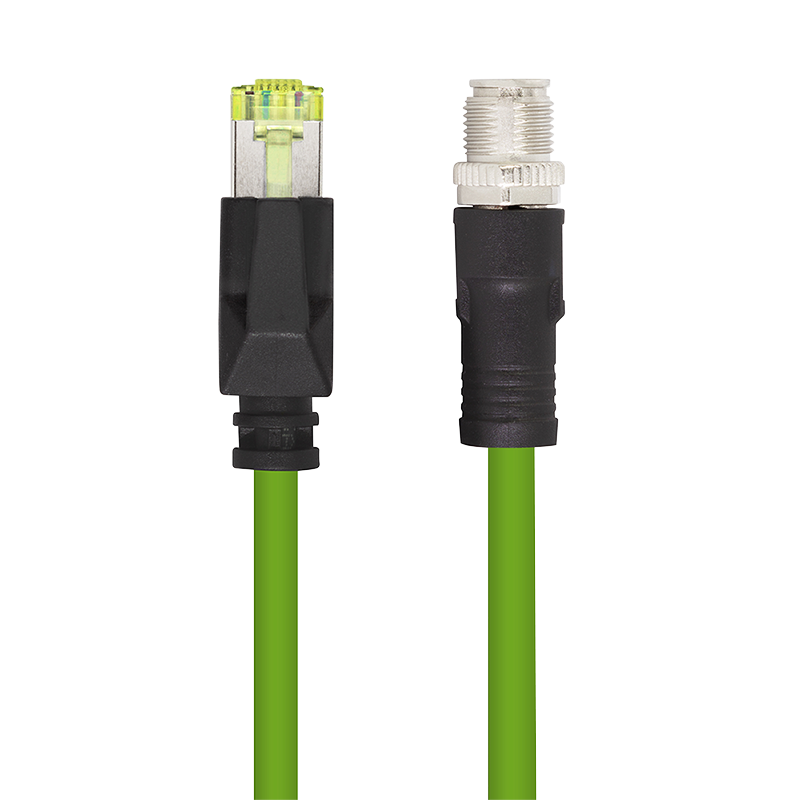

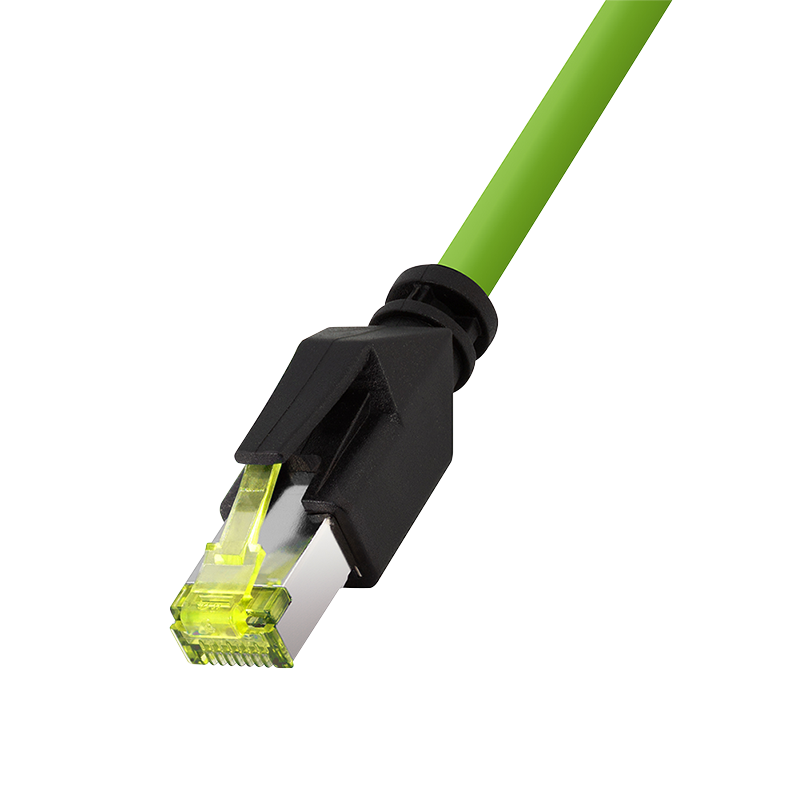

- Straight M12 connector and straight RJ45 connector.
- Shielded flexible PUR cable, S/FTP, 26/19 AWG.
- Cat.6A Class EA channel in accordance with ISO/IEC 11801.
- M12 X-coding for 10 Gbit/s in accordance with IEC 61076-2-109.
- Suitable for drag chain in accordance with 2 PfG 2577/08.16.
- Oil and UV resistance in accordance with EN 60811-2-1 and IEC 60068-2-5.
- Acid resistance and hydrolysis resistance.
- Extended operation temperature: -40 to +90 °C.
- Supports PoE IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt.
- Halogen-free, low smoke in accordance with IEC 60754-2 and IEC61034.
- Flame retardant in accordance with IEC60332-1.
CQM055S
CQM055S — High-quality connecting cable for secure and efficient data transmission in industrial production. This drag-chain compatible patch cable allows network connection of components with M12 connector.
It is perfect for increased mechanical stress in harsh environments and industrial applications. The weather-resistant cable is oil-, UV-, acid-resistant, temperature-resistant, hydrolysis-proof, halogen-free, and flame-retardant.
Applications
For network connection of components with an M12 connector in industrial production. The cable is suitable for industrial applications, environments with increased mechanical stress and drag chains.
