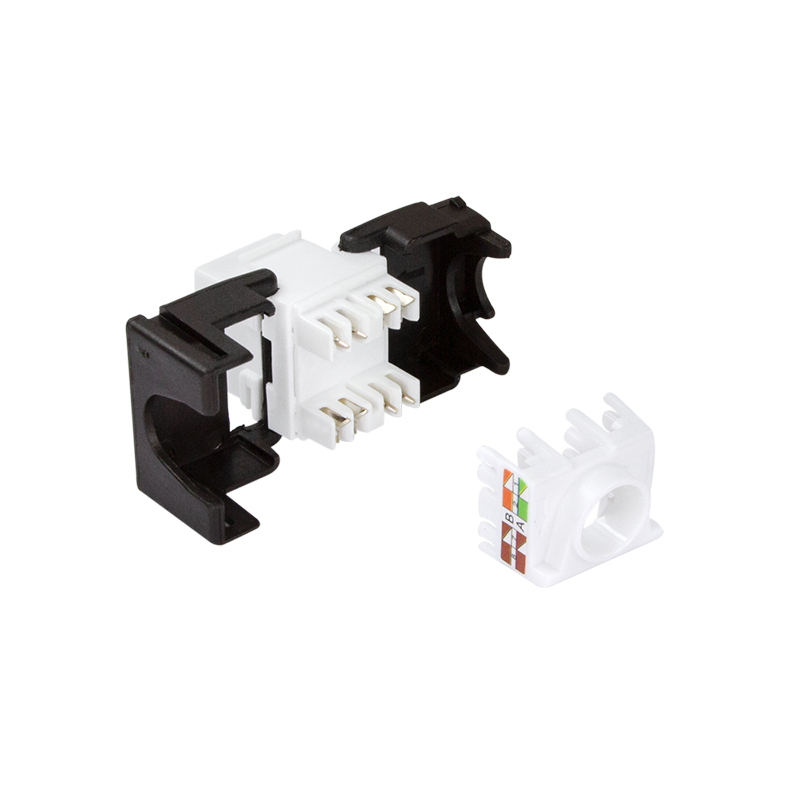

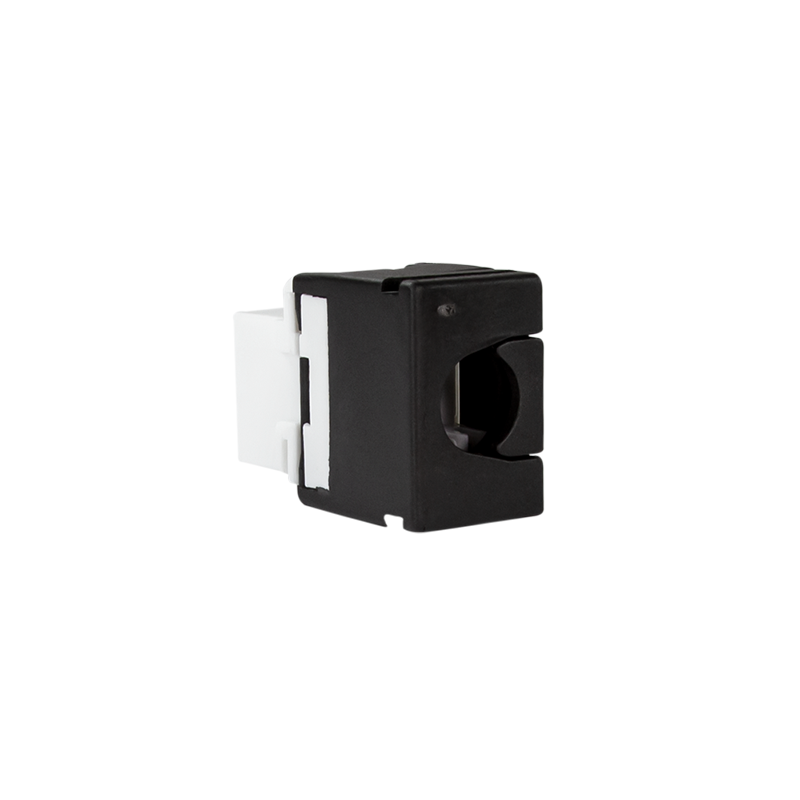

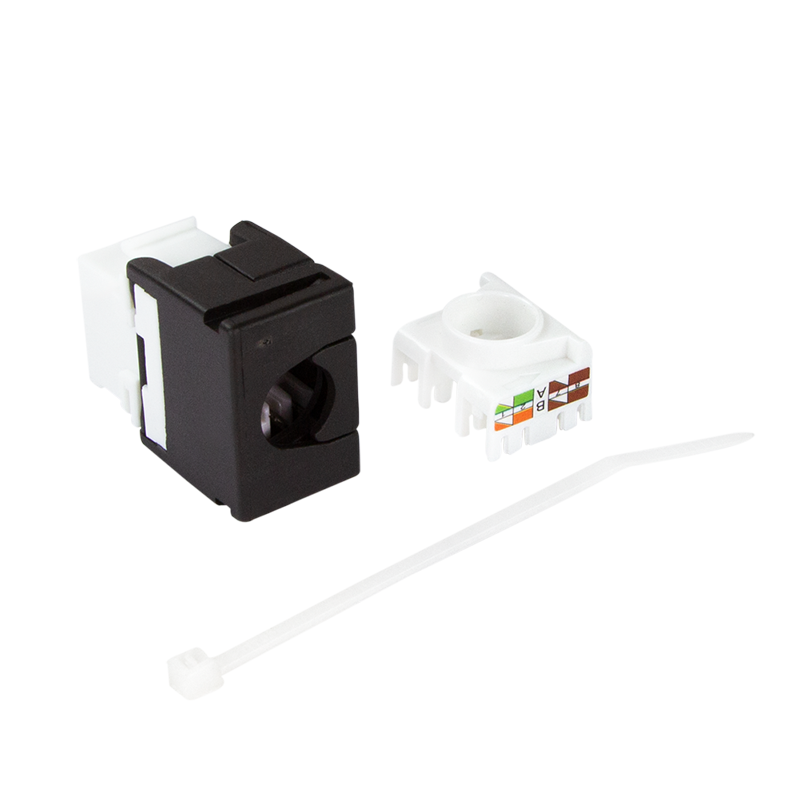

Cat.6A keystone jack UTP 22-26 AWG, toolless, 17.0 mm width
Brand:LogiLink
Part NoNK4028
EAN:4052792061796
PU:500
- Cat.6A Keystone jack (module), toolless
- Cat.6A Class EA, 500 MHz
- Complies with ISO/IEC 11801 and TIA/EIA 568
- Downward compatible with Cat.6 and Cat.5e
- For 22/1AWG to 26/1AWG solid cable
- For 24/7AWG to 26/7AWG patch cable
- Supports PoE, PoE+ and PoE++
- 180° cable termination, butterfly type
- Suitable for cable diameter 5–8 mm
NK4028
NK4028 — RJ45 keystone module for the transmission of digital and analog signals up to a frequency of 500 MHz. The LogiLink keystone module enables, in connection with components of the same or higher quality, cabling according to Cat.6 and Cat.6A with sufficient power reserves for a link of class E or EA.
This makes it suitable for the transmission of Gigabit Ethernet, 10Gigabit Ethernet and PoE applications. Assembly-friendly installation thanks to tool-free connection.
Applications
For 22/1AWG to 26/1AWG solid cable. For 24/7AWG to 26/7AWG patch cable.
