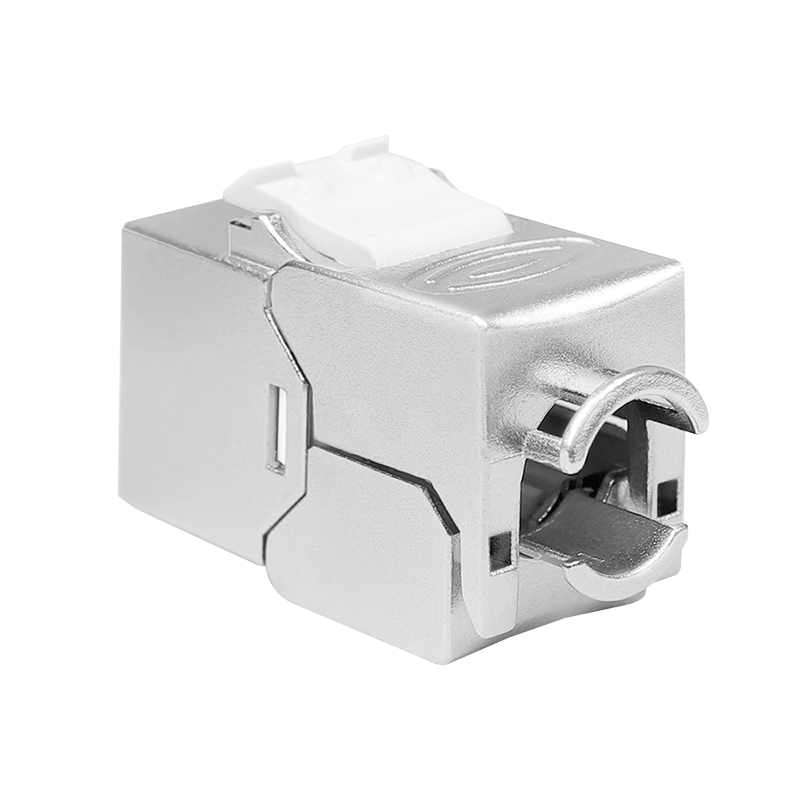

Keystone jack STP 22–26 AWG, Cat.6A ISO, component certified

Brand:LogiLink

Part NoNK4094

EAN:4052792081657

PU:250

Cat.6A Class EA, 500 MHz, 10 Gbit/s Ethernet
Permanent Link and Channel link Test ISO 11801
ISO/IEC 11801 & IEC 60603-7-51 component certified
Design compatible, suitable for data outlets and face plates
360° Shielded Zinc-alloy die-cast housing, crocodile type
Suitable for solid wire (22–26 AWG)
Suitable for cables from 5 to 8.5 mm OD
Supports PoE, PoE+ and PoE++
Suitable for keystone outlets, panels and rings

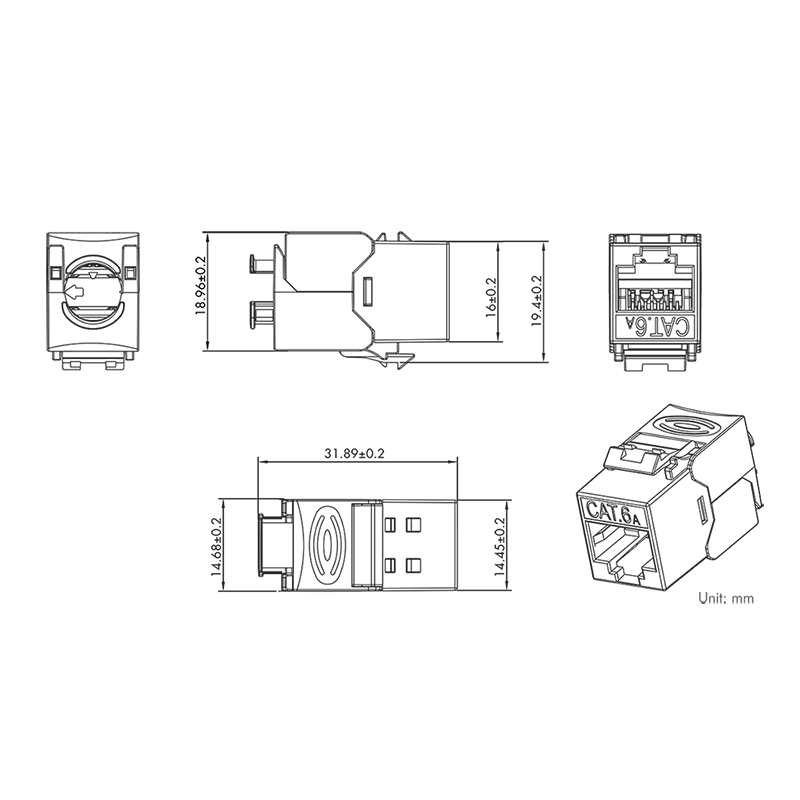

Very short and slim design: 32 x 14.7 mm

Description

NK4094

NK4094 — The shielded CAT-6A Keystone module from LogiLink offers high-quality, future-proof networking solutions. Thanks to its compact design, it can be installed in series in 19" 1U panels and fits into design-compatible modular faceplates.

It guarantees excellent performance for 10 Gigabit Ethernet applications, ensuring a reliable, long-term network infrastructure. Quick and easy assembly is possible without the need for special tools.

Applications

Suitable for solid wire (22–26 AWG). Suitable for cables from 5 to 8.5 mm OD.
