Cat.6A keystone jack STP 22-26 AWG, pack of 24, extra short body
Brand:LogiLink
Part NoNK4075
EAN:4052792074260
PU:480

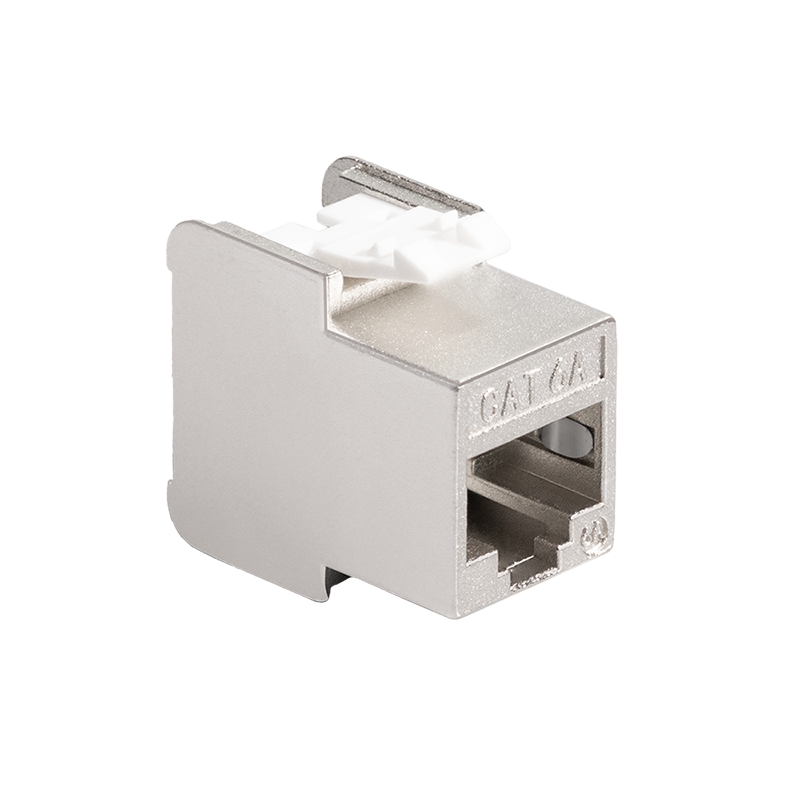

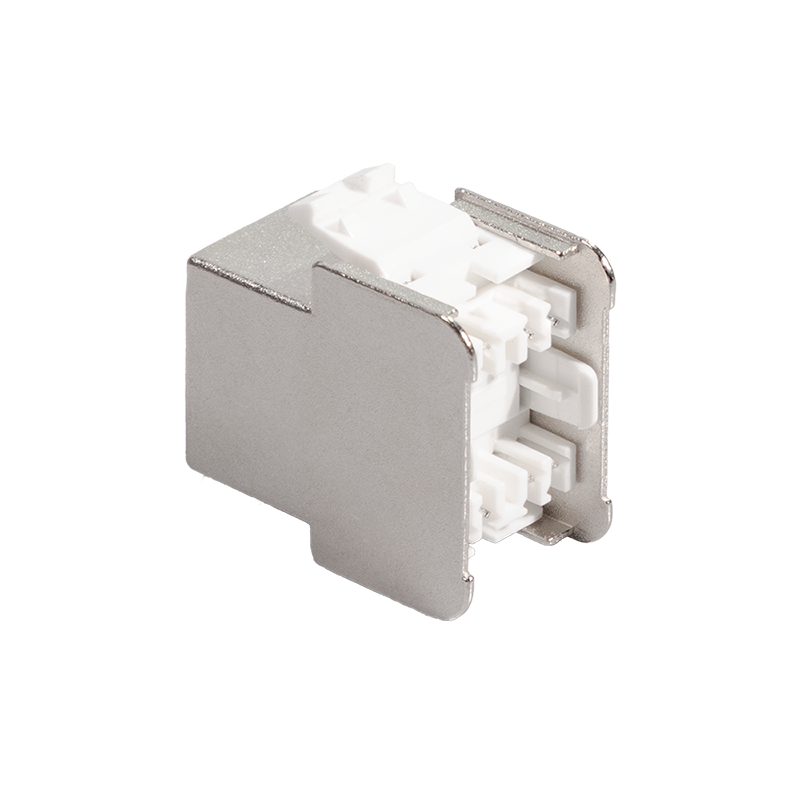

- Set of 24 keystone modules, super short and slim design
- Cat.6A permanent link test ISO11801 PL2, 10 Gbps
- Dimensions WxHxD: 14.5 x 23.5 x 25.56 mm
- With additional 360° metal braid shielding
- Fully shielded zinc die-cast housing with gold plated contacts
- Suitable for 22–26 AWG wires (1.05 – 1.5 mm)
- Suitable for Cat.6, Cat.6A, Cat.7 and Cat.7A cables up to 8.5 mm Ø
- Design compatible, fits in all common outlets and panels
- Supports PoE, PoE+ and PoE++

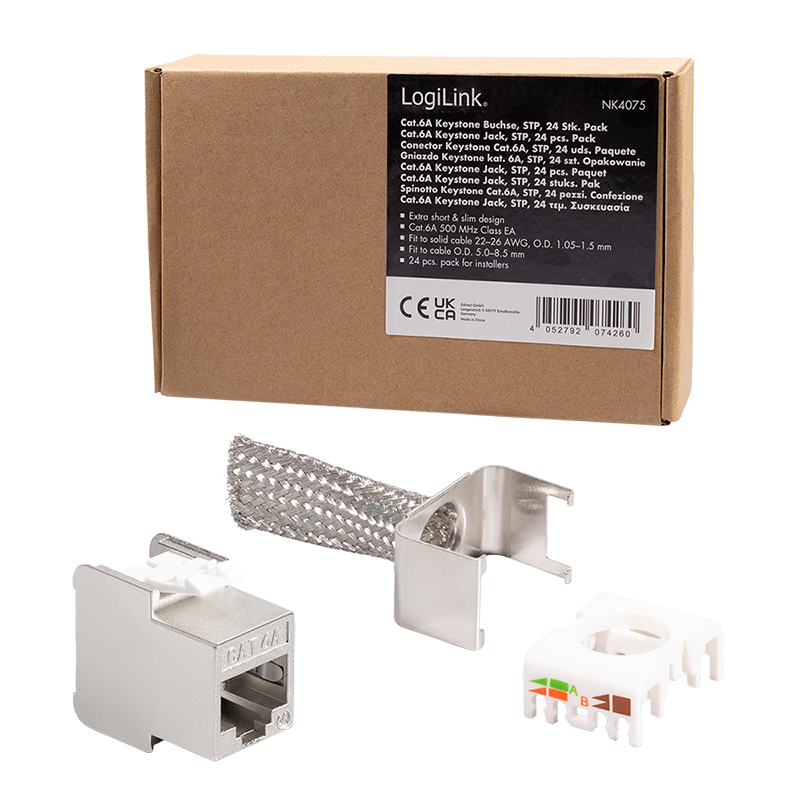

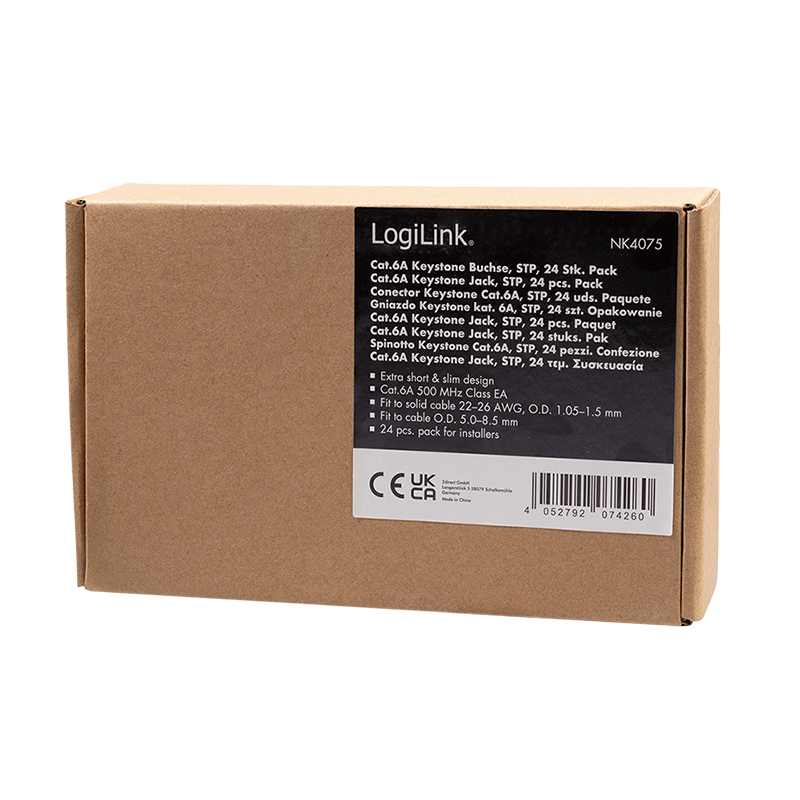

- Packaging: 24 modules in a box
- Recommended tool: WZ0077
NK4075

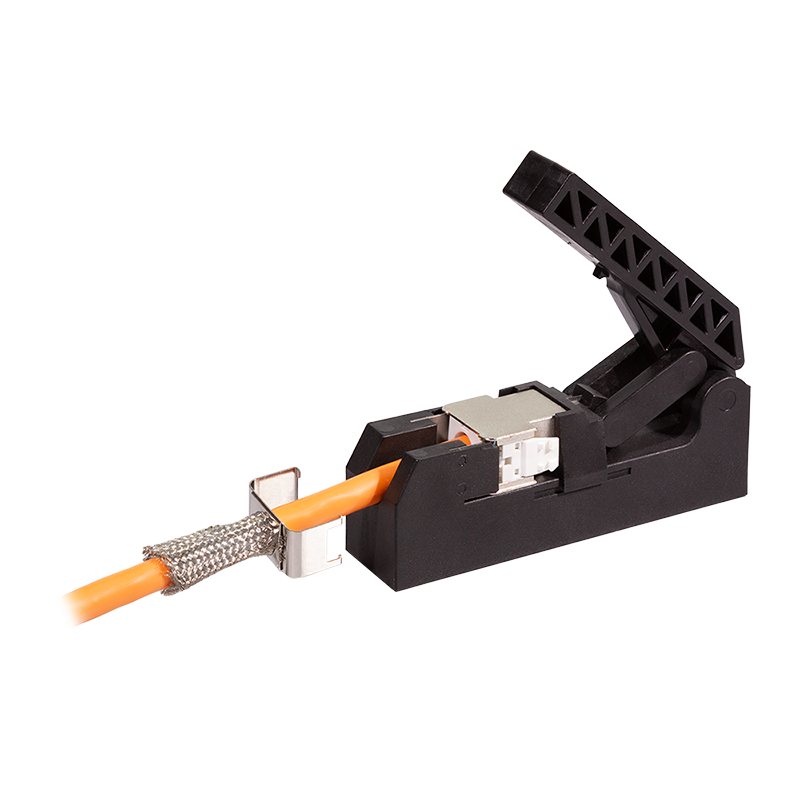

NK4075 — The extra short and slim RJ45 Keystone jack is a 360° fully shielded Cat.6A Keystone module with very small dimensions, ideal for mounting in face plates, floor boxes or 19" Keystone panels. The article consists of a box with 24 modules. A handy tool for easy and fast on-site installation can be ordered optionally.
Applications
Suitable for 22–26 AWG wires (1.05 – 1.5 mm). Suitable for Cat.6, Cat.6A, Cat.7 and Cat.7A cables up to 8.5 mm Ø.
