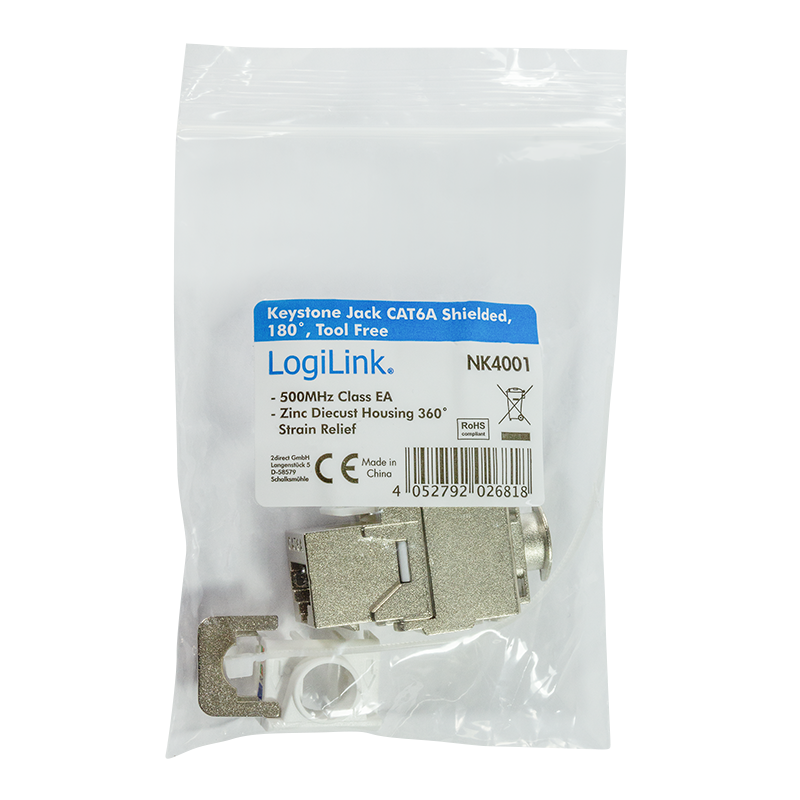

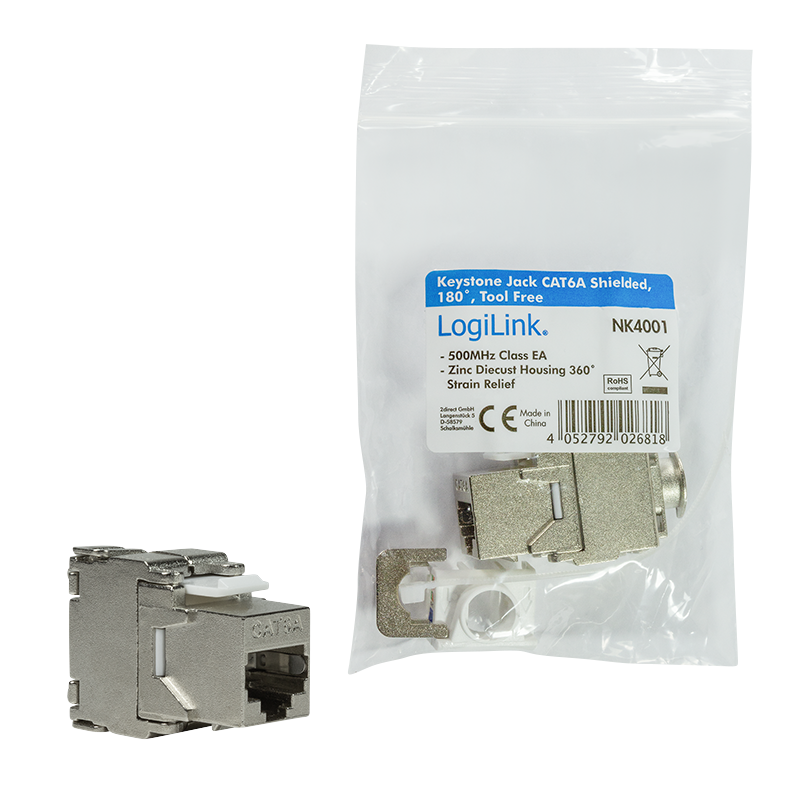

Cat.6A keystone jack STP 22-24 AWG, toolless, 17.2 mm width
- Cat.6A RJ45 Keystone Jack (Module)
- Cat.6A Class EA, 500 MHz, 10 Gbit/s Ethernet
- TIA/EIA 568 & SO/IEC 11801 permanent link

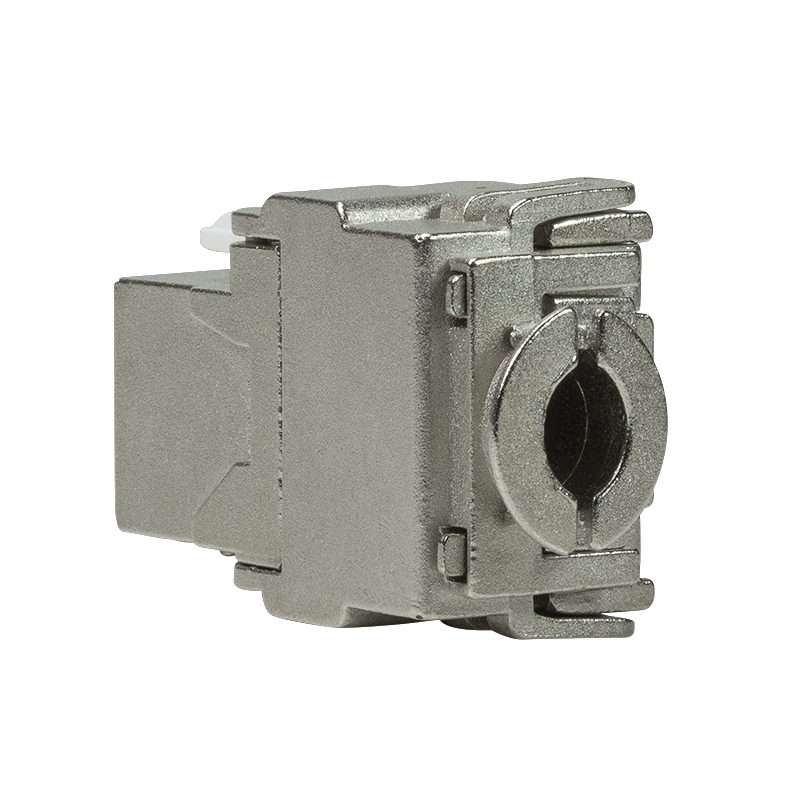

- Fully shielded diecust housing, 17.2 mm width

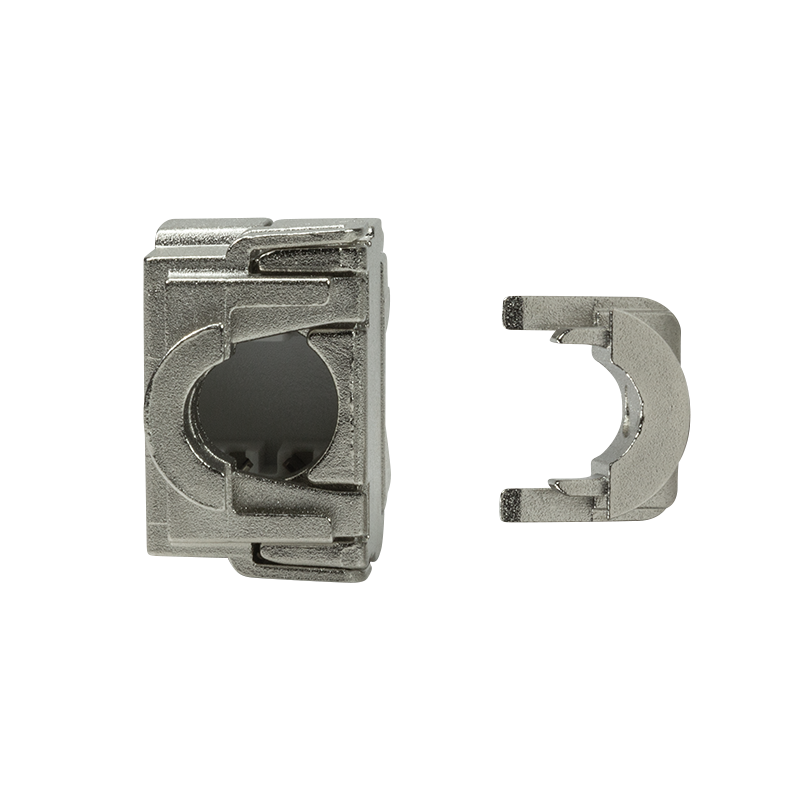

- Strain relief with 360° shielding support
- 180° cable connection, butterfly type
- For 22–24AWG solid wire
- Supports PoE, PoE+ and PoE++
- Suitable for cable diameter 5.5 – 9 mm
NK4001

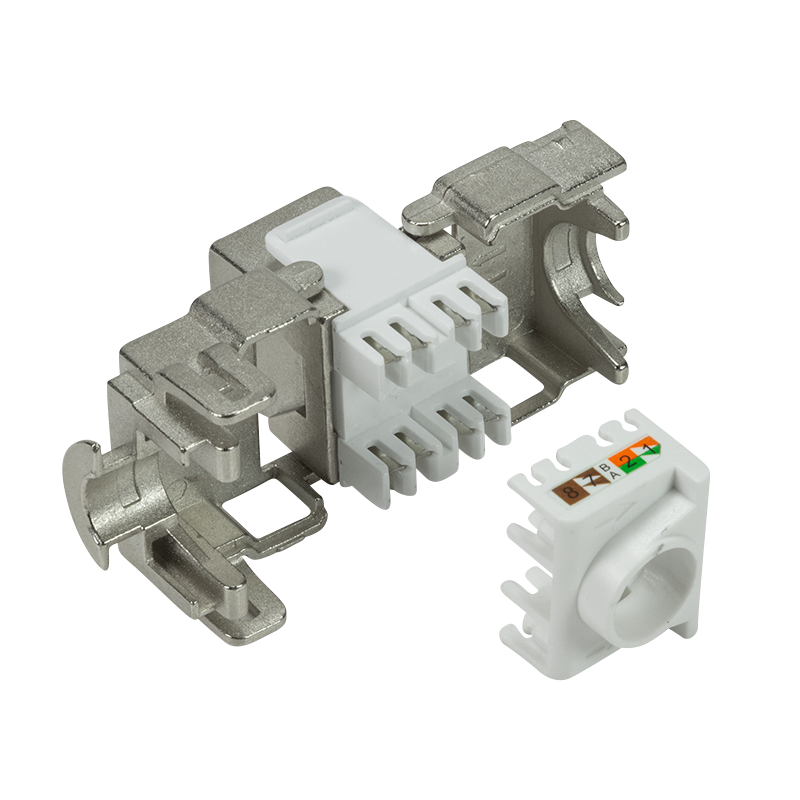

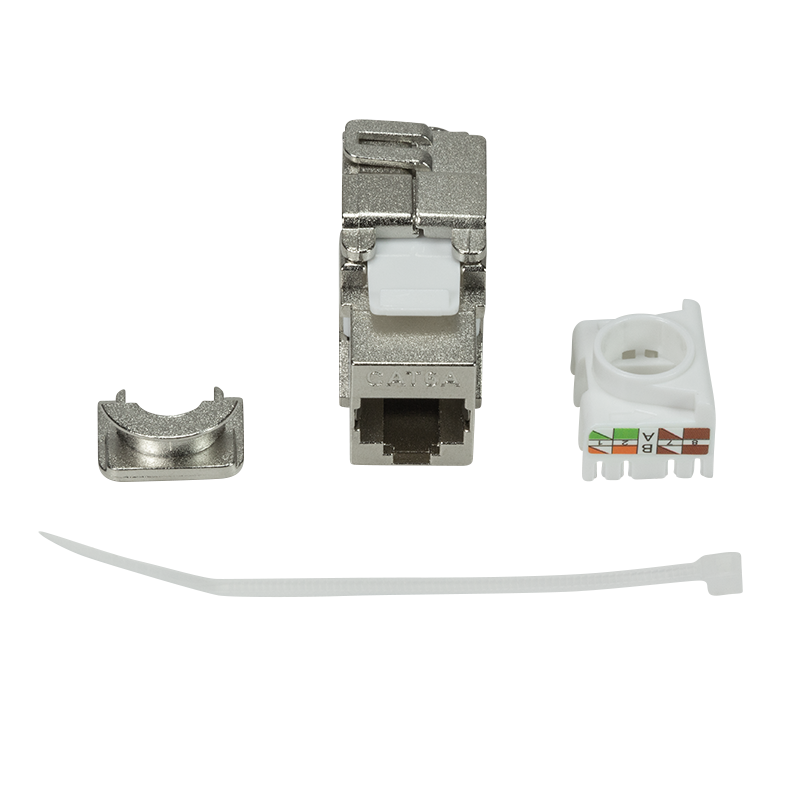

NK4001 — LogiLink’s Cat.5e, Cat.6 and Cat.6a shielded and unshielded keystone jacks are engineered with PCB technology, phosphor bronze IDC contacts, gold plated prongs, and a zinc die-cast with nickel plated housing (only shielded type). Our keystone jacks were engineered to simplify the termination helping you save time and money with features like easy to read wire labels, universal T568A & T568B wiring, 110 or Krone Punch down and tool-less termination when using the IDC cap. LogiLink’s Cat.5e, Cat.6 and Cat.6A keystone jacks comply with stringent industry transmissions and safety standards.
Applications
For 22–24AWG solid wire. Suitable for cable diameter 5.5 – 9 mm.
