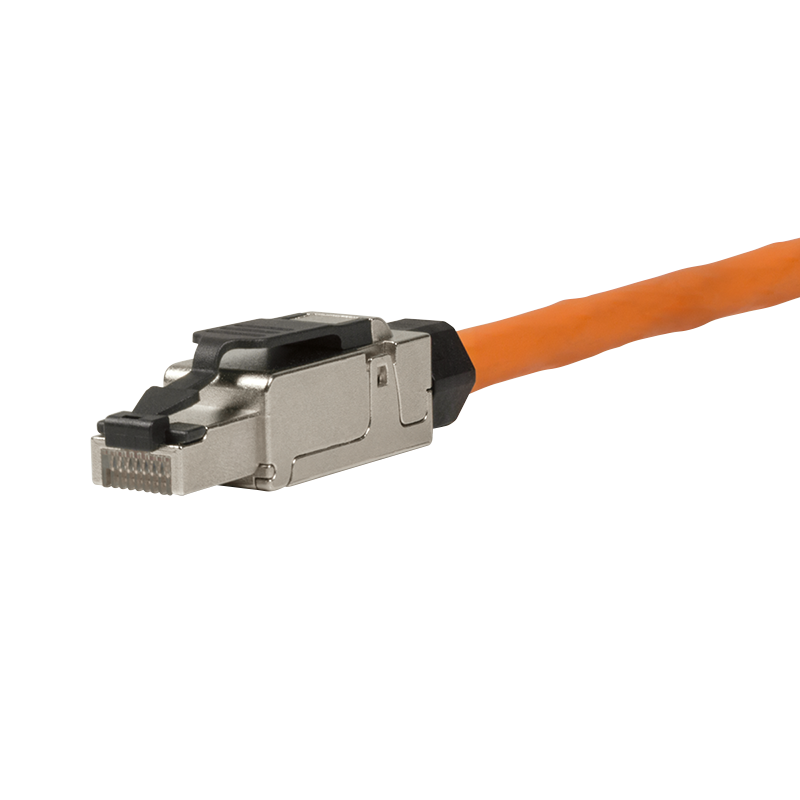

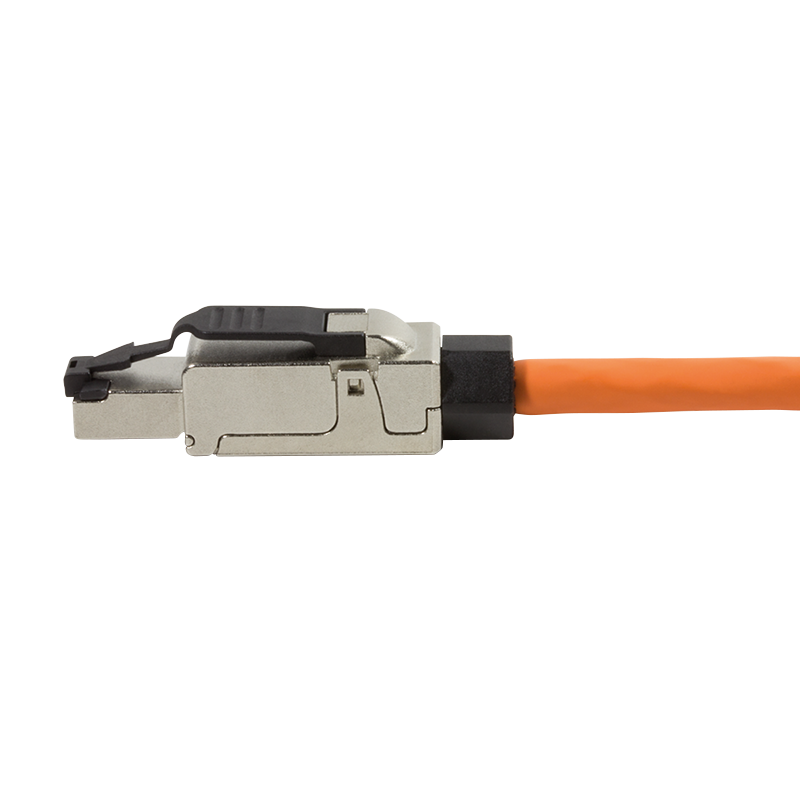

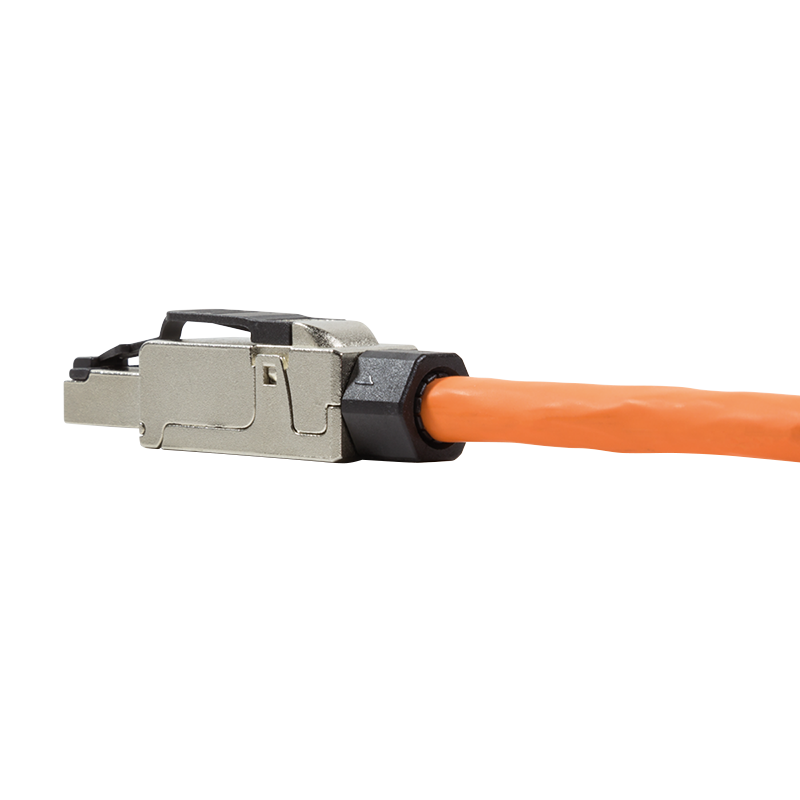

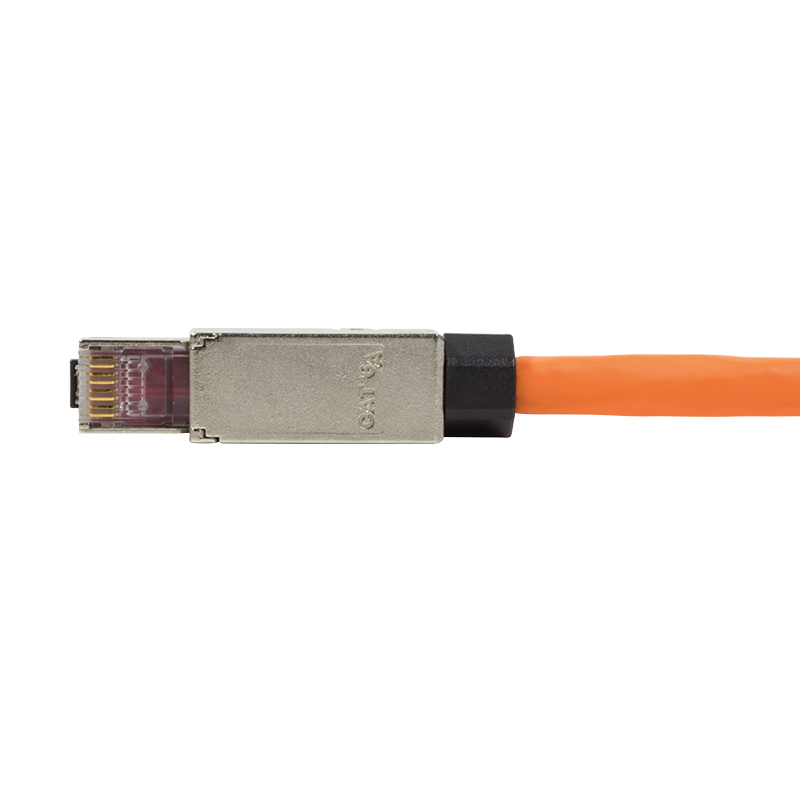

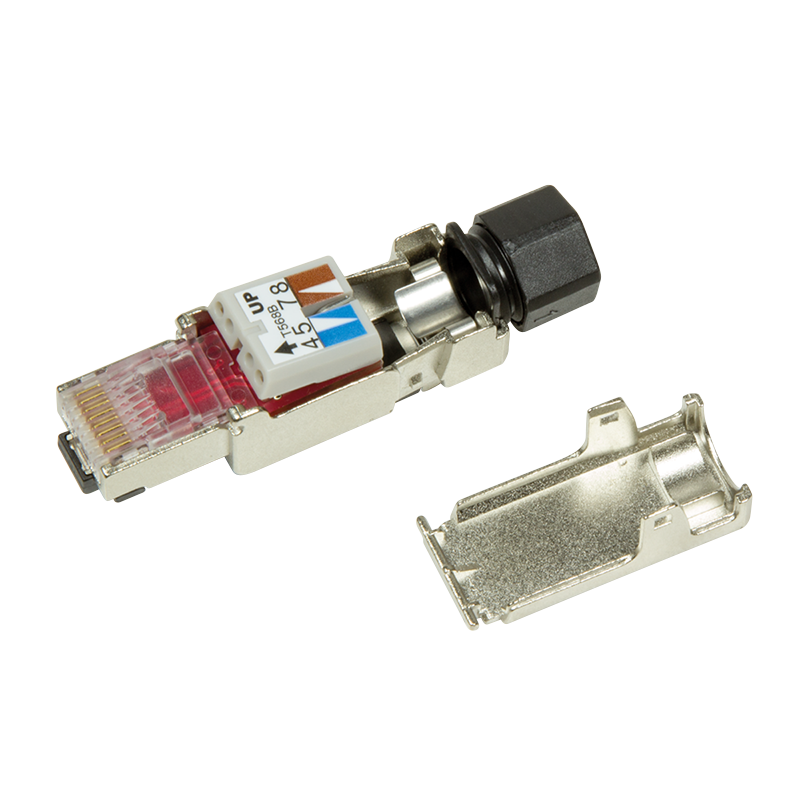

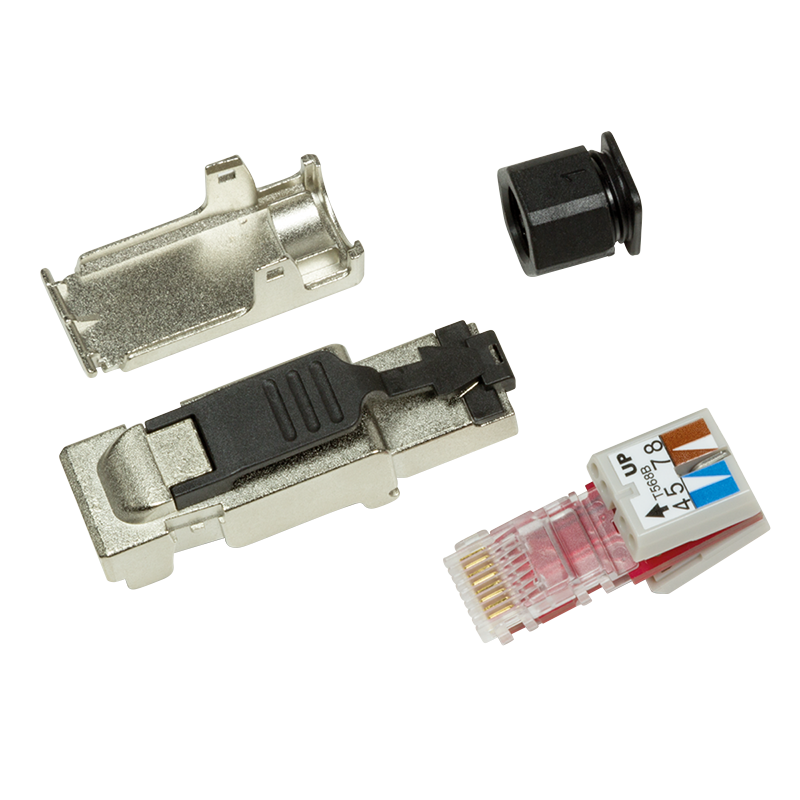

Field assembly plug, Cat.6A, shielded, PrimeLine
Brand:LogiLink
Part NoMP0040
EAN:4052792040999
PU:280
- Field-terminable reusable Cat.6A connector
- ISO/IEC 11801 Cat.6A component performance
- Safety: UL 1863 listed
- Housing: Zinc-alloy fully shielded
- Contact pins: Phosphor bronze alloy, 50µin gold plated
- For solid and stranded wire: 23–26 AWG
- Supports PoE, PoE+ and PoE++
- Wiring code: T568A or T568B
- Outer cable dimension: 6–8 mm
- Suitable for insulated wire OD: 1–1.5 mm
- Instruction manual included
MP0040
MP0040 — The LogiLink field termination plug is perfectly suited for 10 Gigabit networks. Installation is done quick and easily without special tools.
This high-quality connector ensures high quality, consistent, reliable terminations and meets the current standards. It is the perfect solution for a high-performance link.
Applications
For solid and stranded wire: 23–26 AWG. Suitable for insulated wire OD: 1–1.5 mm.
