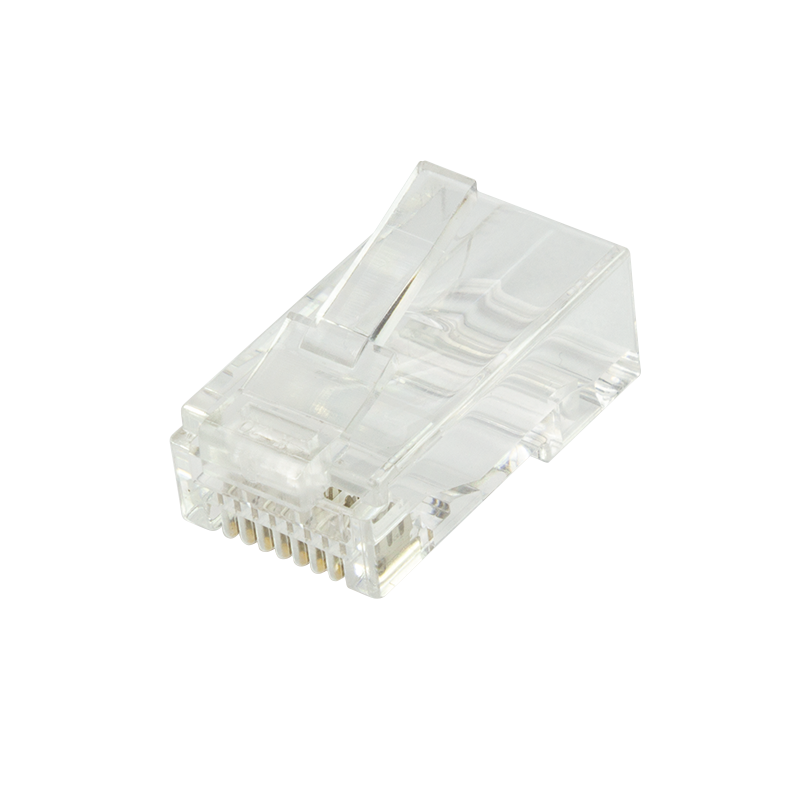

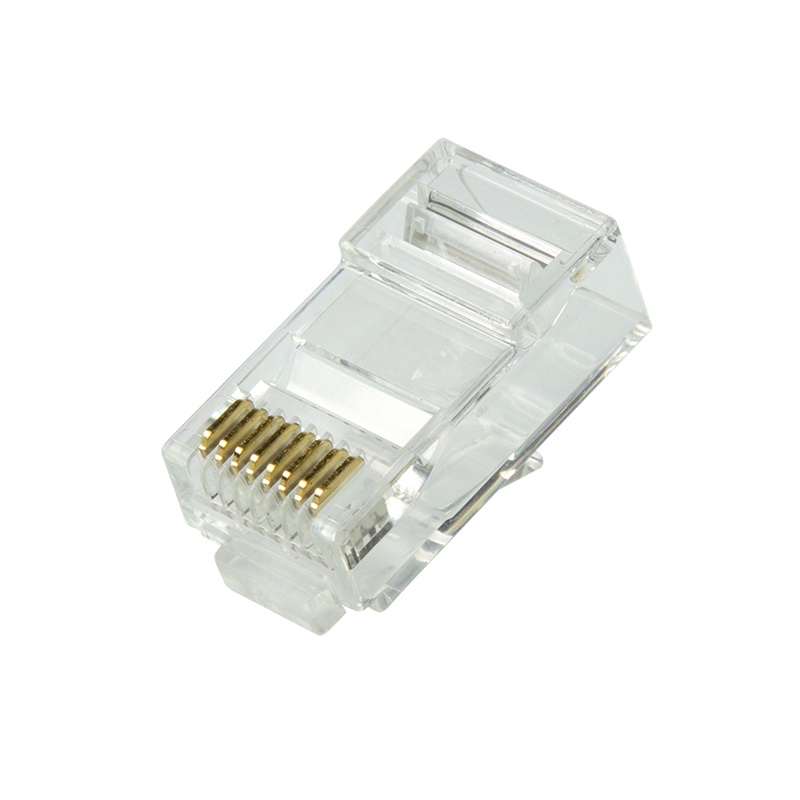

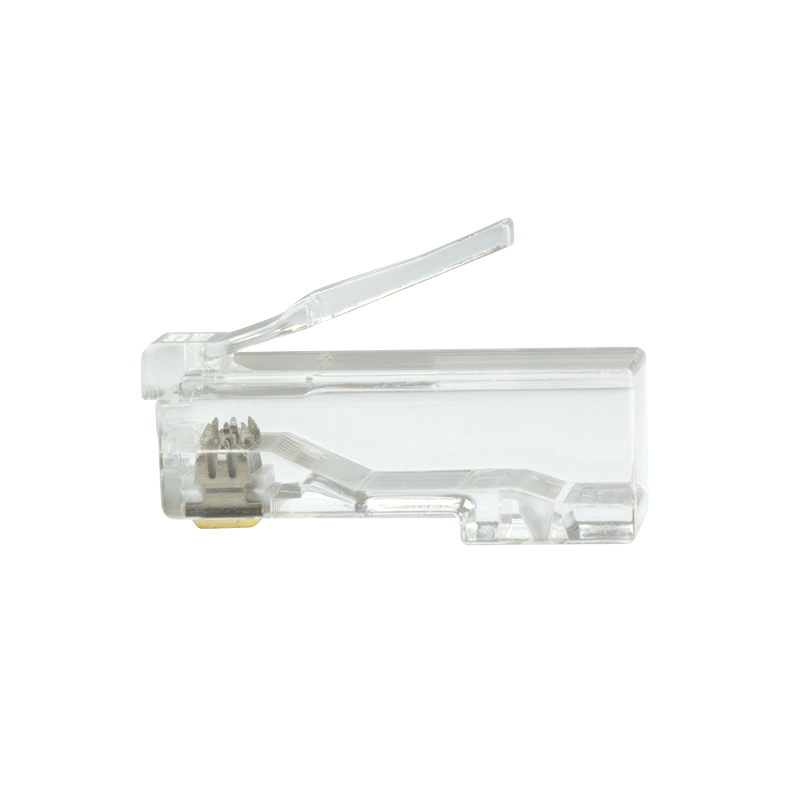

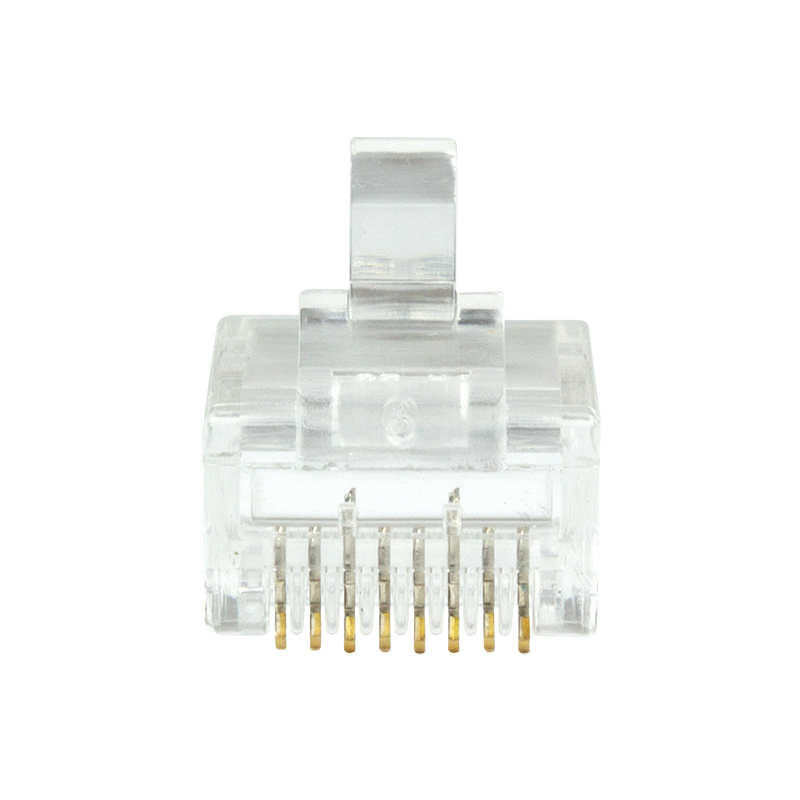

RJ45 modular plug Cat.6A UTP for solid and stranded wires, with guide plate, 50 pcs.
Brand:LogiLink
Part NoMP0071
EAN:4052792049367
PU:140
- RJ45 plug connector Cat.6A UTP
- Suitable for solid and stranded wires
- Gold plated pins, 3 prongs
- Suitable for 24AWG, 26AWG and 27AWG round cable
- Overall jacket OD: 5.5 to 6.5 mm

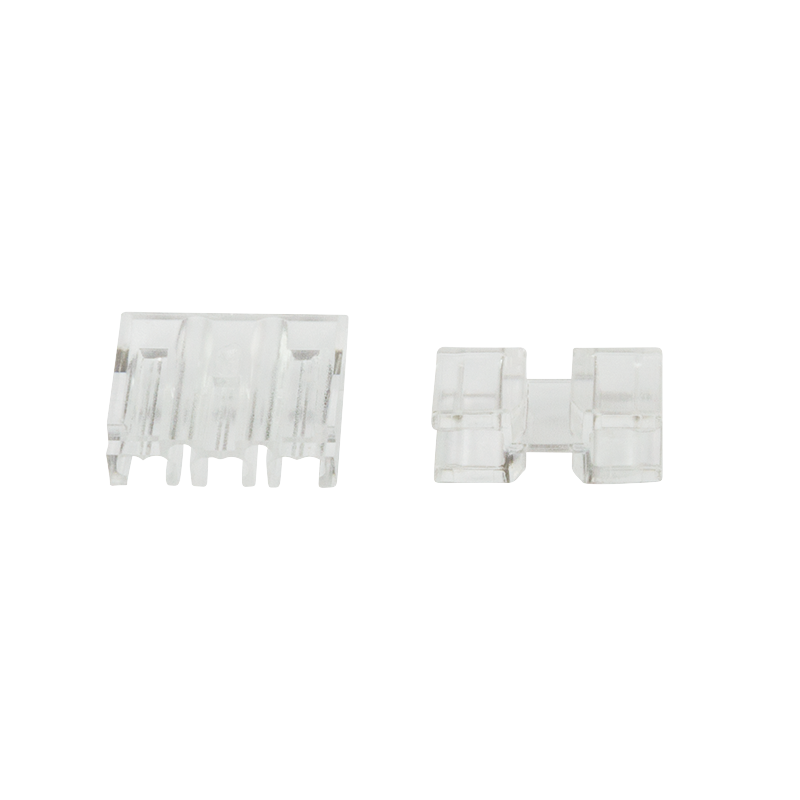

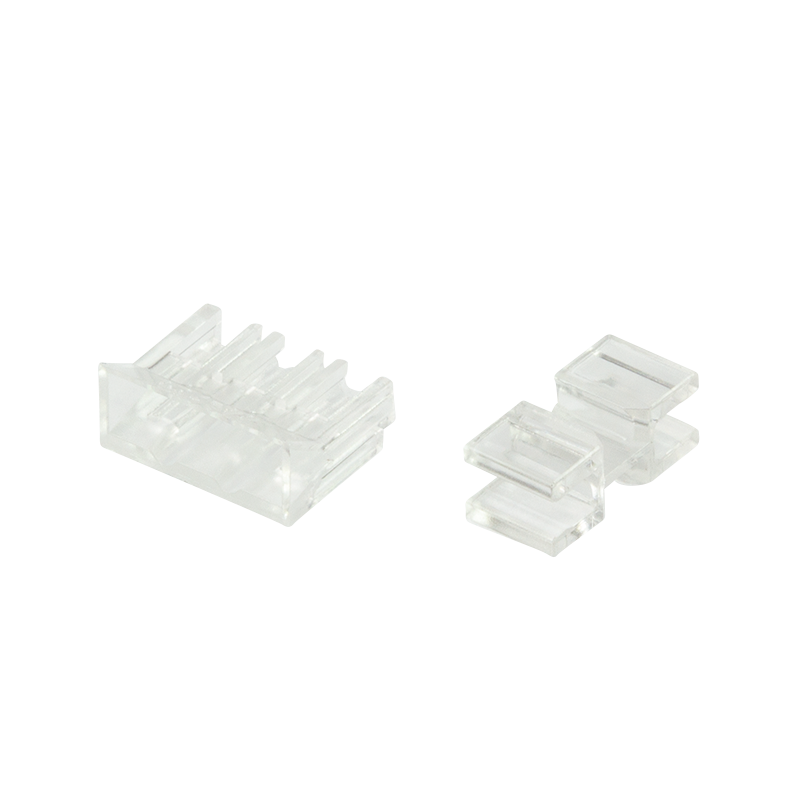

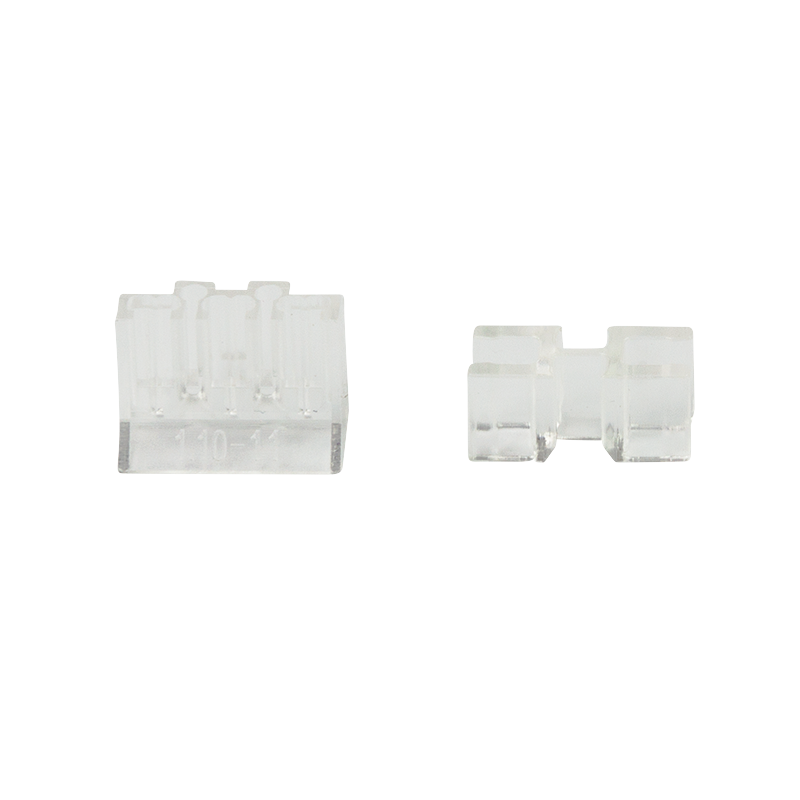

- Set with 50pcs. plugs, guide plates and load bars
- For wires up to 0.56 mm (1.1 mm with isolation)
- Suitable crimping tool: WZ0003, WZ0035
MP0071
MP0071 — This RJ45 modular plug from LogiLink is ideal for assembling Cat.6A patch cables in the desired length. It is suitable for use in high speed LAN transmission including 10G Ethernet. It comes with two guide plates for easy assembly of the 8 wires.
Applications
Suitable for solid and stranded wires. Suitable for 24AWG, 26AWG and 27AWG round cable.
