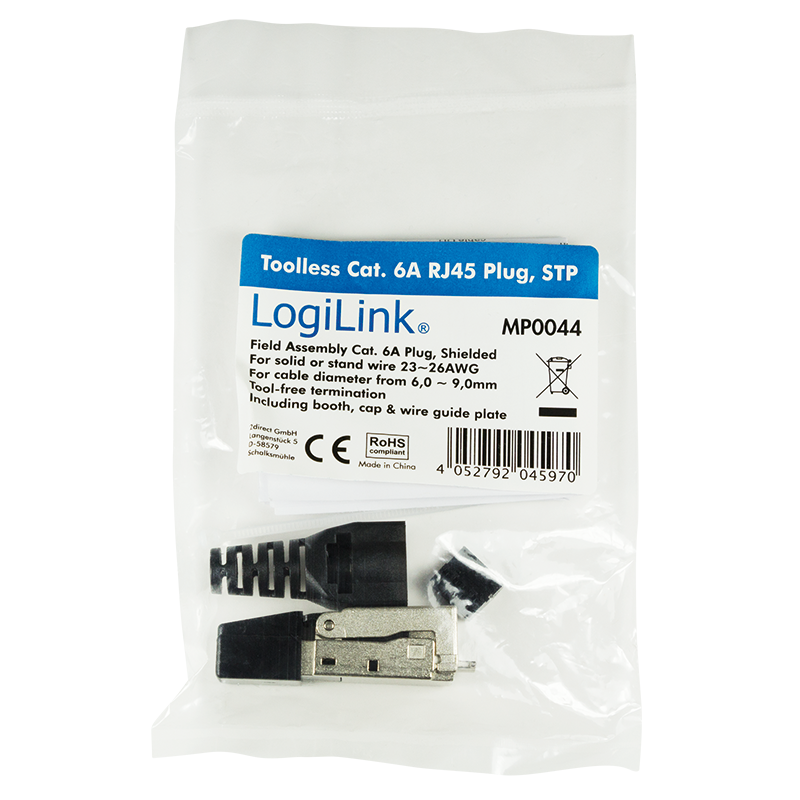

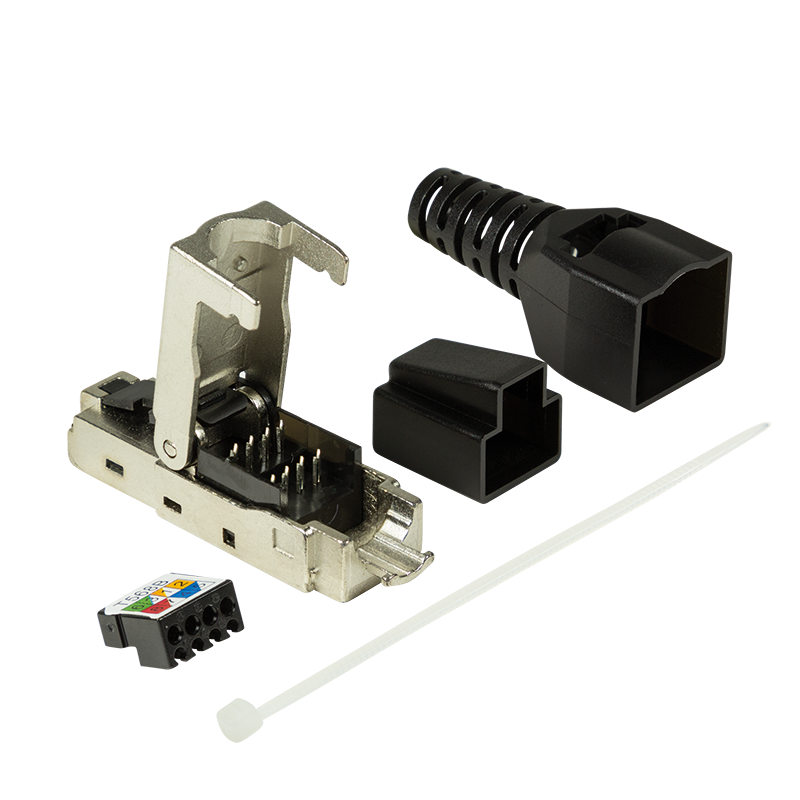

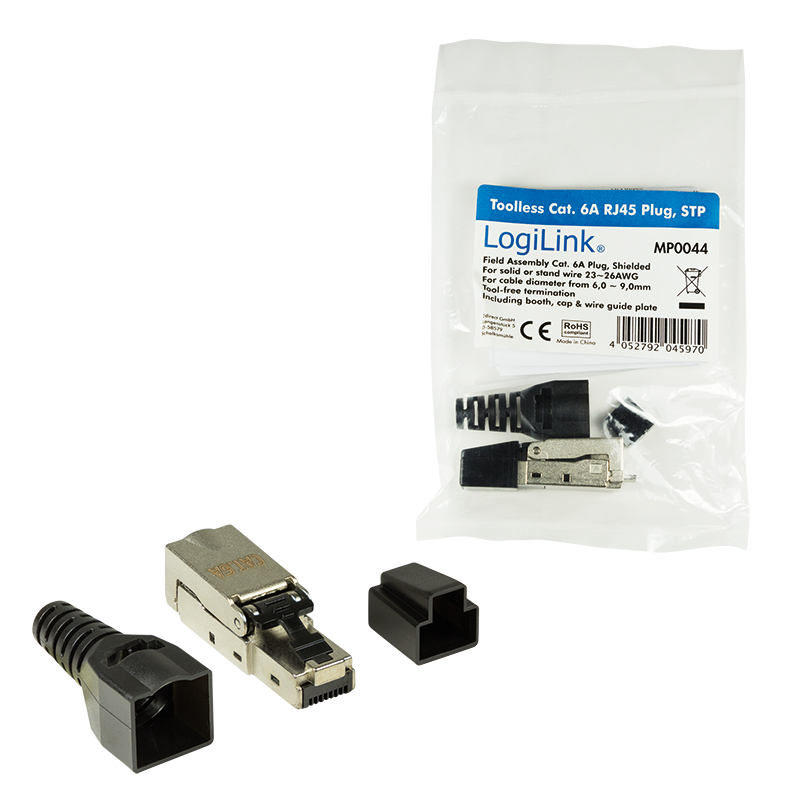

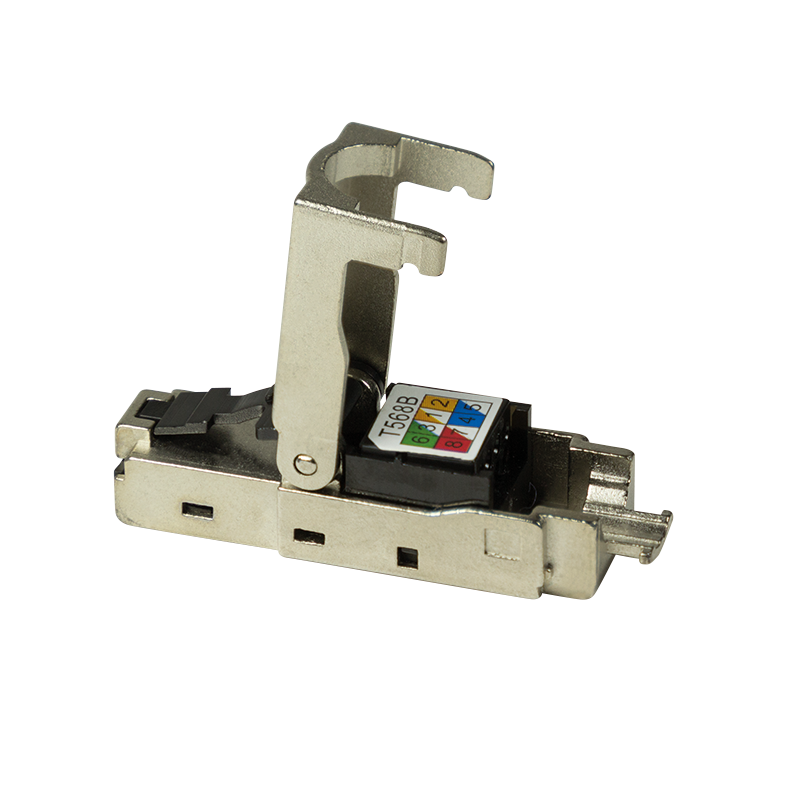

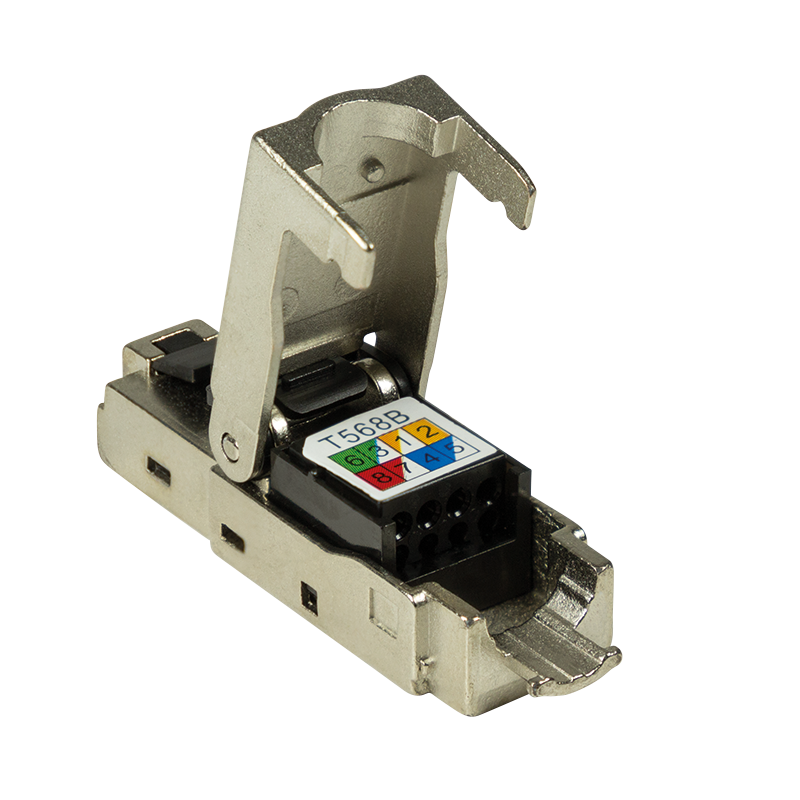

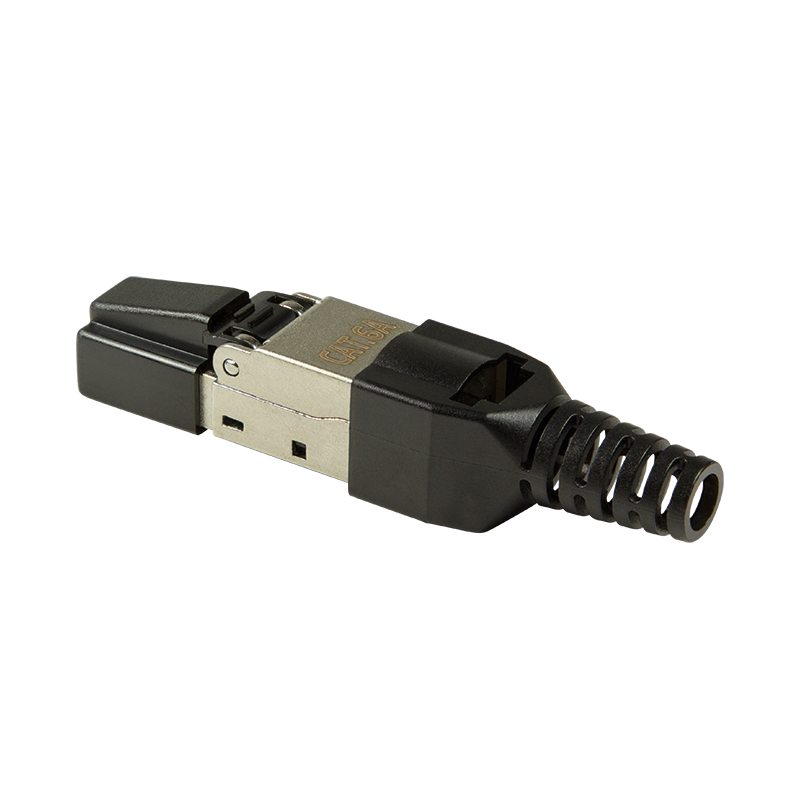

Field assembly plug, Cat.6A, shielded

Brand:LogiLink
Part NoMP0044
EAN:4052792045970
PU:500

Field assembly plug, Cat.6A, shielded

Field assembly plug, Cat.6A, shielded — 1

1 / 8

  • Standards: Cat.6A Class EA, ISO/IEC11801, TIA568-C.2
  • Housing: Zinc-alloy fully shielded
  • Contact pins: Phosphor bronze alloy, gold plated, 3 µin
  • For solid and stranded wire: 22 to 26 AWG
  • Wire diameter with insulation: 0.98 to 1.5 mm
  • Outer cable diameter: 6.0 to 9.0 mm
  • Suitable for PoE, PoE+ and PoE++
Description

MP0044

MP0044 — The LogiLink field termination plug is perfectly suited for 10 Gigabit networks. Installation is done quick and easily without special tools.

This cost-effective connector ensures high quality, consistent, reliable terminations and meets the current standards. It is the perfect solution for a high-performance link.

Applications

For solid and stranded wire: 22 to 26 AWG. Suitable for PoE, PoE+ and PoE++.
