Cat.6A RJ45 modular plug for Cat.6A & Cat.7 solid data cable, 10-pack
Brand:LogiLink
Part NoMP0078
EAN:4052792077117
PU:250

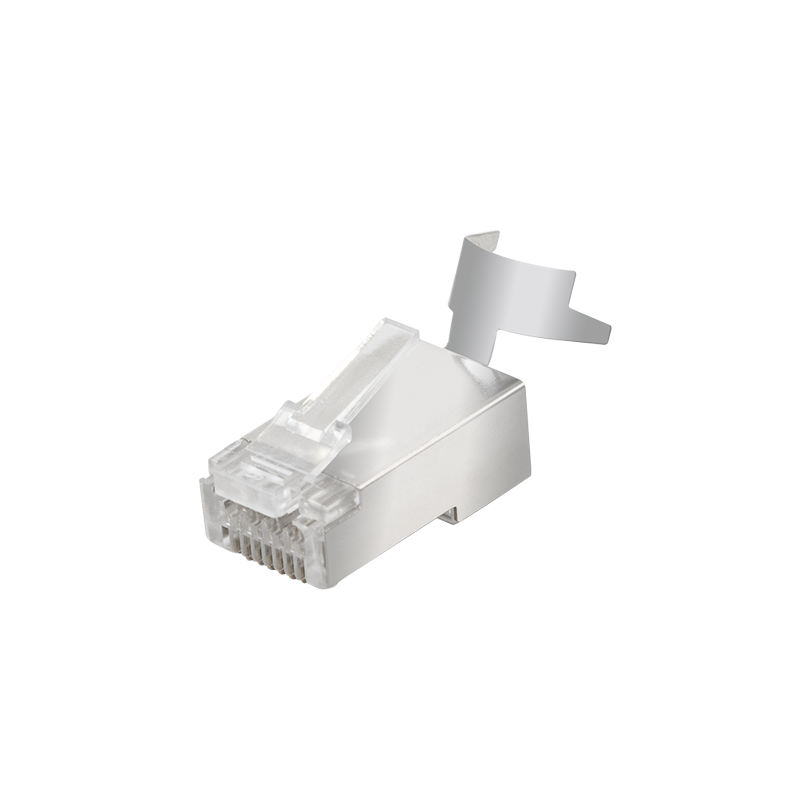

- RJ45 Cat.6A plug connector, shielded, pass-through (easy plug)

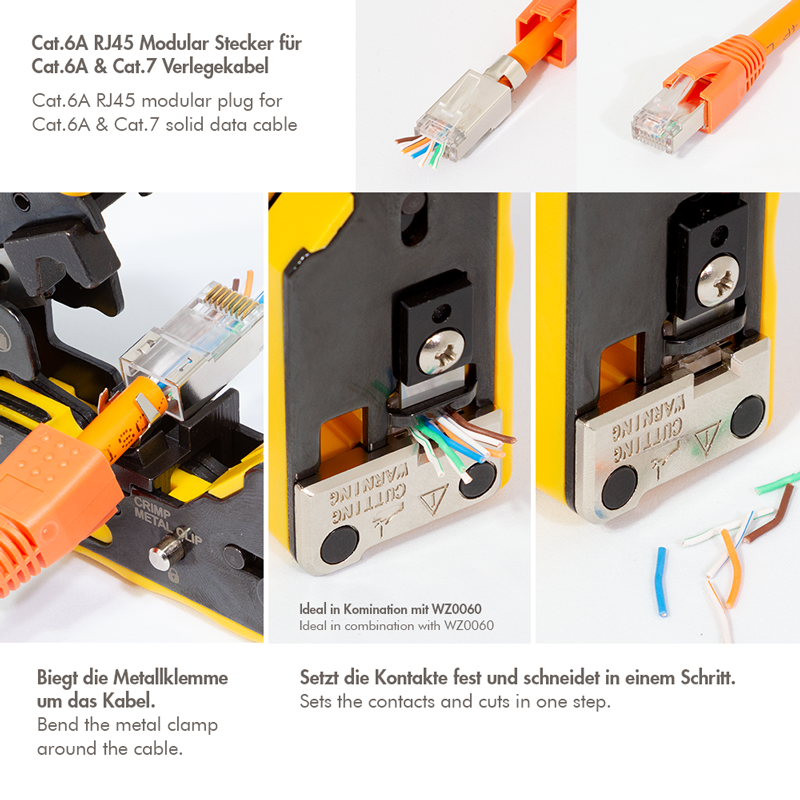

- Easy termination: wire pairs are easier to insert (pass-through)

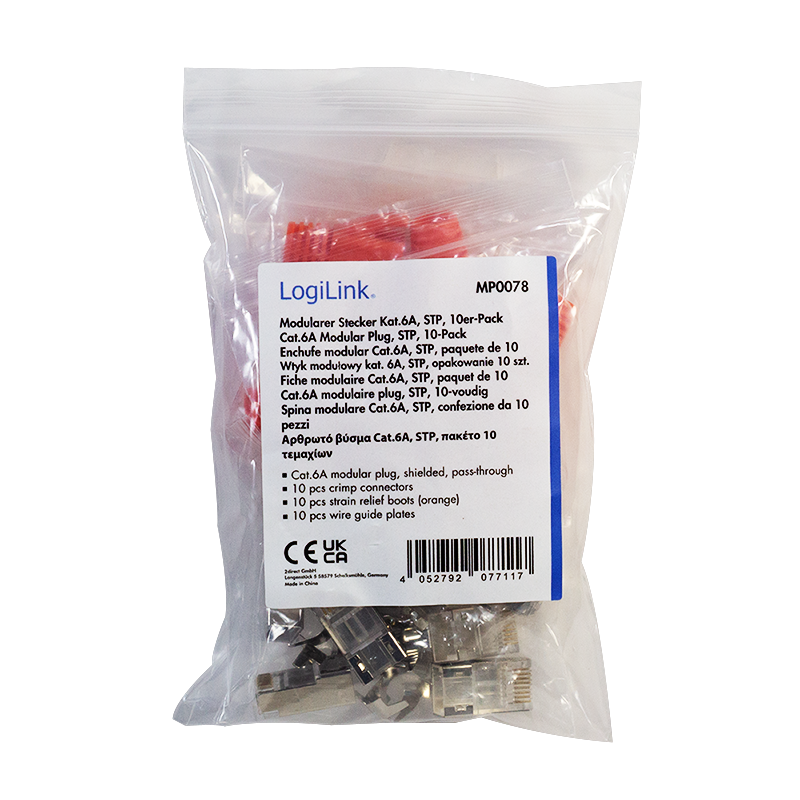

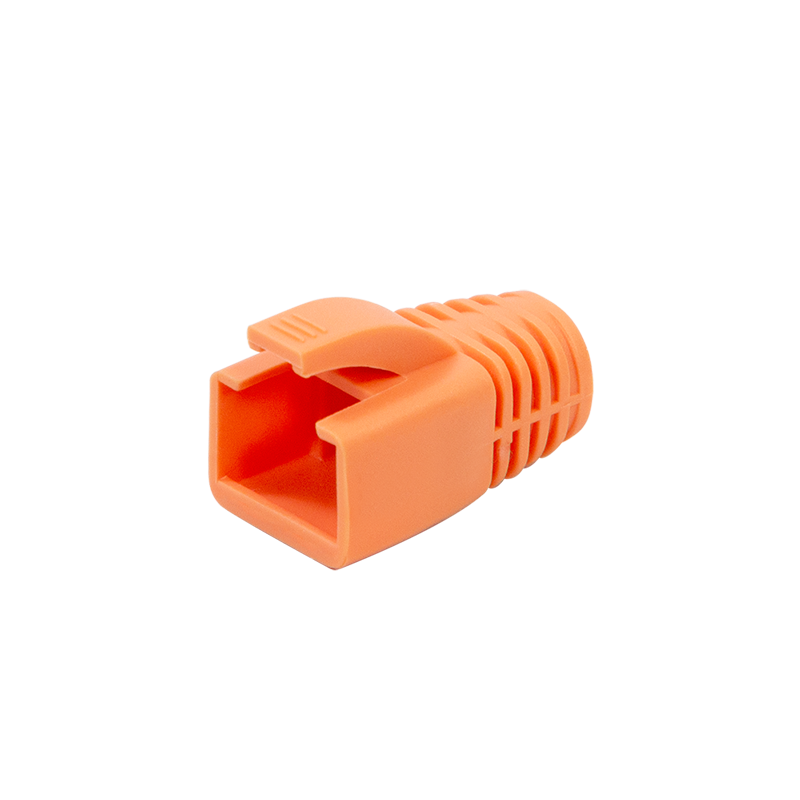

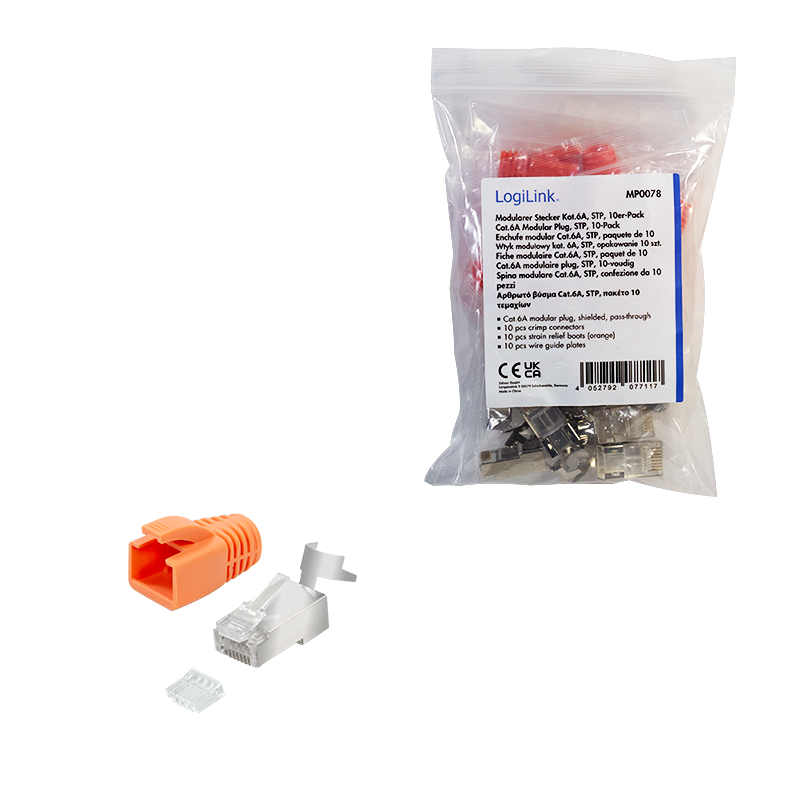

- Convenient set of 10 plugs each, boots and guide plates
- Compatible with AWG 23 Cat.6A and Cat.7 solid network cable
- Max. cable diameter: 8 mm
- Max. insulated wire diameter: 1.38 ~ 1.45 mm
- Not suitable for smaller diameter cables (CAT5, CAT6)

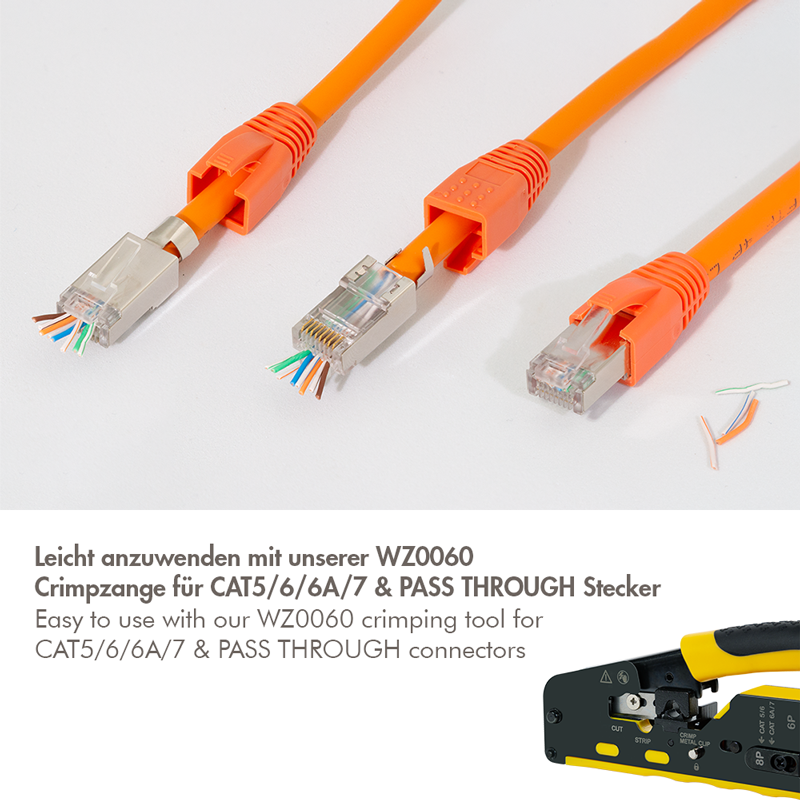

- Required tools: WZ0060 (WZ0037) and WZ0016
MP0078
MP0078 — The LogiLink Cat.6A plug is suitable for Cat.6A and Cat.7 cable with a wire diameter of 1.35 to 1.45 mm (AWG 23). These connectors are not compatible with Cat8, Cat6 and Cat5e cables! The Cat.6A plug enables data transfer rates of up to 10 Gigabit Ethernet, making it ideal for field assembly of high performance patch cords.
