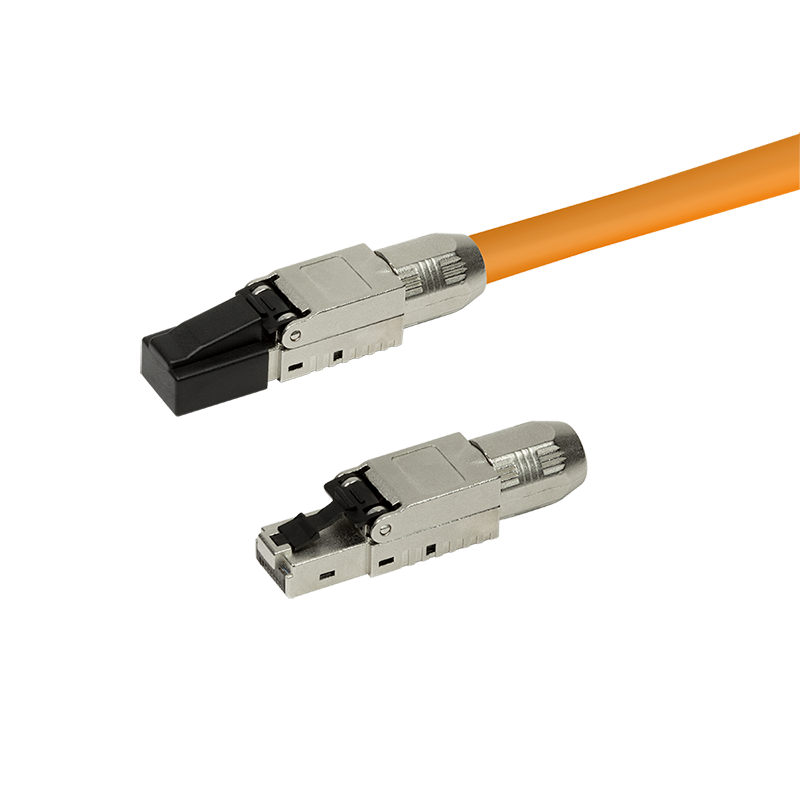

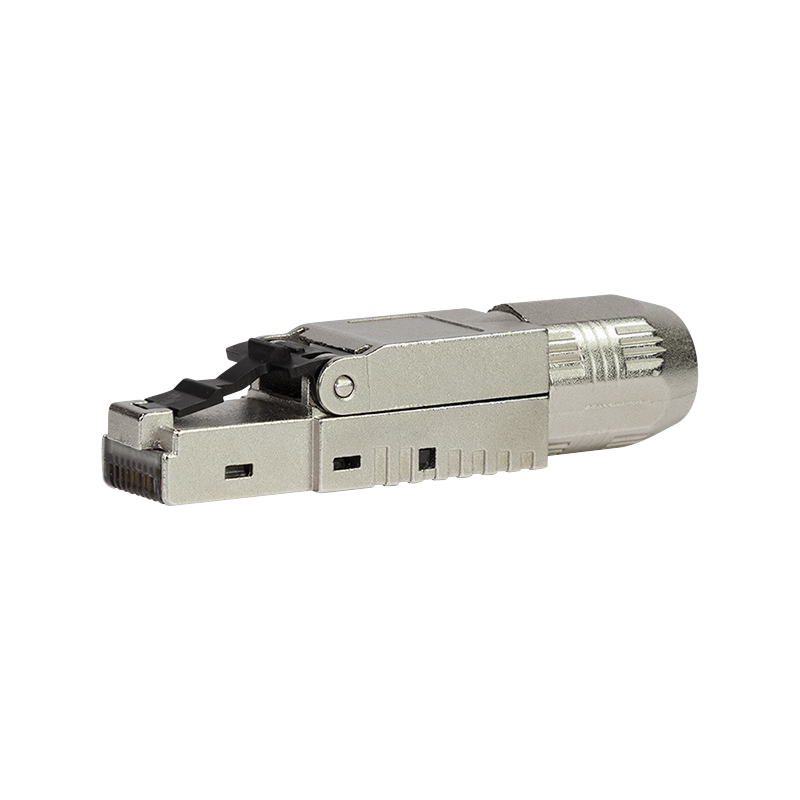

Field assembly plug, Cat.6A, shielded, MPTL tested

Brand:LogiLink

Part NoMP0040N

EAN:4052792062557

PU:500

Cat.6A Class EA Modular Plug Terminated Link (MPTL)
Comply with ISO/IEC11801, TIA568-C.2, TIA568.2-D
Fully shielded zinc diecast housing, screw type
Contact pins with phosphor bronze alloy, gold plated
For solid wire: 22/1 to 26/1 AWG
For stranded wire: 23/7 to 27/7 AWG
Suitable for outer dimension of round cable: 5–8.5 mm

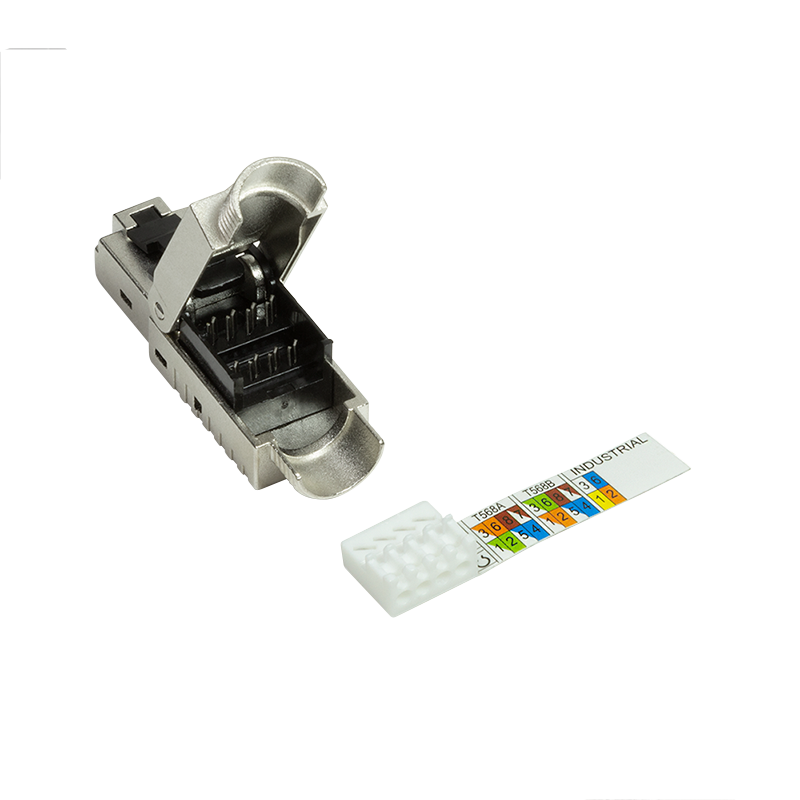

Wiring code: T568A, T568B or PROFINET
Suitable for PoE, PoE+, PoE++ and HDBaseT
Suitable for insulated wire with 1.1–1.6 OD

Description

MP0040N

MP0040N — The LogiLink field termination plug is perfectly suited for 10 Gigabit networks. Installation is done quick and easily without special tools.

This high-quality connector ensures high quality, consistent, reliable terminations and meets the current standards. It is the perfect solution for a high-performance link.

Applications

For solid wire: 22/1 to 26/1 AWG. For stranded wire: 23/7 to 27/7 AWG.
