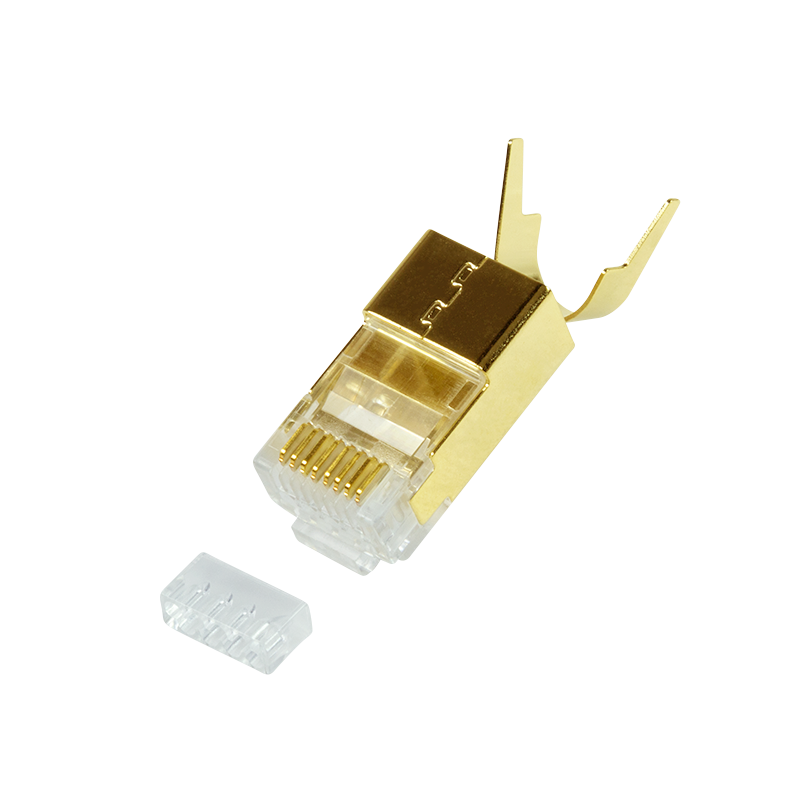

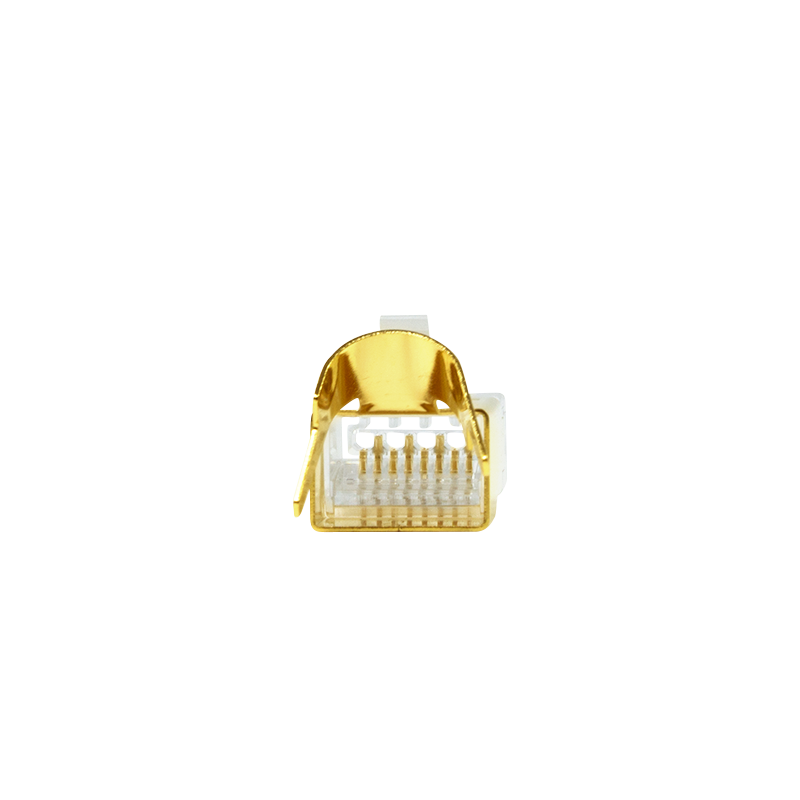

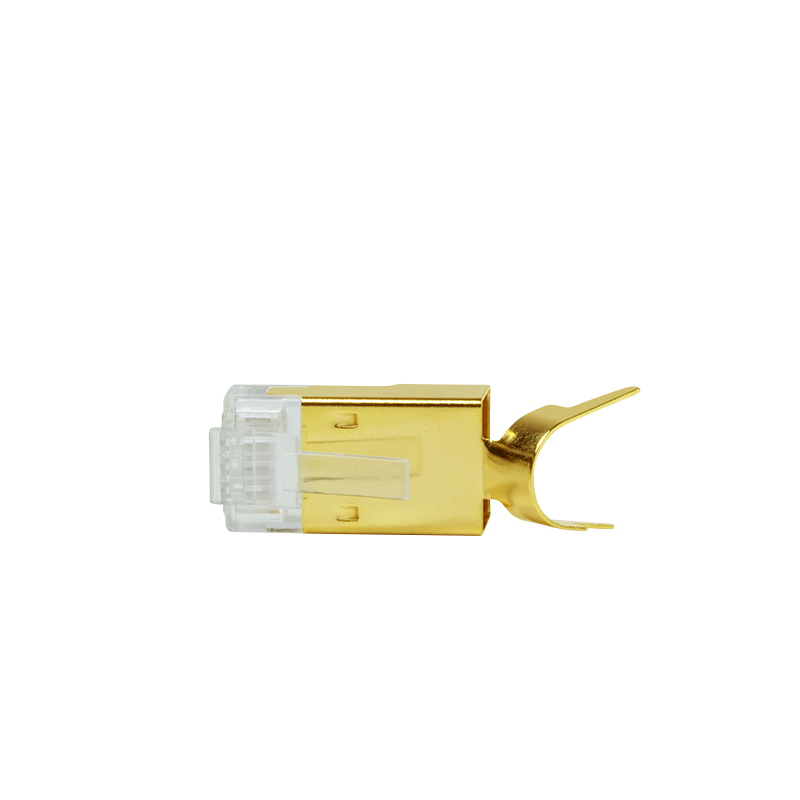

RJ45 modular plug, Cat.8.1/Cat.6A, shielded, gold-plated, 10 pcs.
Brand:LogiLink
Part NoMP0048
EAN:4052792057560
PU:500
- RJ45 plug for Cat6A, Cat7, Cat7A & Cat.8.1 cable, shielded
- Brass gold plated housing, gold plated pins, 50µin
- Suitable for solid or stranded copper wire
- For 22 - 24AWG wire (1,2 – 1,45 mm with insulation)
- Outer cable jacket OD max. 8 mm
- Set with 10pcs. incl. plug and guide plate
- Strain Relief Boot: MP0034 + MP0035
- Proper Tools: WZ0029 + WZ0032 (or similar)
- Suitable strain relief boot: MP0034, MP0035
- Compliant to UL1863 standard
MP0048
MP0048 — LogiLink’s shielded RJ45 plug for data transfer up 10 Gbps is suitable for stranded and solid Cat.6A, Cat.7, Cat.7A and Cat.8.1 cable. It includes strain relief clamp and a wire guide plate for easy wire installing. The right tools for this plug are LogiLink's WZ0029 or WZ0039 professional crimping pliers.
Applications
Suitable for solid or stranded copper wire. For 22 - 24AWG wire (1,2 – 1,45 mm with insulation).
